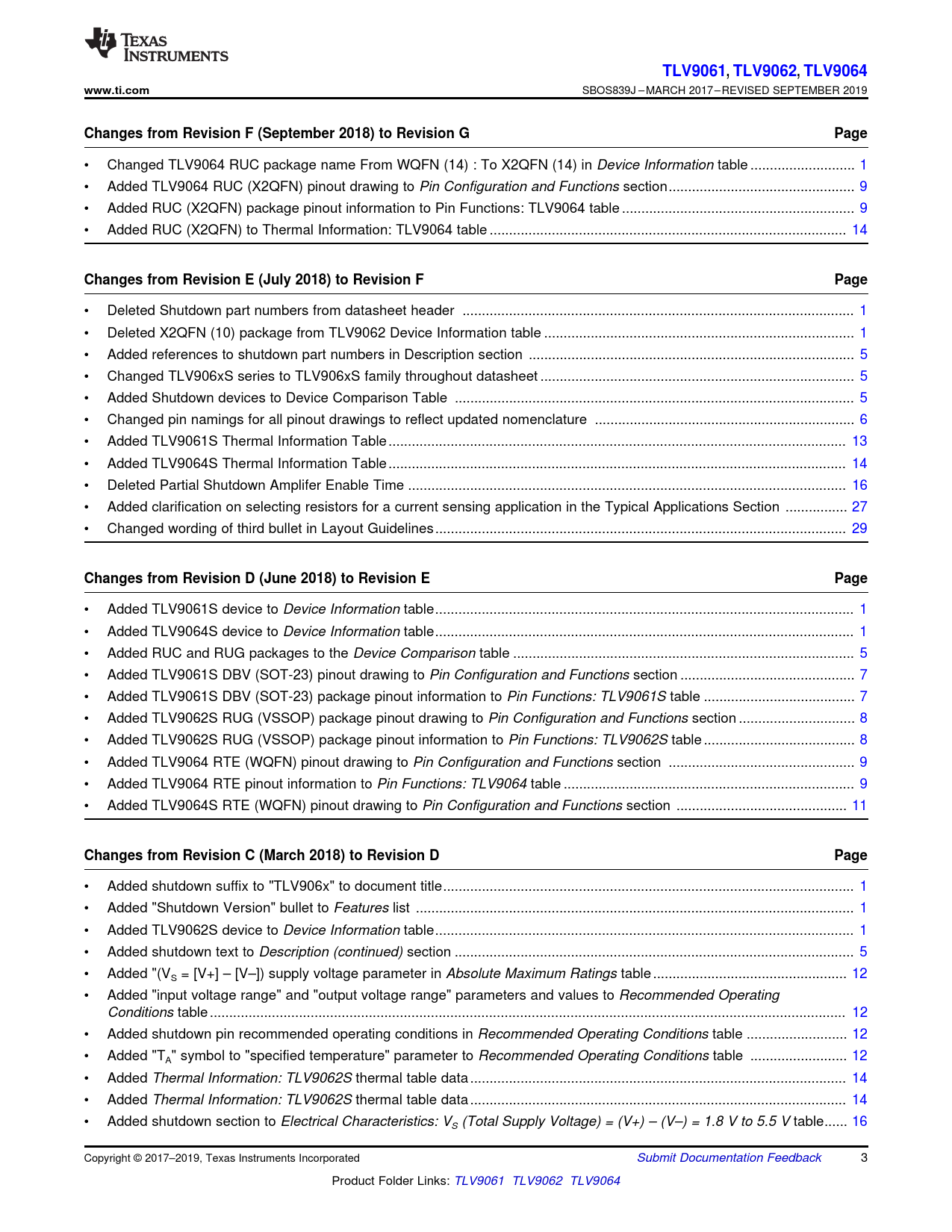

TLV9061, TLV9062, TLV9064 www.ti.com
SBOS839J – MARCH 2017 – REVISED SEPTEMBER 2019
Changes from Revision F (September 2018) to Revision G Page
• Changed TLV9064 RUC package name From WQFN (14) : To X2QFN (14) in Device Information table ... 1 • Added TLV9064 RUC (X2QFN) pinout drawing to Pin Configuration and Functions section.. 9 • Added RUC (X2QFN) package pinout information to Pin Functions: TLV9064 table .. 9 • Added RUC (X2QFN) to Thermal Information: TLV9064 table .. 14
Changes from Revision E (July 2018) to Revision F Page
• Deleted Shutdown part numbers from datasheet header ... 1 • Deleted X2QFN (10) package from TLV9062 Device Information table .. 1 • Added references to shutdown part numbers in Description section .. 5 • Changed TLV906xS series to TLV906xS family throughout datasheet ... 5 • Added Shutdown devices to Device Comparison Table ... 5 • Changed pin namings for all pinout drawings to reflect updated nomenclature ... 6 • Added TLV9061S Thermal Information Table .. 13 • Added TLV9064S Thermal Information Table .. 14 • Deleted Partial Shutdown Amplifer Enable Time ... 16 • Added clarification on selecting resistors for a current sensing application in the Typical Applications Section .. 27 • Changed wording of third bullet in Layout Guidelines .. 29
Changes from Revision D (June 2018) to Revision E Page
• Added TLV9061S device to Device Information table.. 1 • Added TLV9064S device to Device Information table.. 1 • Added RUC and RUG packages to the Device Comparison table .. 5 • Added TLV9061S DBV (SOT-23) pinout drawing to Pin Configuration and Functions section ... 7 • Added TLV9061S DBV (SOT-23) package pinout information to Pin Functions: TLV9061S table ... 7 • Added TLV9062S RUG (VSSOP) package pinout drawing to Pin Configuration and Functions section .. 8 • Added TLV9062S RUG (VSSOP) package pinout information to Pin Functions: TLV9062S table ... 8 • Added TLV9064 RTE (WQFN) pinout drawing to Pin Configuration and Functions section .. 9 • Added TLV9064 RTE pinout information to Pin Functions: TLV9064 table ... 9 • Added TLV9064S RTE (WQFN) pinout drawing to Pin Configuration and Functions section .. 11
Changes from Revision C (March 2018) to Revision D Page
• Added shutdown suffix to "TLV906x" to document title.. 1 • Added "Shutdown Version" bullet to Features list ... 1 • Added TLV9062S device to Device Information table.. 1 • Added shutdown text to Description (continued) section ... 5 • Added "(VS = [V+] – [V–]) supply voltage parameter in Absolute Maximum Ratings table .. 12 • Added "input voltage range" and "output voltage range" parameters and values to Recommended Operating Conditions table .. 12 • Added shutdown pin recommended operating conditions in Recommended Operating Conditions table .. 12 • Added "TA" symbol to "specified temperature" parameter to Recommended Operating Conditions table ... 12 • Added Thermal Information: TLV9062S thermal table data ... 14 • Added Thermal Information: TLV9062S thermal table data ... 14 • Added shutdown section to Electrical Characteristics: VS (Total Supply Voltage) = (V+) – (V–) = 1.8 V to 5.5 V table.. 16 Copyright © 2017–2019, Texas Instruments Incorporated Submit Documentation Feedback 3 Product Folder Links: TLV9061 TLV9062 TLV9064 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Description (continued) 6 Device Comparison Table 7 Pin Configuration and Functions 8 Specifications 8.1 Absolute Maximum Ratings 8.2 ESD Ratings 8.3 Recommended Operating Conditions 8.4 Thermal Information: TLV9061 8.5 Thermal Information: TLV9061S 8.6 Thermal Information: TLV9062 8.7 Thermal Information: TLV9062S 8.8 Thermal Information: TLV9064 8.9 Thermal Information: TLV9064S 8.10 Electrical Characteristics 8.11 Typical Characteristics 9 Detailed Description 9.1 Overview 9.2 Functional Block Diagram 9.3 Feature Description 9.3.1 Rail-to-Rail Input 9.3.2 Rail-to-Rail Output 9.3.3 EMI Rejection 9.3.4 Overload Recovery 9.3.5 Shutdown Function 9.4 Device Functional Modes 10 Application and Implementation 10.1 Application Information 10.2 Typical Applications 10.2.1 Typical Low-Side Current Sense Application 10.2.1.1 Design Requirements 10.2.1.2 Detailed Design Procedure 10.2.1.3 Application Curve 11 Power Supply Recommendations 11.1 Input and ESD Protection 12 Layout 12.1 Layout Guidelines 12.2 Layout Example 13 Device and Documentation Support 13.1 Documentation Support 13.1.1 Related Documentation 13.2 Related Links 13.3 Receiving Notification of Documentation Updates 13.4 Community Resources 13.5 Trademarks 13.6 Electrostatic Discharge Caution 13.7 Glossary 14 Mechanical, Packaging, and Orderable Information
