Datasheet TLV9061, TLV9062, TLV9064 (Texas Instruments) - 5
| Hersteller | Texas Instruments |
| Beschreibung | 10-MHz, RRIO, CMOS Operational Amplifiers For Cost-Sensivite Systems |
| Seiten / Seite | 82 / 5 — TLV9061,. TLV9062,. TLV9064. www.ti.com. 5 Description (continued). 6 … |
| Dateiformat / Größe | PDF / 5.9 Mb |
| Dokumentensprache | Englisch |
TLV9061,. TLV9062,. TLV9064. www.ti.com. 5 Description (continued). 6 Device Comparison Table. PACKAGE LEADS. NO. OF. DEVICE. CHANNELS
Modelllinie für dieses Datenblatt
Textversion des Dokuments

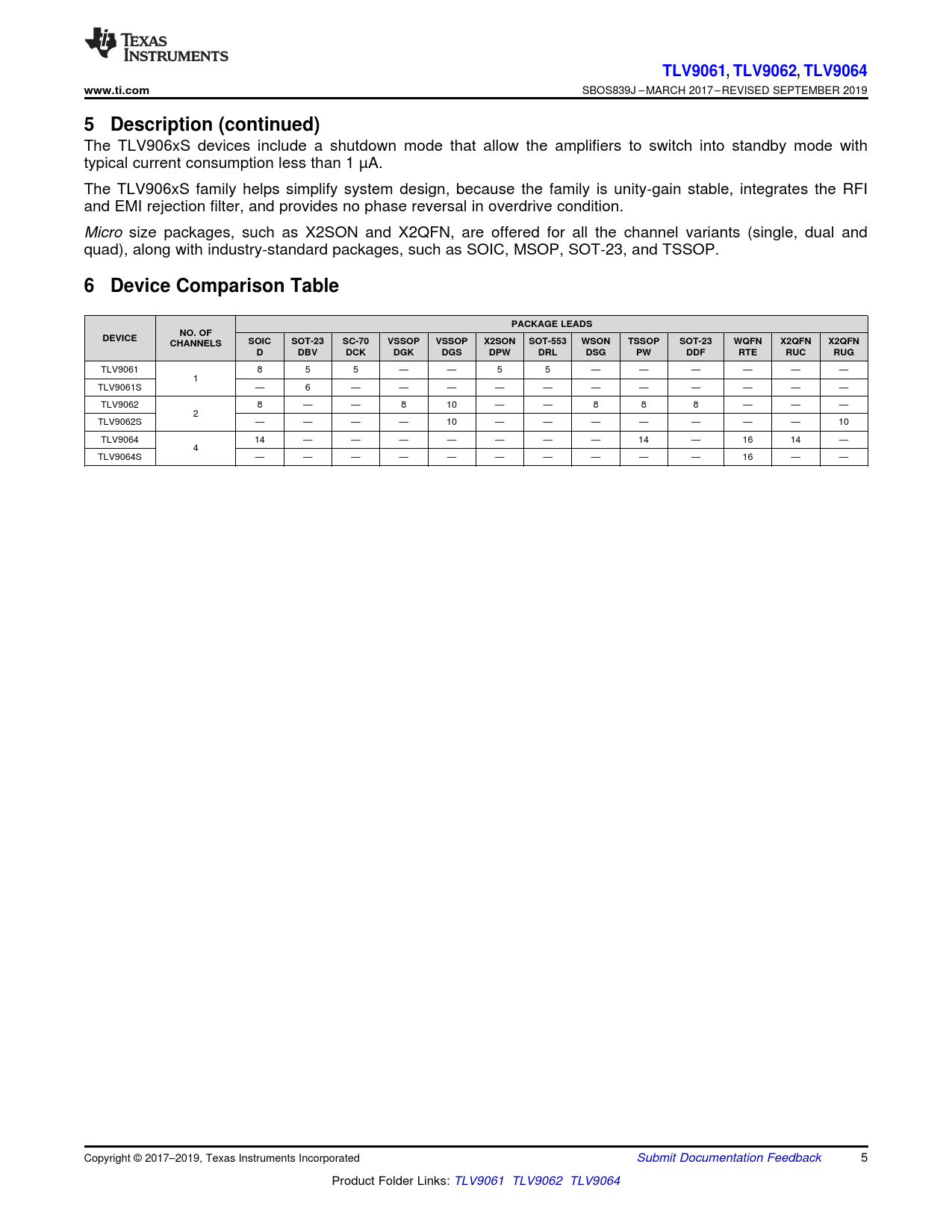

TLV9061, TLV9062, TLV9064 www.ti.com
SBOS839J – MARCH 2017 – REVISED SEPTEMBER 2019
5 Description (continued)
The TLV906xS devices include a shutdown mode that allow the amplifiers to switch into standby mode with typical current consumption less than 1 µA. The TLV906xS family helps simplify system design, because the family is unity-gain stable, integrates the RFI and EMI rejection filter, and provides no phase reversal in overdrive condition. Micro size packages, such as X2SON and X2QFN, are offered for all the channel variants (single, dual and quad), along with industry-standard packages, such as SOIC, MSOP, SOT-23, and TSSOP.
6 Device Comparison Table PACKAGE LEADS NO. OF DEVICE CHANNELS SOIC SOT-23 SC-70 VSSOP VSSOP X2SON SOT-553 WSON TSSOP SOT-23 WQFN X2QFN X2QFN D DBV DCK DGK DGS DPW DRL DSG PW DDF RTE RUC RUG
TLV9061 8 5 5 — — 5 5 — — — — — — 1 TLV9061S — 6 — — — — — — — — — — — TLV9062 8 — — 8 10 — — 8 8 8 — — — 2 TLV9062S — — — — 10 — — — — — — — 10 TLV9064 14 — — — — — — — 14 — 16 14 — 4 TLV9064S — — — — — — — — — — 16 — — Copyright © 2017–2019, Texas Instruments Incorporated Submit Documentation Feedback 5 Product Folder Links: TLV9061 TLV9062 TLV9064 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Description (continued) 6 Device Comparison Table 7 Pin Configuration and Functions 8 Specifications 8.1 Absolute Maximum Ratings 8.2 ESD Ratings 8.3 Recommended Operating Conditions 8.4 Thermal Information: TLV9061 8.5 Thermal Information: TLV9061S 8.6 Thermal Information: TLV9062 8.7 Thermal Information: TLV9062S 8.8 Thermal Information: TLV9064 8.9 Thermal Information: TLV9064S 8.10 Electrical Characteristics 8.11 Typical Characteristics 9 Detailed Description 9.1 Overview 9.2 Functional Block Diagram 9.3 Feature Description 9.3.1 Rail-to-Rail Input 9.3.2 Rail-to-Rail Output 9.3.3 EMI Rejection 9.3.4 Overload Recovery 9.3.5 Shutdown Function 9.4 Device Functional Modes 10 Application and Implementation 10.1 Application Information 10.2 Typical Applications 10.2.1 Typical Low-Side Current Sense Application 10.2.1.1 Design Requirements 10.2.1.2 Detailed Design Procedure 10.2.1.3 Application Curve 11 Power Supply Recommendations 11.1 Input and ESD Protection 12 Layout 12.1 Layout Guidelines 12.2 Layout Example 13 Device and Documentation Support 13.1 Documentation Support 13.1.1 Related Documentation 13.2 Related Links 13.3 Receiving Notification of Documentation Updates 13.4 Community Resources 13.5 Trademarks 13.6 Electrostatic Discharge Caution 13.7 Glossary 14 Mechanical, Packaging, and Orderable Information
