TLV9061,. TLV9062,. TLV9064. TLV906xS 10-MHz, RRIO, CMOS Operational Amplifiers for Cost-Sensitive Systems. 1 Features
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 31 link to page 31 link to page 31 link to page 31 link to page 31 link to page 1 link to page 1 Product Order Technical Tools & Support & Folder Now Documents Software Community
TLV9061, TLV9062, TLV9064
SBOS839J – MARCH 2017 – REVISED SEPTEMBER 2019

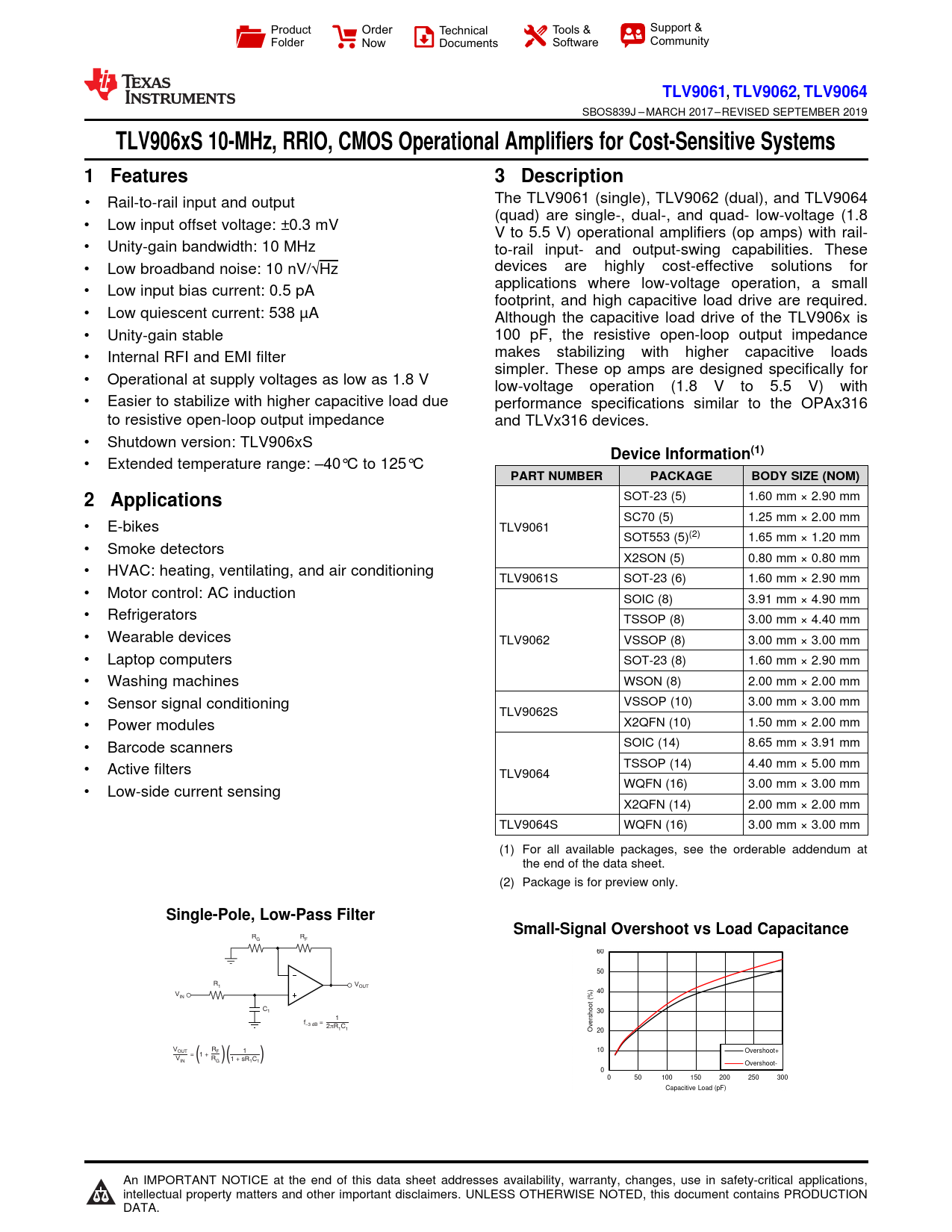

TLV906xS 10-MHz, RRIO, CMOS Operational Amplifiers for Cost-Sensitive Systems 1 Features 3 Description
• Rail-to-rail input and output The TLV9061 (single), TLV9062 (dual), and TLV9064 1 (quad) are single-, dual-, and quad- low-voltage (1.8 • Low input offset voltage: ±0.3 mV V to 5.5 V) operational amplifiers (op amps) with rail- • Unity-gain bandwidth: 10 MHz to-rail input- and output-swing capabilities. These • Low broadband noise: 10 nV/√Hz devices are highly cost-effective solutions for applications where low-voltage operation, a small • Low input bias current: 0.5 pA footprint, and high capacitive load drive are required. • Low quiescent current: 538 µA Although the capacitive load drive of the TLV906x is • Unity-gain stable 100 pF, the resistive open-loop output impedance • Internal RFI and EMI filter makes stabilizing with higher capacitive loads simpler. These op amps are designed specifically for • Operational at supply voltages as low as 1.8 V low-voltage operation (1.8 V to 5.5 V) with • Easier to stabilize with higher capacitive load due performance specifications similar to the OPAx316 to resistive open-loop output impedance and TLVx316 devices. • Shutdown version: TLV906xS
Device Information(1)
• Extended temperature range: –40°C to 125°C
PART NUMBER PACKAGE BODY SIZE (NOM) 2 Applications
SOT-23 (5) 1.60 mm × 2.90 mm SC70 (5) 1.25 mm × 2.00 mm • E-bikes TLV9061 SOT553 (5)(2) 1.65 mm × 1.20 mm • Smoke detectors X2SON (5) 0.80 mm × 0.80 mm • HVAC: heating, ventilating, and air conditioning TLV9061S SOT-23 (6) 1.60 mm × 2.90 mm • Motor control: AC induction SOIC (8) 3.91 mm × 4.90 mm • Refrigerators TSSOP (8) 3.00 mm × 4.40 mm • Wearable devices TLV9062 VSSOP (8) 3.00 mm × 3.00 mm • Laptop computers SOT-23 (8) 1.60 mm × 2.90 mm • Washing machines WSON (8) 2.00 mm × 2.00 mm • Sensor signal conditioning VSSOP (10) 3.00 mm × 3.00 mm TLV9062S • Power modules X2QFN (10) 1.50 mm × 2.00 mm • Barcode scanners SOIC (14) 8.65 mm × 3.91 mm • Active filters TSSOP (14) 4.40 mm × 5.00 mm TLV9064 WQFN (16) 3.00 mm × 3.00 mm • Low-side current sensing X2QFN (14) 2.00 mm × 2.00 mm TLV9064S WQFN (16) 3.00 mm × 3.00 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. (2) Package is for preview only.
Single-Pole, Low-Pass Filter Small-Signal Overshoot vs Load Capacitance
R R G F 60 50 R1 VOUT ) 40 VIN (% t o C o 1 30 1 rsh f = -3 dB 2pR C 1 1 Ove 20 V R OUT F 1 10 Overshoot+ = 1 + ( V R IN G 1 + sR C 1 1 Overshoot- 0 0 50 100 150 200 250 300 Capacitive Load (pF) C025 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. UNLESS OTHERWISE NOTED, this document contains PRODUCTION DATA. Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Description (continued) 6 Device Comparison Table 7 Pin Configuration and Functions 8 Specifications 8.1 Absolute Maximum Ratings 8.2 ESD Ratings 8.3 Recommended Operating Conditions 8.4 Thermal Information: TLV9061 8.5 Thermal Information: TLV9061S 8.6 Thermal Information: TLV9062 8.7 Thermal Information: TLV9062S 8.8 Thermal Information: TLV9064 8.9 Thermal Information: TLV9064S 8.10 Electrical Characteristics 8.11 Typical Characteristics 9 Detailed Description 9.1 Overview 9.2 Functional Block Diagram 9.3 Feature Description 9.3.1 Rail-to-Rail Input 9.3.2 Rail-to-Rail Output 9.3.3 EMI Rejection 9.3.4 Overload Recovery 9.3.5 Shutdown Function 9.4 Device Functional Modes 10 Application and Implementation 10.1 Application Information 10.2 Typical Applications 10.2.1 Typical Low-Side Current Sense Application 10.2.1.1 Design Requirements 10.2.1.2 Detailed Design Procedure 10.2.1.3 Application Curve 11 Power Supply Recommendations 11.1 Input and ESD Protection 12 Layout 12.1 Layout Guidelines 12.2 Layout Example 13 Device and Documentation Support 13.1 Documentation Support 13.1.1 Related Documentation 13.2 Related Links 13.3 Receiving Notification of Documentation Updates 13.4 Community Resources 13.5 Trademarks 13.6 Electrostatic Discharge Caution 13.7 Glossary 14 Mechanical, Packaging, and Orderable Information
