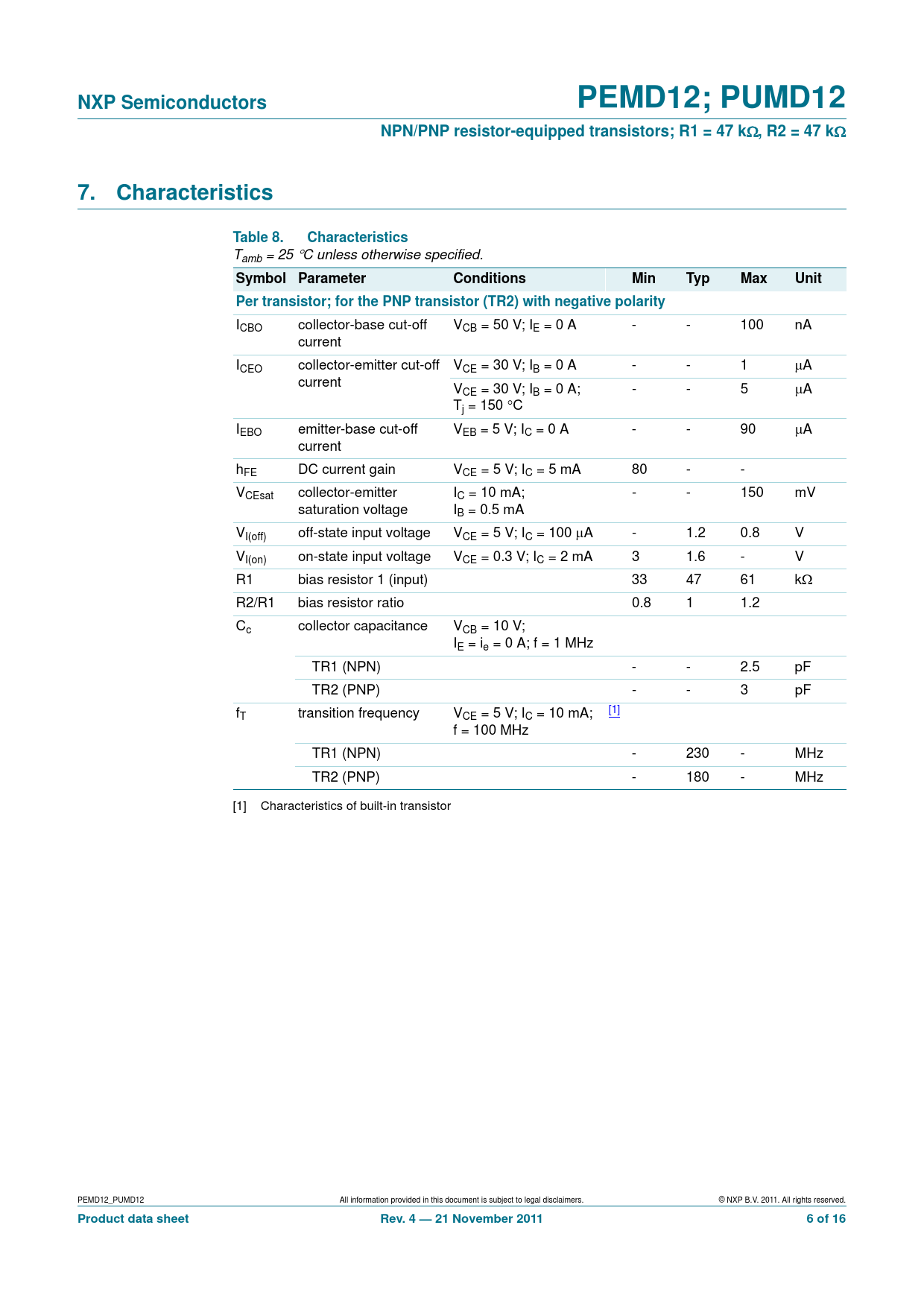

NXP Semiconductors PEMD12; PUMD12 NPN/PNP resistor-equipped transistors; R1 = 47 k , R2 = 47 k 7. Characteristics Table 8. Characteristics
Tamb = 25 C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit Per transistor; for the PNP transistor (TR2) with negative polarity
ICBO collector-base cut-off VCB = 50 V; IE = 0 A - - 100 nA current ICEO collector-emitter cut-off VCE = 30 V; IB = 0 A - - 1 A current VCE = 30 V; IB = 0 A; - - 5 A Tj = 150 C IEBO emitter-base cut-off VEB = 5 V; IC = 0 A - - 90 A current hFE DC current gain VCE = 5 V; IC = 5 mA 80 - - VCEsat collector-emitter IC = 10 mA; - - 150 mV saturation voltage IB = 0.5 mA VI(off) off-state input voltage VCE = 5 V; IC = 100 A - 1.2 0.8 V VI(on) on-state input voltage VCE = 0.3 V; IC = 2 mA 3 1.6 - V R1 bias resistor 1 (input) 33 47 61 k R2/R1 bias resistor ratio 0.8 1 1.2 Cc collector capacitance VCB = 10 V; IE = ie = 0 A; f = 1 MHz TR1 (NPN) - - 2.5 pF TR2 (PNP) - - 3 pF f [1] T transition frequency VCE = 5 V; IC = 10 mA; f = 100 MHz TR1 (NPN) - 230 - MHz TR2 (PNP) - 180 - MHz [1] Characteristics of built-in transistor PEMD12_PUMD12 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2011. All rights reserved.
Product data sheet Rev. 4 — 21 November 2011 6 of 16
