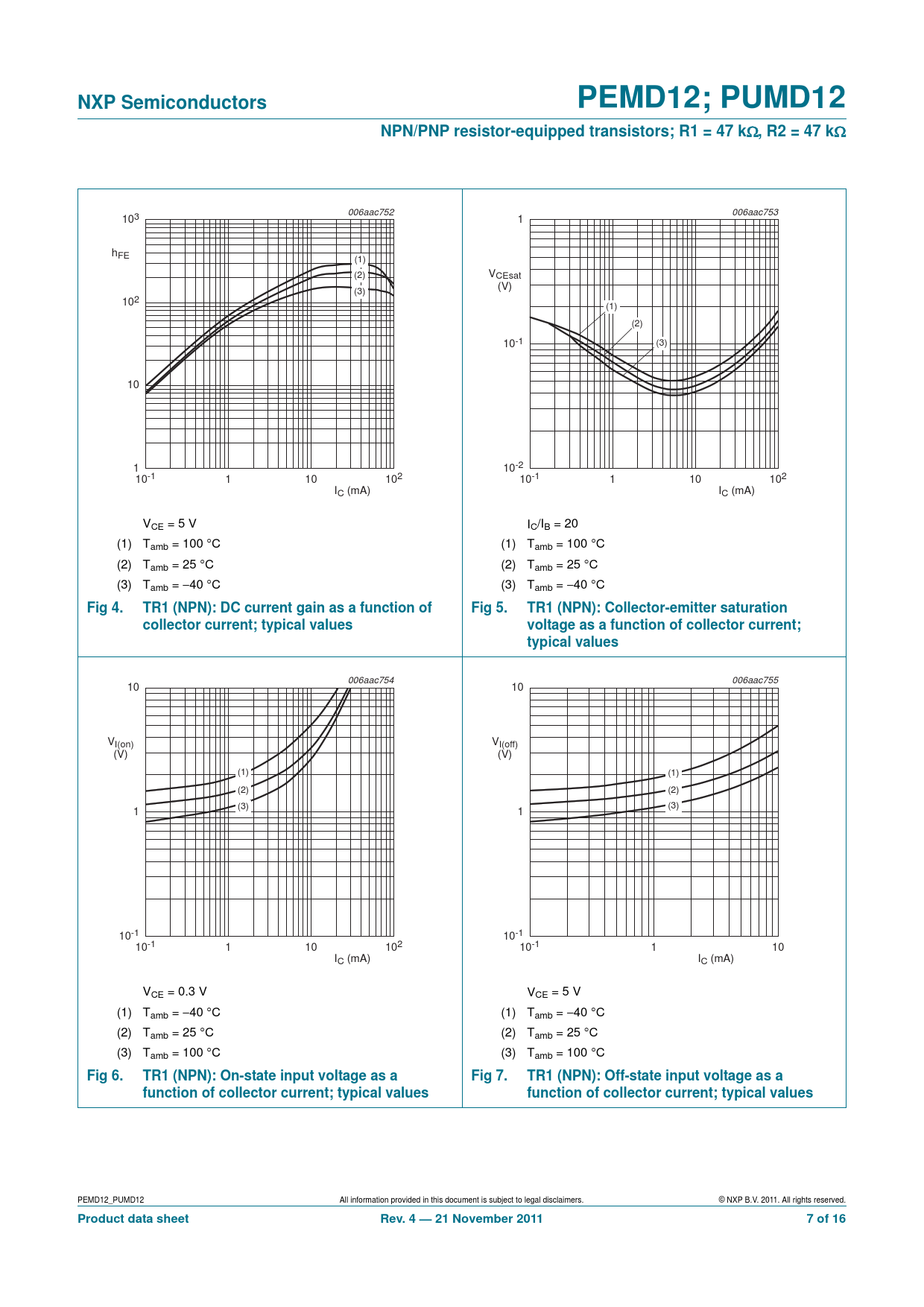

NXP Semiconductors PEMD12; PUMD12 NPN/PNP resistor-equipped transistors; R1 = 47 k , R2 = 47 k
006aac752 006aac753 103 1 hFE (1) (2) VCEsat (V) (3) 102 (1) (2) 10-1 (3) 10 1 10-2 10-1 1 102 10 10-1 1 102 10 IC (mA) IC (mA) VCE = 5 V IC/IB = 20 (1) Tamb = 100 C (1) Tamb = 100 C (2) Tamb = 25 C (2) Tamb = 25 C (3) Tamb = 40 C (3) Tamb = 40 C
Fig 4. TR1 (NPN): DC current gain as a function of Fig 5. TR1 (NPN): Collector-emitter saturation collector current; typical values voltage as a function of collector current; typical values
006aac754 006aac755 10 10 VI(on) VI(off) (V) (V) (1) (1) (2) (2) (3) (3) 1 1 10-1 10-1 10-1 1 102 10 10-1 1 10 IC (mA) IC (mA) VCE = 0.3 V VCE = 5 V (1) Tamb = 40 C (1) Tamb = 40 C (2) Tamb = 25 C (2) Tamb = 25 C (3) Tamb = 100 C (3) Tamb = 100 C
Fig 6. TR1 (NPN): On-state input voltage as a Fig 7. TR1 (NPN): Off-state input voltage as a function of collector current; typical values function of collector current; typical values
