NXP Semiconductors PEMD12; PUMD12 NPN/PNP resistor-equipped transistors; R1 = 47 k , R2 = 47 k

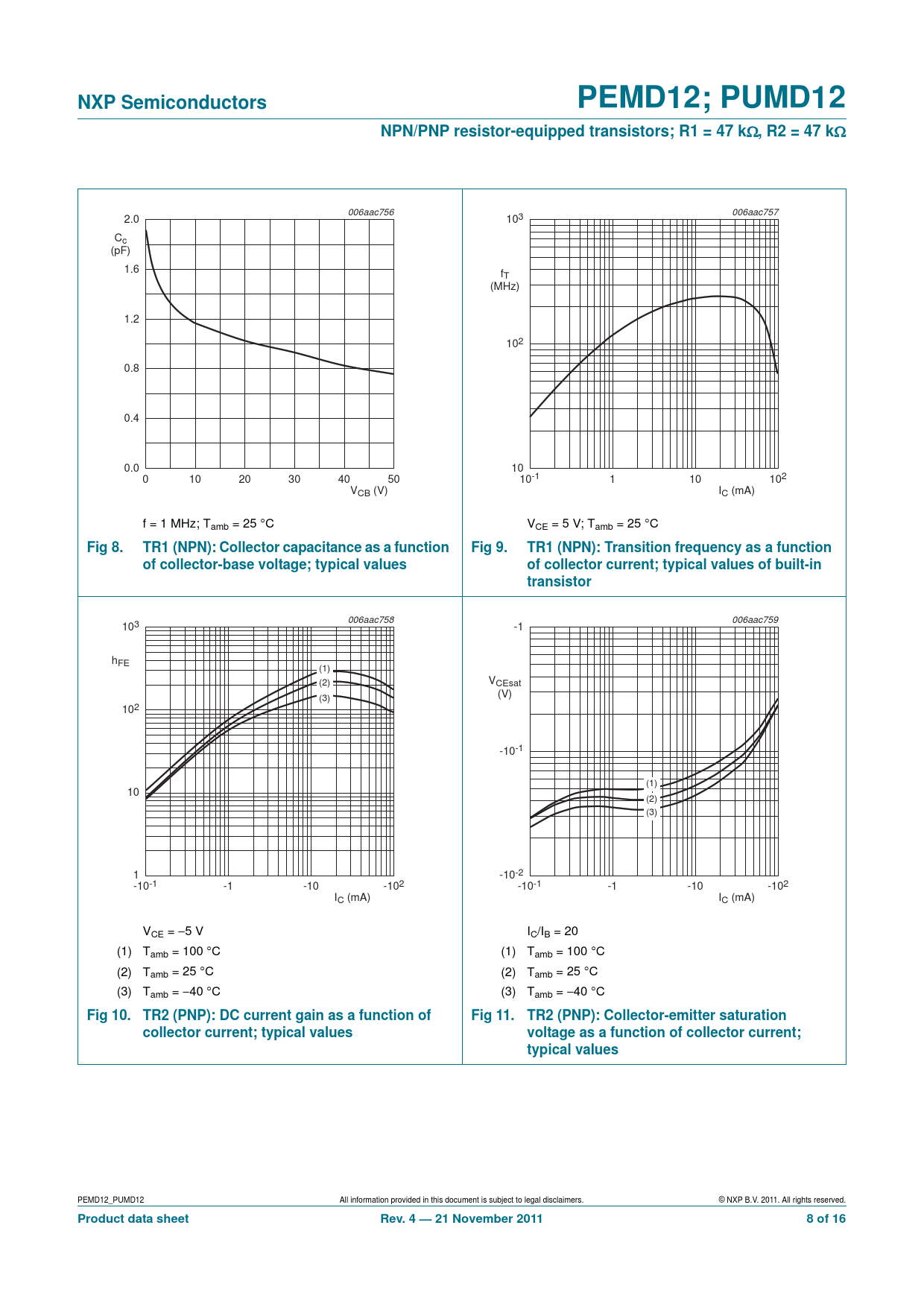

006aac756 006aac757 2.0 103 Cc (pF) 1.6 fT (MHz) 1.2 102 0.8 0.4 0.0 10 0 10 20 30 40 50 10-1 1 102 10 VCB (V) IC (mA) f = 1 MHz; Tamb = 25 C VCE = 5 V; Tamb = 25 C
Fig 8. TR1 (NPN): Collector capacitance as a function Fig 9. TR1 (NPN): Transition frequency as a function of collector-base voltage; typical values of collector current; typical values of built-in transistor
006aac758 006aac759 103 -1 hFE (1) (2) VCEsat (3) (V) 102 -10-1 (1) 10 (2) (3) 1 -10-2 -10-1 -1 -102 -10 -10-1 -1 -102 -10 IC (mA) IC (mA) VCE = 5 V IC/IB = 20 (1) Tamb = 100 C (1) Tamb = 100 C (2) Tamb = 25 C (2) Tamb = 25 C (3) Tamb = 40 C (3) Tamb = 40 C
Fig 10. TR2 (PNP): DC current gain as a function of Fig 11. TR2 (PNP): Collector-emitter saturation collector current; typical values voltage as a function of collector current; typical values
