Application Note 826. RECOMMENDED MINIMUM PADS FOR DPAK (TO-252)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Application Note 826
Vishay Siliconix
RECOMMENDED MINIMUM PADS FOR DPAK (TO-252)

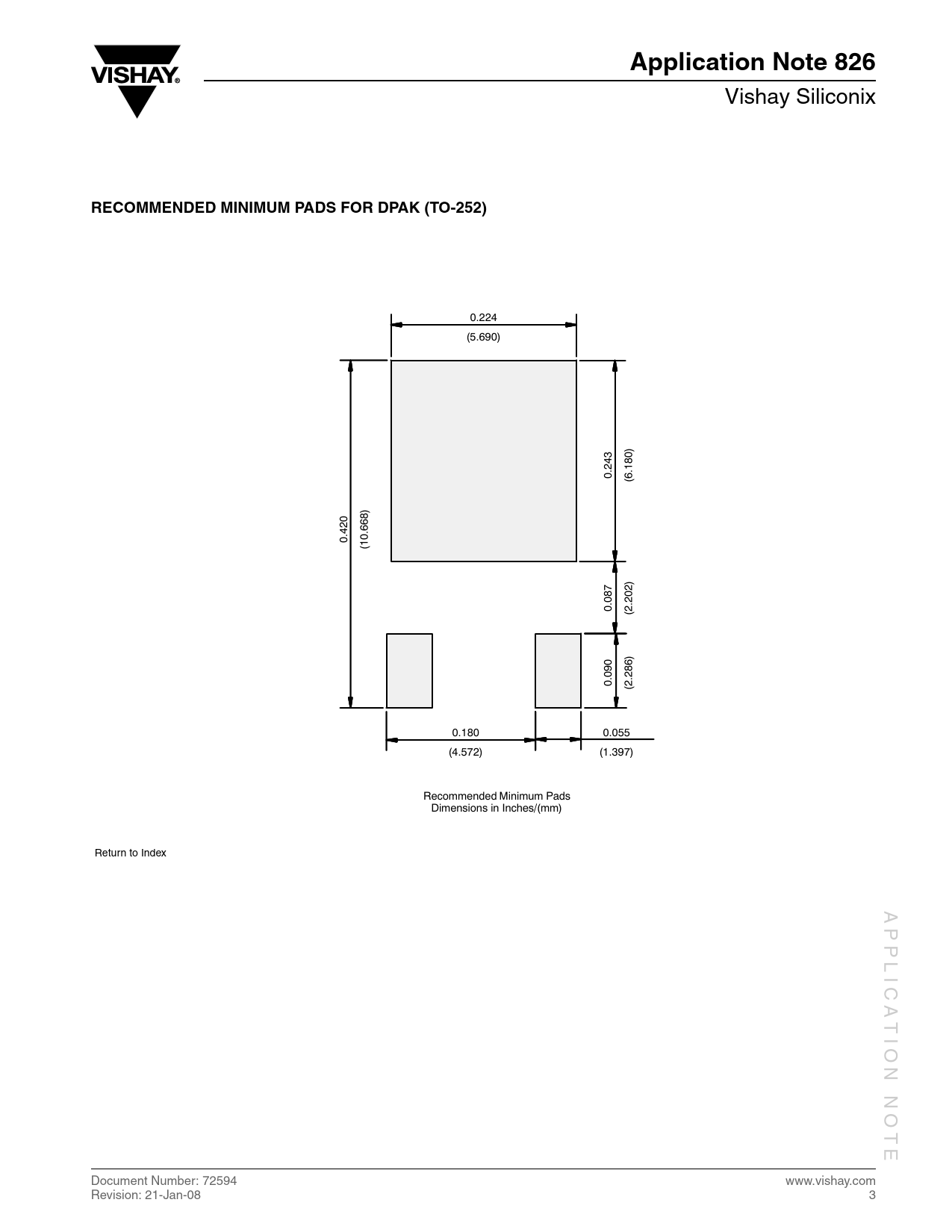

0.224 (5.690) 0.243 (6.180) 0.420 (10.668) 0.087 (2.202) 0.090 (2.286) 0.180 0.055 (4.572) (1.397) Recommended Minimum Pads Dimensions in Inches/(mm) Return to Index Return to Index APPLICATION NOTE Document Number: 72594 www.vishay.com Revision: 21-Jan-08 3
Vishay Siliconix
RECOMMENDED MINIMUM PADS FOR DPAK (TO-252)
0.224 (5.690) 0.243 (6.180) 0.420 (10.668) 0.087 (2.202) 0.090 (2.286) 0.180 0.055 (4.572) (1.397) Recommended Minimum Pads Dimensions in Inches/(mm) Return to Index Return to Index APPLICATION NOTE Document Number: 72594 www.vishay.com Revision: 21-Jan-08 3
