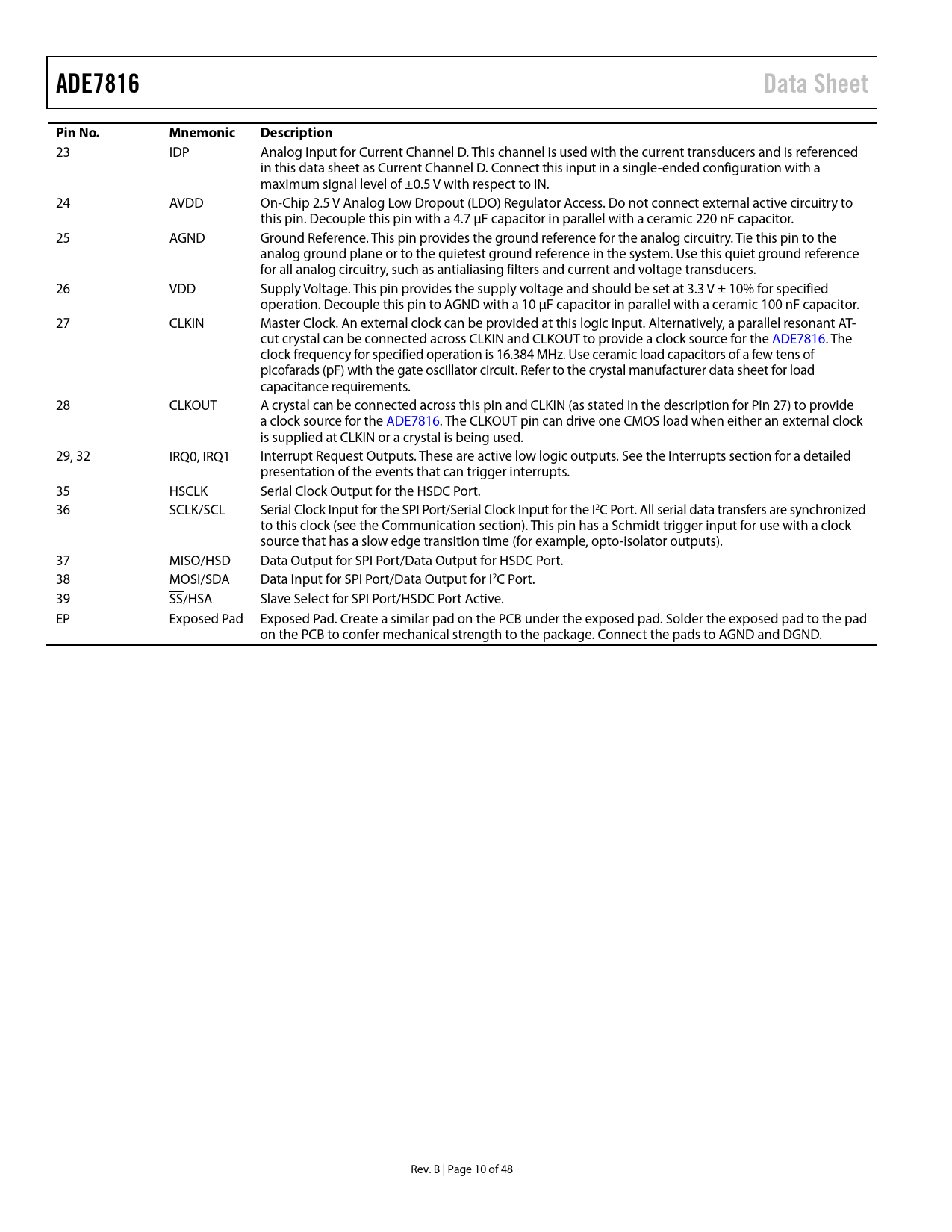

ADE7816 Data Sheet Pin No. Mnemonic Description
23 IDP Analog Input for Current Channel D. This channel is used with the current transducers and is referenced in this data sheet as Current Channel D. Connect this input in a single-ended configuration with a maximum signal level of ±0.5 V with respect to IN. 24 AVDD On-Chip 2.5 V Analog Low Dropout (LDO) Regulator Access. Do not connect external active circuitry to this pin. Decouple this pin with a 4.7 µF capacitor in parallel with a ceramic 220 nF capacitor. 25 AGND Ground Reference. This pin provides the ground reference for the analog circuitry. Tie this pin to the analog ground plane or to the quietest ground reference in the system. Use this quiet ground reference for all analog circuitry, such as antialiasing filters and current and voltage transducers. 26 VDD Supply Voltage. This pin provides the supply voltage and should be set at 3.3 V ± 10% for specified operation. Decouple this pin to AGND with a 10 µF capacitor in parallel with a ceramic 100 nF capacitor. 27 CLKIN Master Clock. An external clock can be provided at this logic input. Alternatively, a parallel resonant AT- cut crystal can be connected across CLKIN and CLKOUT to provide a clock source for the ADE7816. The clock frequency for specified operation is 16.384 MHz. Use ceramic load capacitors of a few tens of picofarads (pF) with the gate oscil ator circuit. Refer to the crystal manufacturer data sheet for load capacitance requirements. 28 CLKOUT A crystal can be connected across this pin and CLKIN (as stated in the description for Pin 27) to provide a clock source for the ADE7816. The CLKOUT pin can drive one CMOS load when either an external clock is supplied at CLKIN or a crystal is being used. 29, 32 IRQ0, IRQ1 Interrupt Request Outputs. These are active low logic outputs. See the Interrupts section for a detailed presentation of the events that can trigger interrupts. 35 HSCLK Serial Clock Output for the HSDC Port. 36 SCLK/SCL Serial Clock Input for the SPI Port/Serial Clock Input for the I2C Port. All serial data transfers are synchronized to this clock (see the Communication section). This pin has a Schmidt trigger input for use with a clock source that has a slow edge transition time (for example, opto-isolator outputs). 37 MISO/HSD Data Output for SPI Port/Data Output for HSDC Port. 38 MOSI/SDA Data Input for SPI Port/Data Output for I2C Port. 39 SS/HSA Slave Select for SPI Port/HSDC Port Active. EP Exposed Pad Exposed Pad. Create a similar pad on the PCB under the exposed pad. Solder the exposed pad to the pad on the PCB to confer mechanical strength to the package. Connect the pads to AGND and DGND. Rev. B | Page 10 of 48 Document Outline Features General Description Functional Block Diagram Revision History Specifications Timing Characteristics I2C-Compatible Interface Timing SPI Interface Timing HSDC Interface Timing Load Circuit for All Timing Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuit Terminology Quick Start Inputs Power and Ground VDD and AGND, DGND Reference Circuit REFIN/OUT Reset Hardware Reset Software Reset Functionality CLKIN and CLKOUT Analog Inputs Input Pins PGA Gain Digital Integrator Antialiasing Filters Energy Measurements Starting and Stopping the DSP Active Energy Measurement Definition of Active Power and Active Energy Active Energy Registers Active Energy Threshold Energy Accumulation and Register Roll-Over Reactive Energy Measurement Definition of Reactive Power and Reactive Energy Reactive Energy Registers Reactive Energy Threshold Reactive Energy Accumulation and Register Roll-Over Line Cycle Accumulation Mode Root Mean Square Measurement No Load Detection Setting the No Load Thresholds No Load Interrupt Energy Calibration Channel Matching Energy Gain Calibration Energy Offset Calibration Energy Phase Calibration RMS Offset Calibration Power Quality Features Selecting a Current Channel Group Instantaneous Waveforms Zero-Crossing Detection Zero-Crossing Detection Zero-Crossing Timeout Peak Detection Setting the PEAKCYC Register Overcurrent and Overvoltage Detection Setting the OVLVL and OILVL Registers Overvoltage and Overcurrent Interrupts Indication of Power Direction Angle Measurements Period Measurement Voltage Sag Detection Setting the SAGCYC Register Setting the SAGLVL Register Voltage Sag Interrupt Checksum Layout Guidelines Crystal Circuit Outputs Interrupts Communication Serial Interface Selection I2C-Compatible Interface I2C Write Operation I2C Read Operation SPI-Compatible Interface SPI Read Operation SPI Write Operation HSDC Interface Registers Register Protection Register Format Register Maps Register Descriptions Interrupt Enable and Interrupt Status Registers Outline Dimensions Ordering Guide
