Datasheet 2N7000 (Microchip) - 5
| Hersteller | Microchip |
| Beschreibung | N-Channel Enhancement-Mode Vertical DMOS FET |
| Seiten / Seite | 5 / 5 — 2N7000. 3-Lead TO-92 Package Outline (N3). 1 2 3. Front View. Side View. … |
| Revision | 09-10-2008 |
| Dateiformat / Größe | PDF / 645 Kb |
| Dokumentensprache | Englisch |
2N7000. 3-Lead TO-92 Package Outline (N3). 1 2 3. Front View. Side View. Bottom View. Symbol. Drawings not to scale. Supertex Doc.#:
Modelllinie für dieses Datenblatt
Textversion des Dokuments

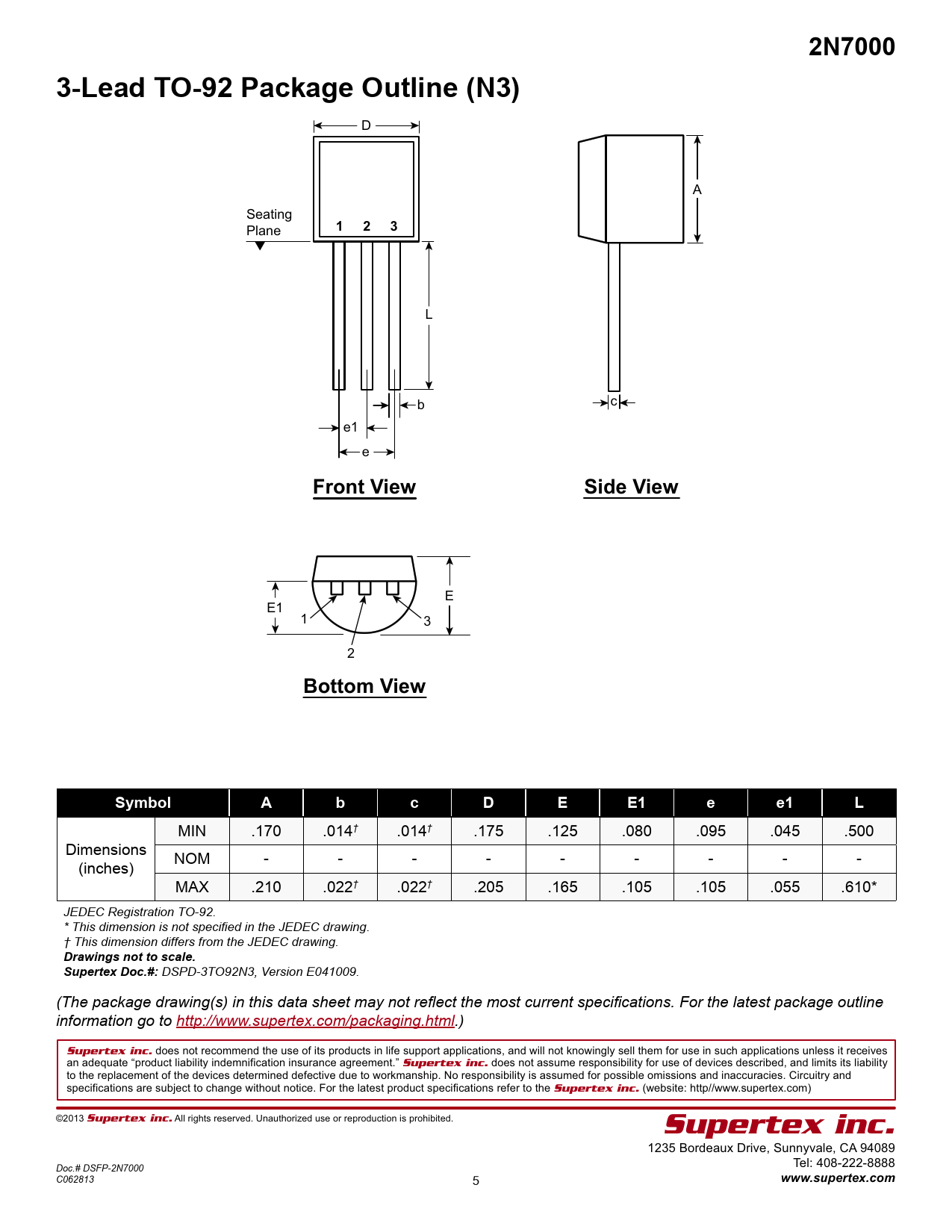

2N7000 3-Lead TO-92 Package Outline (N3)
D A Seating Plane
1 2 3
L c b e1 e
Front View Side View
E E1 1 3 2
Bottom View Symbol A b c D E E1 e e1 L
MIN .170 .014† .014† .175 .125 .080 .095 .045 .500 Dimensions (inches) NOM - - - - - - - - - MAX .210 .022† .022† .205 .165 .105 .105 .055 .610* JEDEC Registration TO-92. * This dimension is not specified in the JEDEC drawing. † This dimension differs from the JEDEC drawing.
Drawings not to scale. Supertex Doc.#:
DSPD-3TO92N3, Version E041009. (The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information go to http://www.supertex.com/packaging.html.)
Supertex inc.
does not recommend the use of its products in life support applications, and will not knowingly sell them for use in such applications unless it receives an adequate “product liability indemnification insurance agreement.”
Supertex inc.
does not assume responsibility for use of devices described, and limits its liability to the replacement of the devices determined defective due to workmanship. No responsibility is assumed for possible omissions and inaccuracies. Circuitry and specifications are subject to change without notice. For the latest product specifications refer to the
Supertex inc.
(website: http//www.supertex.com) ©2013
Supertex inc.
All rights reserved. Unauthorized use or reproduction is prohibited.
Supertex inc.
1235 Bordeaux Drive, Sunnyvale, CA 94089 Tel: 408-222-8888 Doc.# DSFP-2N7000 C062813 5
www.supertex.com
