Datasheet AD7195 (Analog Devices) - 8
| Hersteller | Analog Devices |
| Beschreibung | 4.8 kHz, Ultralow Noise, 24-Bit Sigma-Delta ADC with PGA and AC Excitation |
| Seiten / Seite | 45 / 8 — Data Sheet. AD7195. Circuit and Timing Diagram. ISINK (1.6mA WITH DVDD = … |
| Revision | A |
| Dateiformat / Größe | PDF / 1.0 Mb |
| Dokumentensprache | Englisch |

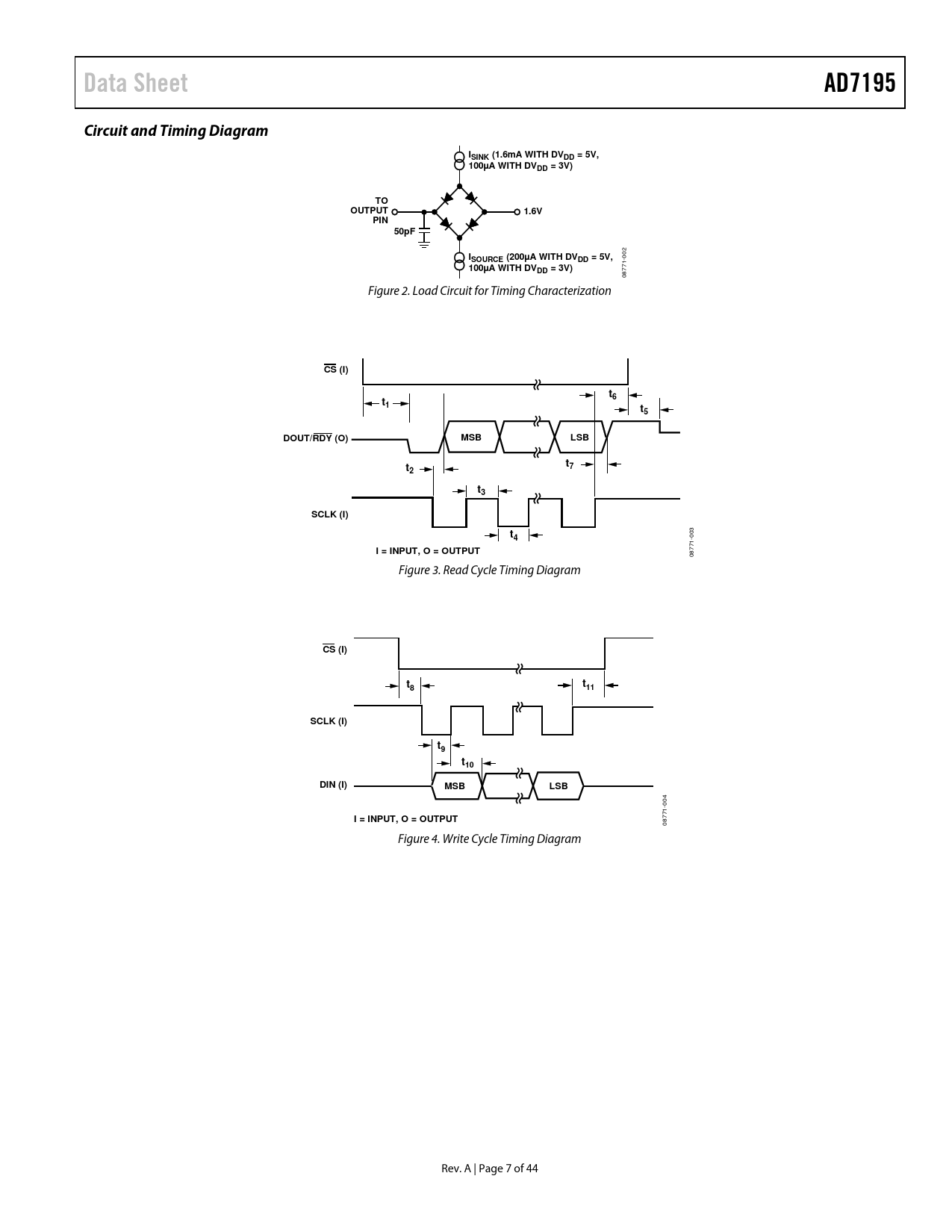

Data Sheet. AD7195. Circuit and Timing Diagram. ISINK (1.6mA WITH DVDD = 5V, 100µA WITH DVDD = 3V). OUTPUT. 1.6V. PIN. 50pF
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Data Sheet AD7195 Circuit and Timing Diagram ISINK (1.6mA WITH DVDD = 5V, 100µA WITH DVDD = 3V) TO OUTPUT 1.6V PIN 50pF ISOURCE (200µA WITH DVDD = 5V,
002
100µA WITH DVDD = 3V)
08771- Figure 2. Load Circuit for Timing Characterization
CS (I) t6 t1 t5 DOUT/RDY (O) MSB LSB t t7 2 t3 SCLK (I) t4
003
I = INPUT, O = OUTPUT
08771- Figure 3. Read Cycle Timing Diagram
CS (I) t t 8 11 SCLK (I) t9 t10 DIN (I) MSB LSB
004
I = INPUT, O = OUTPUT
08771- Figure 4. Write Cycle Timing Diagram Rev. A | Page 7 of 44 Document Outline FEATURES INTERFACE APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING CHARACTERISTICS Circuit and Timing Diagram ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS RMS NOISE AND RESOLUTION SINC4 CHOP DISABLED SINC3 CHOP DISABLED SINC4 CHOP ENABLED SINC3 CHOP ENABLED ON-CHIP REGISTERS COMMUNICATIONS REGISTER STATUS REGISTER MODE REGISTER CONFIGURATION REGISTER DATA REGISTER ID REGISTER GPOCON REGISTER OFFSET REGISTER FULL-SCALE REGISTER ADC CIRCUIT INFORMATION OVERVIEW Analog Inputs Multiplexer PGA Reference Detect Burnout Currents Σ-Δ ADC and Filter AC Excitation Serial Interface Clock Temperature Sensor Calibration ANALOG INPUT CHANNEL PGA REFERENCE REFERENCE DETECT BIPOLAR/UNIPOLAR CONFIGURATION DATA OUTPUT CODING BURNOUT CURRENTS AC EXCITATION CHANNEL SEQUENCER Single Conversion Mode Continuous Conversion Mode Continuous Read RESET SYSTEM SYNCHRONIZATION CLOCK ENABLE PARITY TEMPERATURE SENSOR BRIDGE POWER-DOWN SWITCH CALIBRATION DIGITAL FILTER SINC4 FILTER (CHOP DISABLED) Sinc4 Output Data Rate/Settling Time Sinc4 Zero Latency Sinc4 50 Hz/60 Hz Rejection SINC3 FILTER (CHOP DISABLED) Sinc3 Output Data Rate and Settling Time Sinc3 Zero Latency Sinc3 50 Hz/60 Hz Rejection CHOP ENABLED (SINC4 FILTER) Output Data Rate and Settling Time (Sinc4 Chop Enabled) 50 Hz/60 Hz Rejection (Sinc4 Chop Enabled) CHOP ENABLED (SINC3 FILTER) Output Data Rate and Settling Time (Sinc3 Chop Enabled) 50 Hz/60 Hz Rejection (Sinc3 Chop Enabled) SUMMARY OF FILTER OPTIONS GROUNDING AND LAYOUT APPLICATIONS INFORMATION WEIGH SCALES OUTLINE DIMENSIONS ORDERING GUIDE
