EPC2103 – Enhancement-Mode GaN Power Transistor Half Bridge. Preliminary Specification Sheet. DIE MARKINGS. DIE OUTLINE
Modelllinie für dieses Datenblatt
EPC2103
Textversion des Dokuments

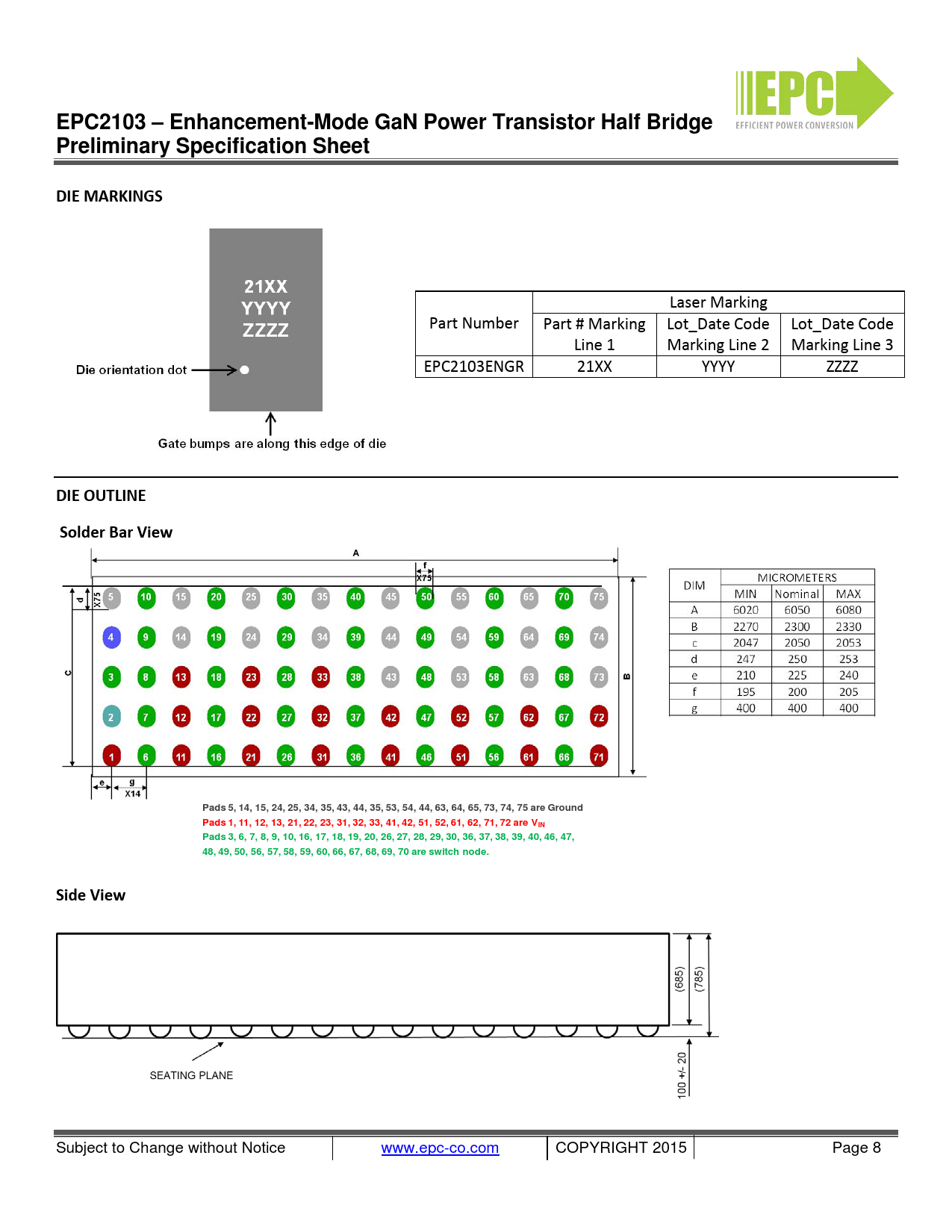

EPC2103 – Enhancement-Mode GaN Power Transistor Half Bridge Preliminary Specification Sheet DIE MARKINGS
Laser Marking Part Number Part # Marking Lot_Date Code Lot_Date Code Line 1 Marking Line 2 Marking Line 3 EPC2103ENGR 21XX YYYY ZZZZ
DIE OUTLINE Solder Bar View Pad 2 is Gate1 ( high side); Pad 4 is Gate2 ( low side); Pad 3 is HS Gate Return; Pads 5, 14, 15, 24, 25, 34, 35, 43, 44, 35, 53, 54, 44, 63, 64, 65, 73, 74, 75 are Ground Pads 1, 11, 12, 13, 21, 22, 23, 31, 32, 33, 41, 42, 51, 52, 61, 62, 71, 72 are VIN Pads 3, 6, 7, 8, 9, 10, 16, 17, 18, 19, 20, 26, 27, 28, 29, 30, 36, 37, 38, 39, 40, 46, 47, 48, 49, 50, 56, 57, 58, 59, 60, 66, 67, 68, 69, 70 are switch node. Side View
Subject to Change without Notice www.epc-co.com COPYRIGHT 2015 Page 8
