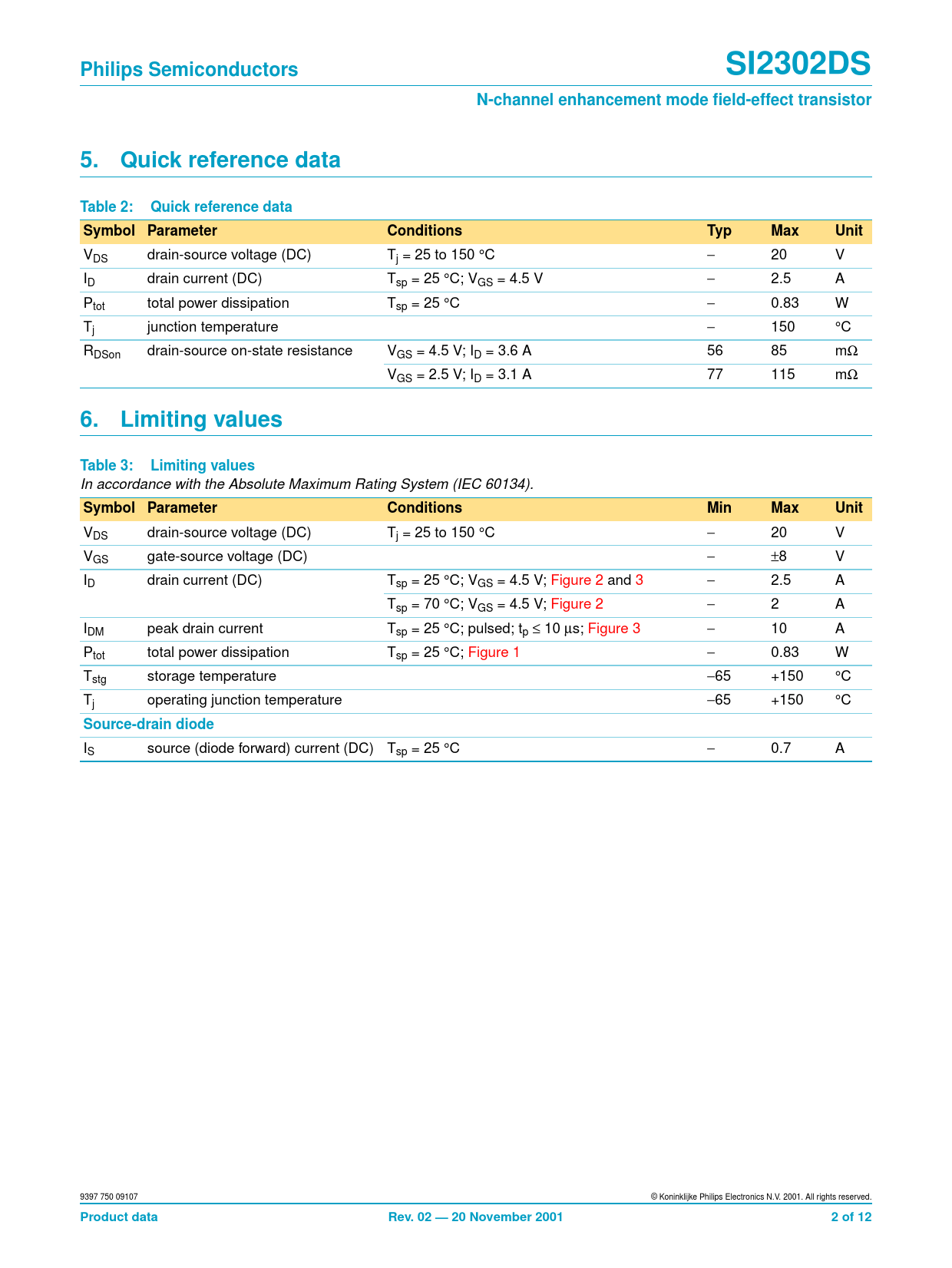

Philips Semiconductors SI2302DS N-channel enhancement mode field-effect transistor 5. Quick reference data Table 2: Quick reference data Symbol Parameter Conditions Typ Max Unit
VDS drain-source voltage (DC) Tj = 25 to 150 °C − 20 V ID drain current (DC) Tsp = 25 °C; VGS = 4.5 V − 2.5 A Ptot total power dissipation Tsp = 25 °C − 0.83 W Tj junction temperature − 150 °C RDSon drain-source on-state resistance VGS = 4.5 V; ID = 3.6 A 56 85 mΩ VGS = 2.5 V; ID = 3.1 A 77 115 mΩ
6. Limiting values Table 3: Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VDS drain-source voltage (DC) Tj = 25 to 150 °C − 20 V VGS gate-source voltage (DC) − ±8 V ID drain current (DC) Tsp = 25 °C; VGS = 4.5 V; Figure 2 and 3 − 2.5 A Tsp = 70 °C; VGS = 4.5 V; Figure 2 − 2 A IDM peak drain current Tsp = 25 °C; pulsed; tp ≤ 10 µs; Figure 3 − 10 A Ptot total power dissipation Tsp = 25 °C; Figure 1 − 0.83 W Tstg storage temperature −65 +150 °C Tj operating junction temperature −65 +150 °C
Source-drain diode
IS source (diode forward) current (DC) Tsp = 25 °C − 0.7 A 9397 750 09107 © Koninklijke Philips Electronics N.V. 2001. All rights reserved.
Product data Rev. 02 — 20 November 2001 2 of 12
