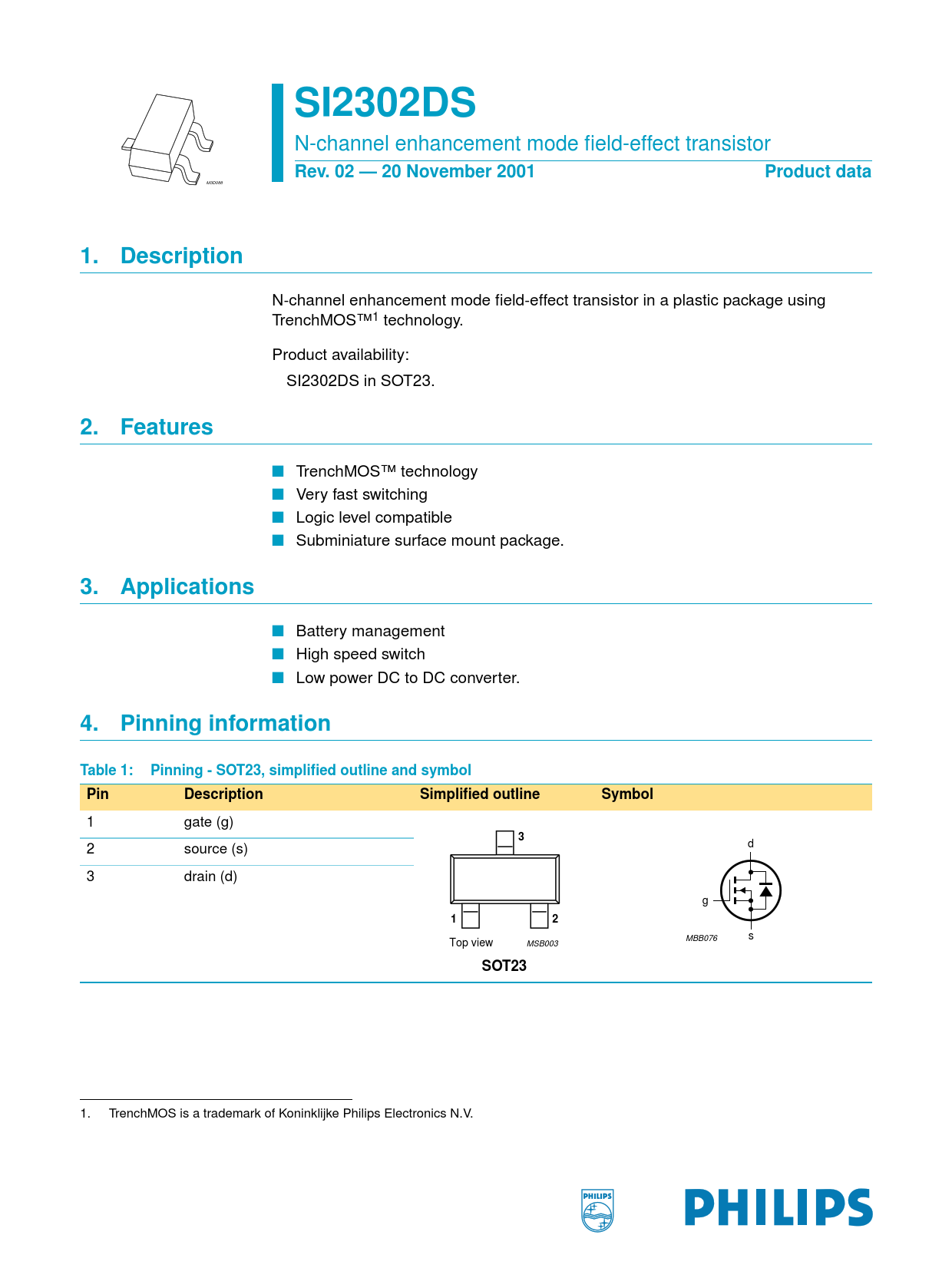

SI2302DS
N-channel enhancement mode field-effect transistor
Rev. 02 — 20 November 2001 Product data
M3D088
1. Description
N-channel enhancement mode field-effect transistor in a plastic package using TrenchMOS™1 technology. Product availability: SI2302DS in SOT23.
2. Features
■ TrenchMOS™ technology ■ Very fast switching ■ Logic level compatible ■ Subminiature surface mount package.
3. Applications
■ Battery management ■ High speed switch ■ Low power DC to DC converter.
4. Pinning information Table 1: Pinning - SOT23, simplified outline and symbol Pin Description Simplified outline Symbol
1 gate (g)
3
2 source (s) d 3 drain (d) g
1 2
MBB076 s Top view MSB003
SOT23
