Datasheet CPC1004N (Littelfuse)
| Hersteller | Littelfuse |
| Beschreibung | 100V, 300mA Single-Pole Normally Open Relay |
| Seiten / Seite | 6 / 1 — CPC1004N. 100V, 300mA Single-Pole. Normally Open Relay. Parameter. … |
| Dateiformat / Größe | PDF / 195 Kb |
| Dokumentensprache | Englisch |
CPC1004N. 100V, 300mA Single-Pole. Normally Open Relay. Parameter. Rating. Units. Description. Features. Approvals. Applications
Modelllinie für dieses Datenblatt
Textversion des Dokuments

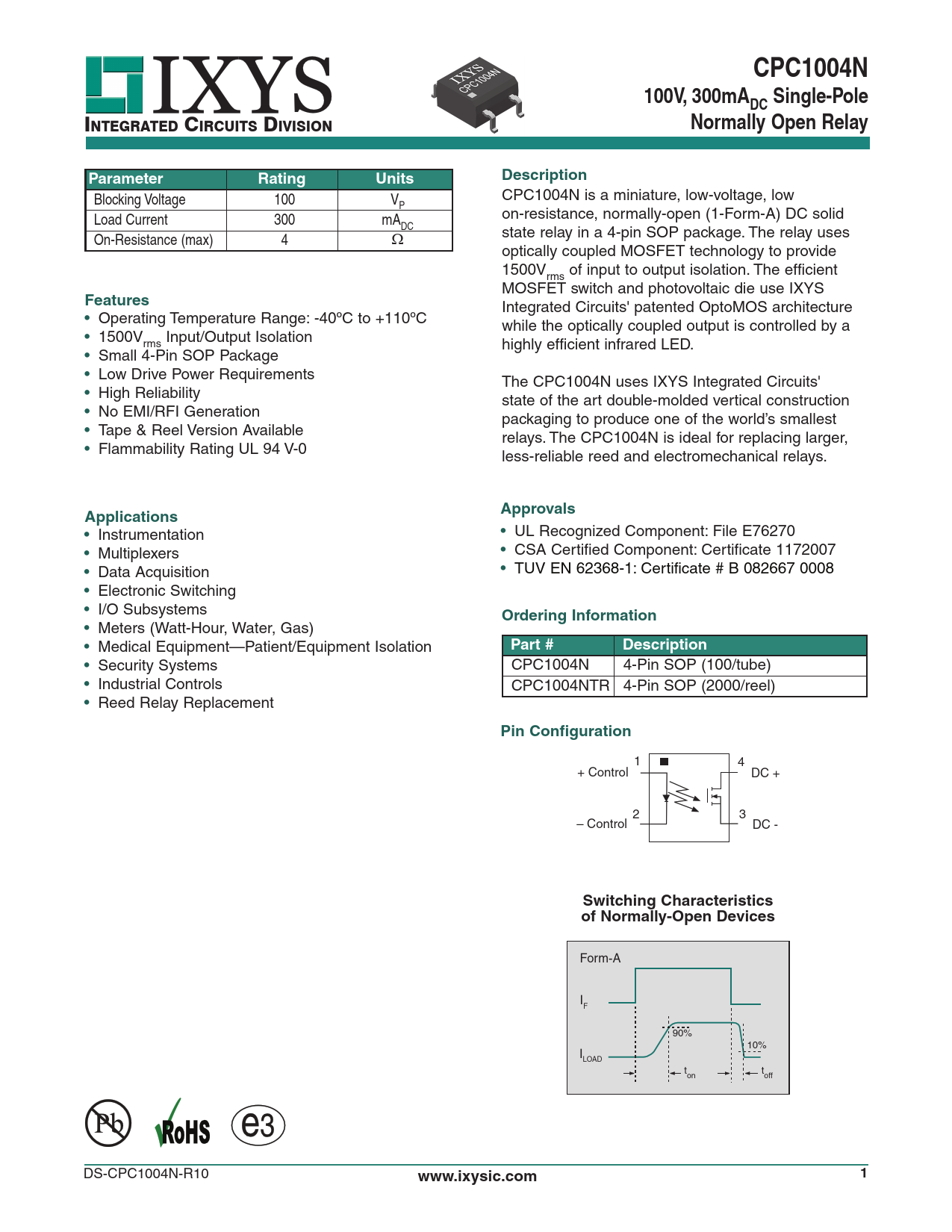

CPC1004N 100V, 300mA Single-Pole DC
INTEGRATED CIRCUITS DIVISION
Normally Open Relay Parameter Rating Units Description
Blocking Voltage 100 V CPC1004N is a miniature, low-voltage, low P Load Current 300 mA on-resistance, normally-open (1-Form-A) DC solid DC state relay in a 4-pin SOP package. The relay uses On-Resistance (max) 4 optically coupled MOSFET technology to provide 1500V of input to output isolation. The efficient rms MOSFET switch and photovoltaic die use IXYS
Features
Integrated Circuits' patented OptoMOS architecture • Operating Temperature Range: -40ºC to +110ºC while the optically coupled output is controlled by a • 1500V Input/Output Isolation rms highly efficient infrared LED. • Small 4-Pin SOP Package • Low Drive Power Requirements The CPC1004N uses IXYS Integrated Circuits' • High Reliability state of the art double-molded vertical construction • No EMI/RFI Generation packaging to produce one of the world’s smallest • Tape & Reel Version Available relays. The CPC1004N is ideal for replacing larger, • Flammability Rating UL 94 V-0 less-reliable reed and electromechanical relays.
Approvals Applications
• Instrumentation • UL Recognized Component: File E76270 • Multiplexers • CSA Certified Component: Certificate 1172007 • Data Acquisition • TUV EN 62368-1: Certificate # B 082667 0008 • Electronic Switching • I/O Subsystems
Ordering Information
• Meters (Watt-Hour, Water, Gas) • Medical Equipment—Patient/Equipment Isolation
Part # Description
• Security Systems CPC1004N 4-Pin SOP (100/tube) • Industrial Controls CPC1004NTR 4-Pin SOP (2000/reel) • Reed Relay Replacement
Pin Configuration
1 4 + Control DC + 2 3 – Control DC -
Switching Characteristics of Normally-Open Devices
Form-A IF 90% 10% ILOAD t t on off DS-CPC1004N-R10
www.ixysic.com 1
