Datasheet CPC1004N (Littelfuse) - 6
| Hersteller | Littelfuse |
| Beschreibung | 100V, 300mA Single-Pole Normally Open Relay |
| Seiten / Seite | 6 / 6 — CPC1004N. MECHANICAL DIMENSIONS. Recommended PCB Land Pattern. CPC1004NTR … |
| Dateiformat / Größe | PDF / 195 Kb |
| Dokumentensprache | Englisch |
CPC1004N. MECHANICAL DIMENSIONS. Recommended PCB Land Pattern. CPC1004NTR Tape & Reel. NOTE:
Modelllinie für dieses Datenblatt
Textversion des Dokuments
INTEGRATED CIRCUITS DIVISION

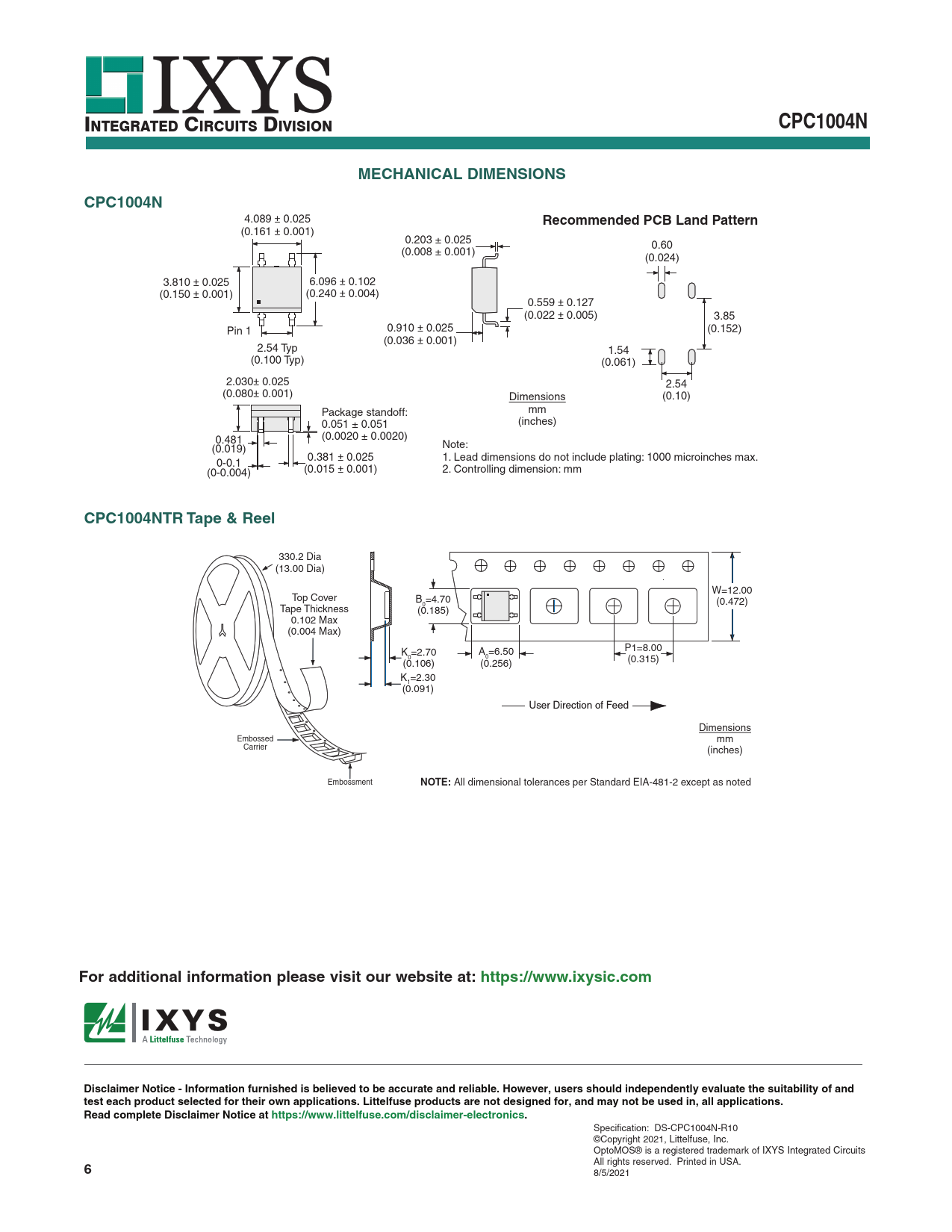

CPC1004N MECHANICAL DIMENSIONS CPC1004N
4.089 ± 0.025
Recommended PCB Land Pattern
(0.161 ± 0.001) 0.203 ± 0.025 0.60 (0.008 ± 0.001) (0.024) 3.810 ± 0.025 6.096 ± 0.102 (0.150 ± 0.001) (0.240 ± 0.004) 0.559 ± 0.127 (0.022 ± 0.005) 3.85 0.910 ± 0.025 (0.152) Pin 1 (0.036 ± 0.001) 2.54 Typ 1.54 (0.100 Typ) (0.061) 2.030± 0.025 2.54 (0.080± 0.001) Dimensions (0.10) mm Package standoff: (inches) 0.051 ± 0.051 (0.0020 ± 0.0020) 0.481 (0.019) Note: 0.381 ± 0.025 1. Lead dimensions do not include plating: 1000 microinches max. 0-0.1 (0.015 ± 0.001) (0-0.004) 2. Controlling dimension: mm
CPC1004NTR Tape & Reel
330.2 Dia (13.00 Dia) W=12.00 Top Cover B =4.70 (0.472) 0 Tape Thickness (0.185) 0.102 Max (0.004 Max) K =2.70 P1=8.00 A =6.50 0 0 (0.106) (0.315) (0.256) K =2.30 1 (0.091) User Direction of Fee User Direction of F d eed Dimensions Embossed mm Carrier (inches) Embossment
NOTE:
All dimensional tolerances per Standard EIA-481-2 except as noted
For additional information please visit our website at: https://www.ixysic.com Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at https://www.littelfuse.com/disclaimer-electronics.
Specification: DS-CPC1004N-R10 ©Copyright 2021, Littelfuse, Inc. OptoMOS® is a registered trademark of IXYS Integrated Circuits All rights reserved. Printed in USA.
6
8/5/2021
