Datasheet ADG5412, ADG5413 (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | High Voltage Latch-Up Proof, Quad SPST Switches |
| Seiten / Seite | 19 / 6 — ADG5412/ADG5413. Data Sheet. Parameter. +25°C −40°C to +85°C −40°C to … |
| Revision | D |
| Dateiformat / Größe | PDF / 469 Kb |
| Dokumentensprache | Englisch |

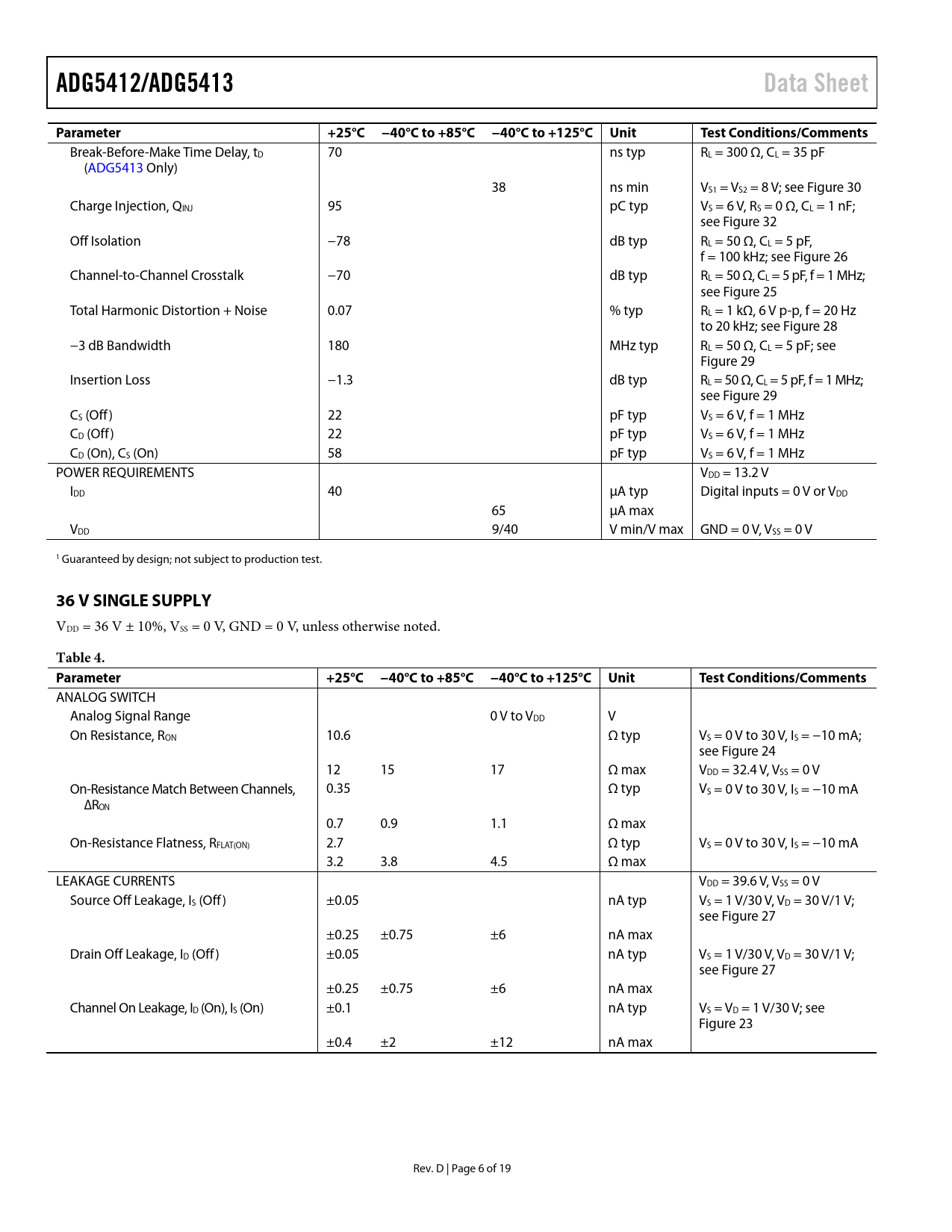

ADG5412/ADG5413. Data Sheet. Parameter. +25°C −40°C to +85°C −40°C to +125°C Unit. Test Conditions/Comments. 36 V SINGLE SUPPLY
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 15 link to page 15 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14
ADG5412/ADG5413 Data Sheet Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
Break-Before-Make Time Delay, tD 70 ns typ RL = 300 Ω, CL = 35 pF (ADG5413 Only) 38 ns min VS1 = VS2 = 8 V; see Figure 30 Charge Injection, QINJ 95 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 32 Off Isolation −78 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 26 Channel-to-Channel Crosstalk −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 25 Total Harmonic Distortion + Noise 0.07 % typ RL = 1 kΩ, 6 V p-p, f = 20 Hz to 20 kHz; see Figure 28 −3 dB Bandwidth 180 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 29 Insertion Loss −1.3 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 CS (Off) 22 pF typ VS = 6 V, f = 1 MHz CD (Off) 22 pF typ VS = 6 V, f = 1 MHz CD (On), CS (On) 58 pF typ VS = 6 V, f = 1 MHz POWER REQUIREMENTS VDD = 13.2 V IDD 40 µA typ Digital inputs = 0 V or VDD 65 µA max VDD 9/40 V min/V max GND = 0 V, VSS = 0 V 1 Guaranteed by design; not subject to production test.
36 V SINGLE SUPPLY
VDD = 36 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 10.6 Ω typ VS = 0 V to 30 V, IS = −10 mA; see Figure 24 12 15 17 Ω max VDD = 32.4 V, VSS = 0 V On-Resistance Match Between Channels, 0.35 Ω typ VS = 0 V to 30 V, IS = −10 mA ∆RON 0.7 0.9 1.1 Ω max On-Resistance Flatness, RFLAT(ON) 2.7 Ω typ VS = 0 V to 30 V, IS = −10 mA 3.2 3.8 4.5 Ω max LEAKAGE CURRENTS VDD = 39.6 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.05 nA typ VS = 1 V/30 V, VD = 30 V/1 V; see Figure 27 ±0.25 ±0.75 ±6 nA max Drain Off Leakage, ID (Off) ±0.05 nA typ VS = 1 V/30 V, VD = 30 V/1 V; see Figure 27 ±0.25 ±0.75 ±6 nA max Channel On Leakage, ID (On), IS (On) ±0.1 nA typ VS = VD = 1 V/30 V; see Figure 23 ±0.4 ±2 ±12 nA max Rev. D | Page 6 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
ADG5412/ADG5413 Data Sheet Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
Break-Before-Make Time Delay, tD 70 ns typ RL = 300 Ω, CL = 35 pF (ADG5413 Only) 38 ns min VS1 = VS2 = 8 V; see Figure 30 Charge Injection, QINJ 95 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 32 Off Isolation −78 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 26 Channel-to-Channel Crosstalk −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 25 Total Harmonic Distortion + Noise 0.07 % typ RL = 1 kΩ, 6 V p-p, f = 20 Hz to 20 kHz; see Figure 28 −3 dB Bandwidth 180 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 29 Insertion Loss −1.3 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 CS (Off) 22 pF typ VS = 6 V, f = 1 MHz CD (Off) 22 pF typ VS = 6 V, f = 1 MHz CD (On), CS (On) 58 pF typ VS = 6 V, f = 1 MHz POWER REQUIREMENTS VDD = 13.2 V IDD 40 µA typ Digital inputs = 0 V or VDD 65 µA max VDD 9/40 V min/V max GND = 0 V, VSS = 0 V 1 Guaranteed by design; not subject to production test.
36 V SINGLE SUPPLY
VDD = 36 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 10.6 Ω typ VS = 0 V to 30 V, IS = −10 mA; see Figure 24 12 15 17 Ω max VDD = 32.4 V, VSS = 0 V On-Resistance Match Between Channels, 0.35 Ω typ VS = 0 V to 30 V, IS = −10 mA ∆RON 0.7 0.9 1.1 Ω max On-Resistance Flatness, RFLAT(ON) 2.7 Ω typ VS = 0 V to 30 V, IS = −10 mA 3.2 3.8 4.5 Ω max LEAKAGE CURRENTS VDD = 39.6 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.05 nA typ VS = 1 V/30 V, VD = 30 V/1 V; see Figure 27 ±0.25 ±0.75 ±6 nA max Drain Off Leakage, ID (Off) ±0.05 nA typ VS = 1 V/30 V, VD = 30 V/1 V; see Figure 27 ±0.25 ±0.75 ±6 nA max Channel On Leakage, ID (On), IS (On) ±0.1 nA typ VS = VD = 1 V/30 V; see Figure 23 ±0.4 ±2 ±12 nA max Rev. D | Page 6 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
