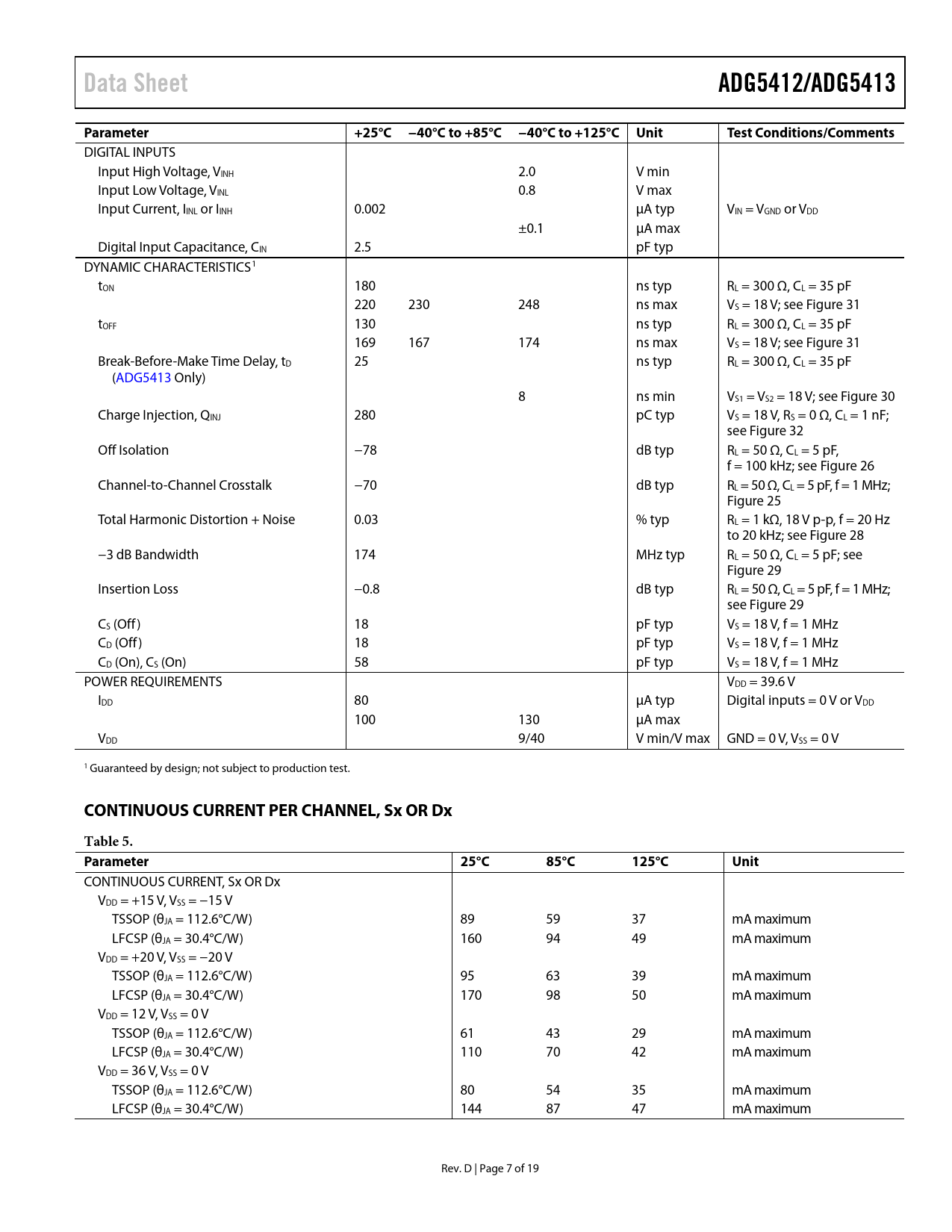

Data Sheet ADG5412/ADG5413 Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 2.5 pF typ DYNAMIC CHARACTERISTICS1 tON 180 ns typ RL = 300 Ω, CL = 35 pF 220 230 248 ns max VS = 18 V; see Figure 31 tOFF 130 ns typ RL = 300 Ω, CL = 35 pF 169 167 174 ns max VS = 18 V; see Figure 31 Break-Before-Make Time Delay, tD 25 ns typ RL = 300 Ω, CL = 35 pF (ADG5413 Only) 8 ns min VS1 = VS2 = 18 V; see Figure 30 Charge Injection, QINJ 280 pC typ VS = 18 V, RS = 0 Ω, CL = 1 nF; see Figure 32 Off Isolation −78 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 26 Channel-to-Channel Crosstalk −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; Figure 25 Total Harmonic Distortion + Noise 0.03 % typ RL = 1 kΩ, 18 V p-p, f = 20 Hz to 20 kHz; see Figure 28 −3 dB Bandwidth 174 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 29 Insertion Loss −0.8 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 CS (Off) 18 pF typ VS = 18 V, f = 1 MHz CD (Off) 18 pF typ VS = 18 V, f = 1 MHz CD (On), CS (On) 58 pF typ VS = 18 V, f = 1 MHz POWER REQUIREMENTS VDD = 39.6 V IDD 80 µA typ Digital inputs = 0 V or VDD 100 130 µA max VDD 9/40 V min/V max GND = 0 V, VSS = 0 V 1 Guaranteed by design; not subject to production test.
CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx Table 5. Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, Sx OR Dx VDD = +15 V, VSS = −15 V TSSOP (θJA = 112.6°C/W) 89 59 37 mA maximum LFCSP (θJA = 30.4°C/W) 160 94 49 mA maximum VDD = +20 V, VSS = −20 V TSSOP (θJA = 112.6°C/W) 95 63 39 mA maximum LFCSP (θJA = 30.4°C/W) 170 98 50 mA maximum VDD = 12 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 61 43 29 mA maximum LFCSP (θJA = 30.4°C/W) 110 70 42 mA maximum VDD = 36 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 80 54 35 mA maximum LFCSP (θJA = 30.4°C/W) 144 87 47 mA maximum Rev. D | Page 7 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
