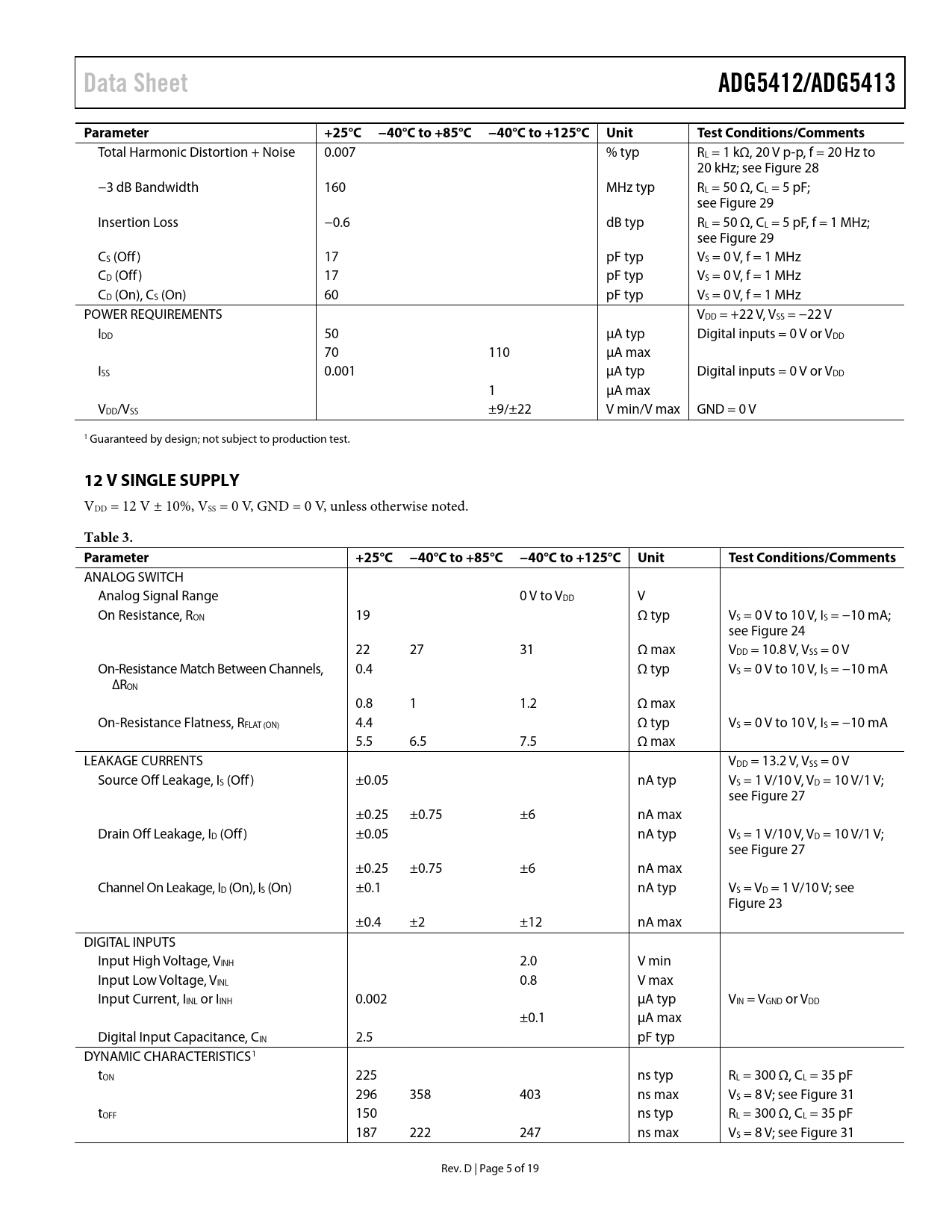

Data Sheet ADG5412/ADG5413 Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
Total Harmonic Distortion + Noise 0.007 % typ RL = 1 kΩ, 20 V p-p, f = 20 Hz to 20 kHz; see Figure 28 −3 dB Bandwidth 160 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 29 Insertion Loss −0.6 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 CS (Off) 17 pF typ VS = 0 V, f = 1 MHz CD (Off) 17 pF typ VS = 0 V, f = 1 MHz CD (On), CS (On) 60 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = +22 V, VSS = −22 V IDD 50 µA typ Digital inputs = 0 V or VDD 70 110 µA max ISS 0.001 µA typ Digital inputs = 0 V or VDD 1 µA max VDD/VSS ±9/±22 V min/V max GND = 0 V 1 Guaranteed by design; not subject to production test.
12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 3. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 19 Ω typ VS = 0 V to 10 V, IS = −10 mA; see Figure 24 22 27 31 Ω max VDD = 10.8 V, VSS = 0 V On-Resistance Match Between Channels, 0.4 Ω typ VS = 0 V to 10 V, IS = −10 mA ∆RON 0.8 1 1.2 Ω max On-Resistance Flatness, RFLAT (ON) 4.4 Ω typ VS = 0 V to 10 V, IS = −10 mA 5.5 6.5 7.5 Ω max LEAKAGE CURRENTS VDD = 13.2 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.05 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 27 ±0.25 ±0.75 ±6 nA max Drain Off Leakage, ID (Off) ±0.05 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 27 ±0.25 ±0.75 ±6 nA max Channel On Leakage, ID (On), IS (On) ±0.1 nA typ VS = VD = 1 V/10 V; see Figure 23 ±0.4 ±2 ±12 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 2.5 pF typ DYNAMIC CHARACTERISTICS1 tON 225 ns typ RL = 300 Ω, CL = 35 pF 296 358 403 ns max VS = 8 V; see Figure 31 tOFF 150 ns typ RL = 300 Ω, CL = 35 pF 187 222 247 ns max VS = 8 V; see Figure 31 Rev. D | Page 5 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
