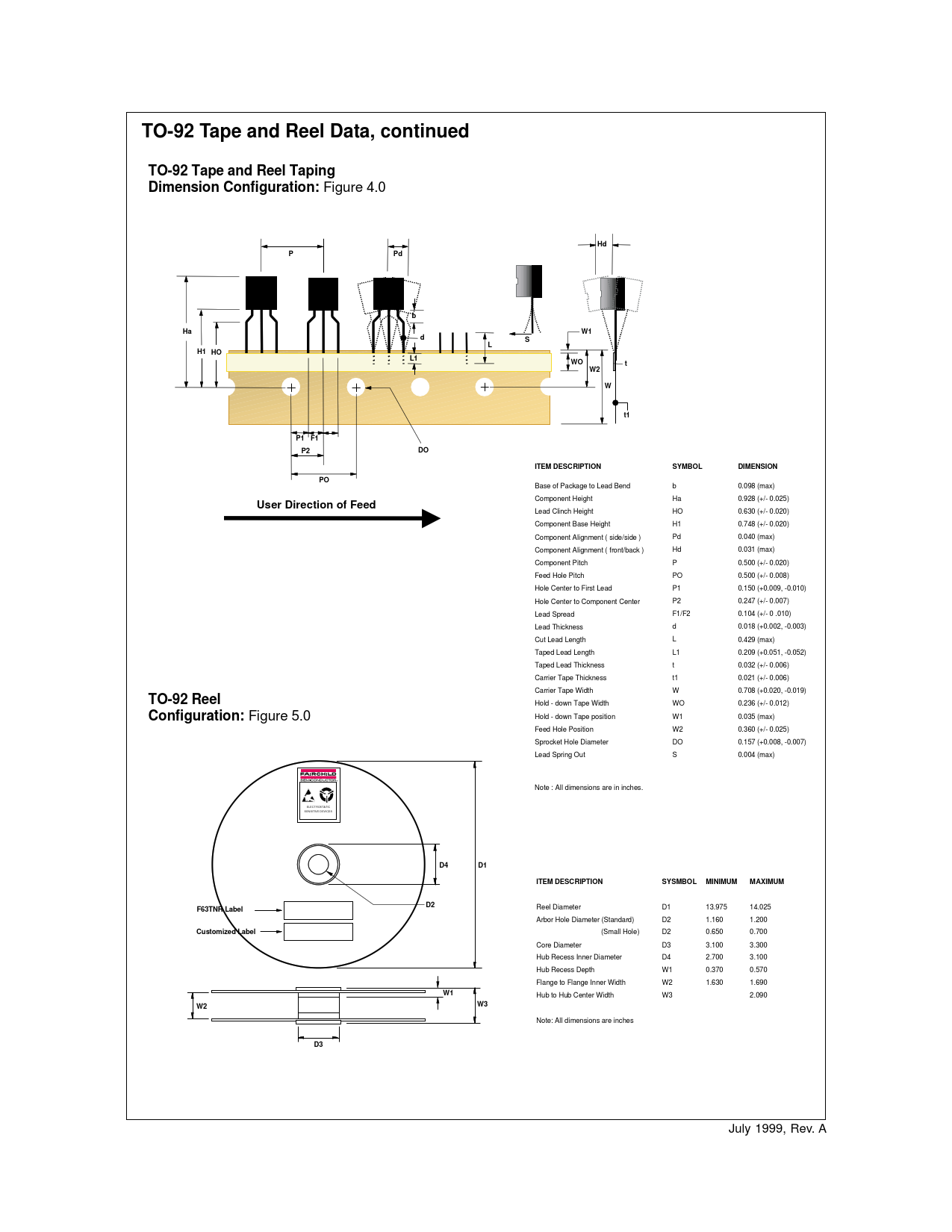

TO-92 Tape and Reel Data, continued
TO-92 Tape and Reel Taping
Dimension Configuration: Figure 4.0 Hd
P Pd b
Ha W1 d
L
H1 HO L1 S
WO t W2
W t1
P1 F1
DO P2 PO User Direction of Feed TO-92 Reel
Configuration: Figure 5.0 ITEM DESCRIPTION SYMBOL DIMENSION Base of Package to Lead Bend b 0.098 (max) Component Height Ha 0.928 (+/-0.025) Lead Clinch Height HO 0.630 (+/-0.020) Component Base Height H1 0.748 (+/-0.020) Component Alignment ( side/side ) Pd 0.040 (max) Component Alignment ( front/back ) Hd 0.031 (max) Component Pitch P 0.500 (+/-0.020) Feed Hole Pitch PO 0.500 (+/-0.008) Hole Center to First Lead P1 0.150 (+0.009, -0.010) Hole Center to Component Center P2 0.247 (+/-0.007) Lead Spread F1/F2 0.104 (+/-0 .010) Lead Thickness d 0.018 (+0.002, -0.003) Cut Lead Length L 0.429 (max) Taped Lead Length L1 0.209 (+0.051, -0.052) Taped Lead Thickness t 0.032 (+/-0.006) Carrier Tape Thickness t1 0.021 (+/-0.006) Carrier Tape Width W 0.708 (+0.020, -0.019) Hold -down Tape Width WO 0.236 (+/-0.012) Hold -down Tape position W1 0.035 (max) Feed Hole Position W2 0.360 (+/-0.025) Sprocket Hole Diameter DO 0.157 (+0.008, -0.007) Lead Spring Out S 0.004 (max) Note : All dimensions are in inches.
ELECT ROSTATIC
SEN SITIVE D EVICES D4 D1 D2 F63TNR Label ITEM DESCRIPTION SYSMBOL MINIMUM MAXIMUM Reel Diameter D1 13.975 14.025 Arbor Hole Diameter (Standard) D2 1.160 1.200 D2 0.650 0.700 Customized Label (Small Hole) W1 Core Diameter D3 3.100 3.300 Hub Recess Inner Diameter D4 2.700 3.100 Hub Recess Depth W1 0.370 0.570 Flange to Flange Inner Width W2 1.630 Hub to Hub Center Width W3 1.690
2.090 W3 W2 Note: All dimensions are inches
D3 July 1999, Rev. A
