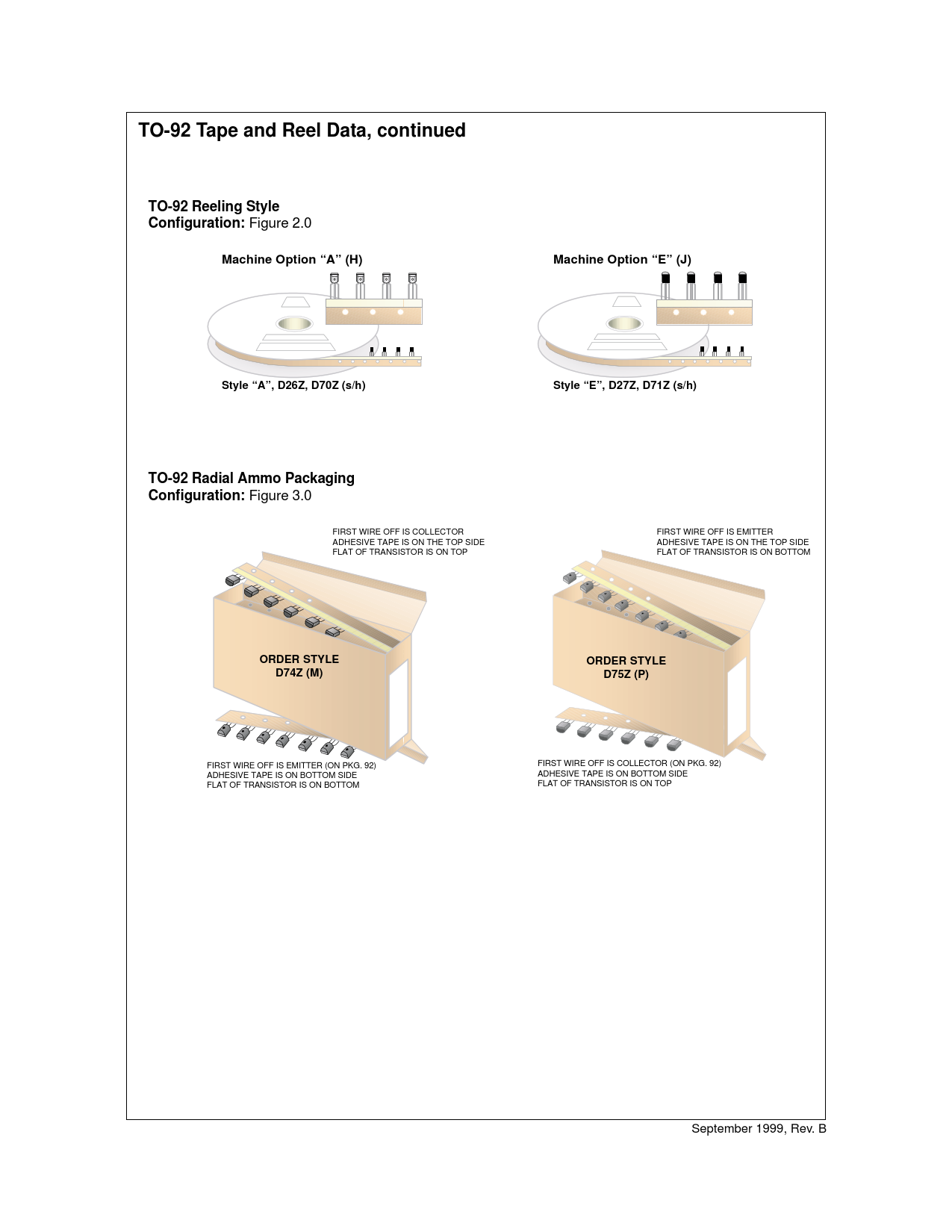

TO-92 Tape and Reel Data, continued TO-92 Reeling Style. Configuration: Figure 2.0
Modelllinie für dieses Datenblatt
Textversion des Dokuments
TO-92 Tape and Reel Data, continued TO-92 Reeling Style
Configuration: Figure 2.0
Machine Option “A” (H) Machine Option “E” (J) Style “A”, D26Z, D70Z (s/h) Style “E”, D27Z, D71Z (s/h) TO-92 Radial Ammo Packaging
Configuration: Figure 3.0
FIRST WIRE OFF IS COLLECTOR
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON TOP ORDER STYLE
D74Z (M) FIRST WIRE OFF IS EMITTER (ON PKG. 92)
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON BOTTOM FIRST WIRE OFF IS EMITTER
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON BOTTOM ORDER STYLE
D75Z (P) FIRST WIRE OFF IS COLLECTOR (ON PKG. 92)
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON TOP September 1999, Rev. B
