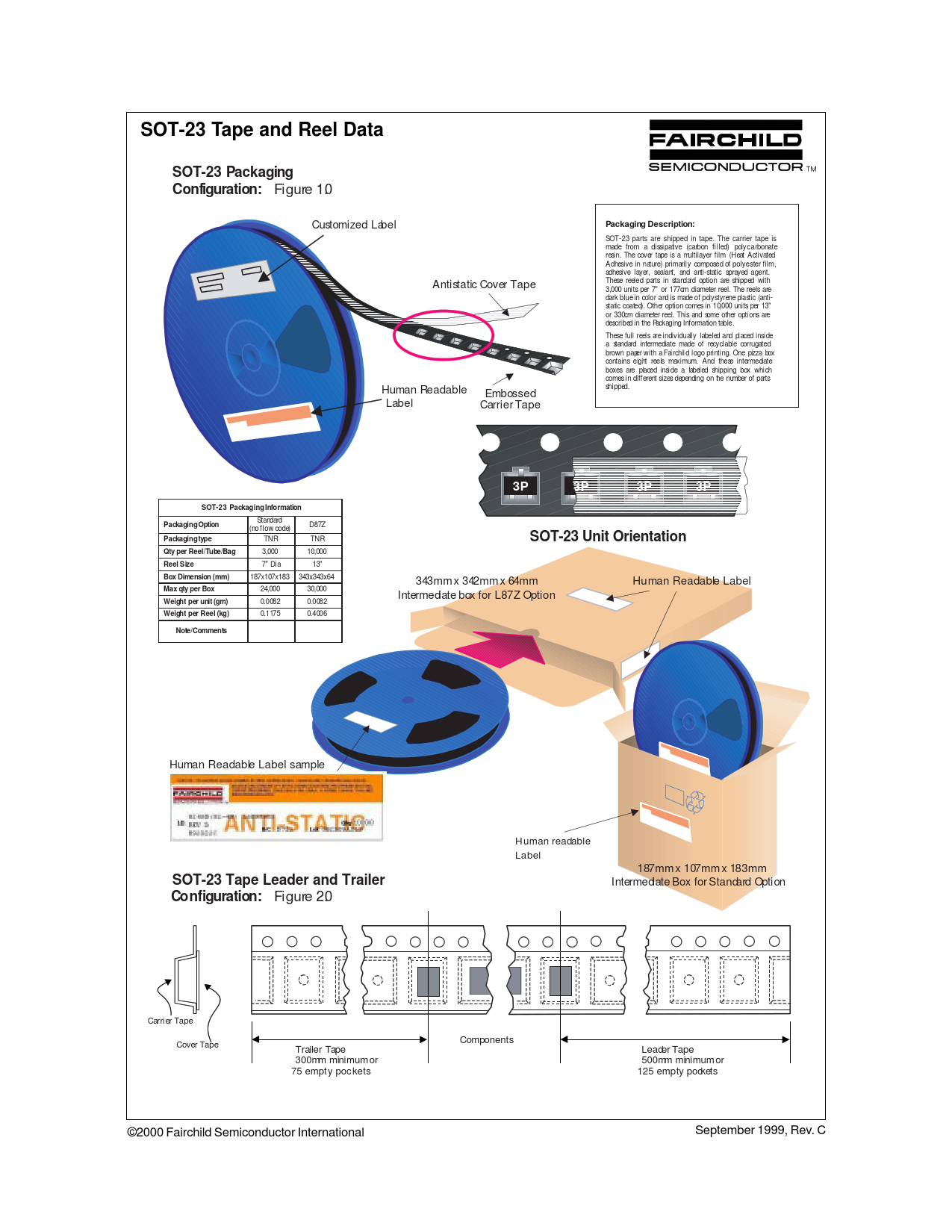

SOT-23 Tape and Reel Data
SOT-23 Packaging
Configuration: Figure 1.0
Customized Label Packaging Description:
SOT-23 parts are shipped in tape. The carrier tape is
made from a dissipative (carbon filled) polycarbonate
resin. The cover tape is a multilayer film (Heat Activated
Adhesive in nature) primarily composed of polyester film,
adhesive layer, sealant, and anti-static sprayed agent.
These reeled parts in standard option are shipped with
3,000 units per 7" or 177cm diameter reel. The reels are
dark blue in color and is made of polystyrene plastic (antistatic coated). Other option comes in 10,000 units per 13"
or 330cm diameter reel. This and some other options are
described in the Packaging Information table. Antistatic Cover Tape Human Readable
Label These full reels are individually labeled and placed inside
a standard intermediate made of recyclable corrugated
brown paper with a Fairchil d logo printing. One pizza box
contains eight reels maximum. And these intermediate
boxes are placed inside a labeled shipping box which
comes in different sizes depending on the number of parts
shipped. Embossed
Carrier Tape 3P 3P 3P 3P SOT-23 Packaging Information
Packaging Option
Packaging type
Qty per Reel/Tube/Bag Standard
(no flow code)
TNR
3,000 D87Z 7" Dia 13" 187x107x183 343x343x64 Max qty per Box 24,000 30,000 Weight per unit (gm) 0.0082 0.0082 Weight per Reel (kg) 0.1175 0.4006 Reel Size
Box Dimension (mm) SOT-23 Unit Orientation TNR
10,000 343mm x 342mm x 64mm
Intermediate box for L87Z Option Human Readable Label Note/Comments Human Readable Label sample H uman readable
Label 187mm x 107mm x 183mm
Intermediate Box for Standard Option SOT-23 Tape Leader and Trailer
Configuration: Figure 2.0 Carrier Tape
Cover Tape Components
Trailer Tape
300mm minimum or
75 empt y poc kets ©2000 Fairchild Semiconductor International Leader Tape
500mm minimum or
125 empty pockets September 1999, Rev. C
