Datasheet C2M1000170J (Wolfspeed) - 9
| Hersteller | Wolfspeed |
| Beschreibung | Silicon Carbide Power MOSFET 1700 V 5.3 A 1.0 Ω |
| Seiten / Seite | 10 / 9 — Package Dimensions. All Dimensions in Millimeters. Dim. Min. typ. Max |
| Dateiformat / Größe | PDF / 1.1 Mb |
| Dokumentensprache | Englisch |
Package Dimensions. All Dimensions in Millimeters. Dim. Min. typ. Max
Modelllinie für dieses Datenblatt
Textversion des Dokuments

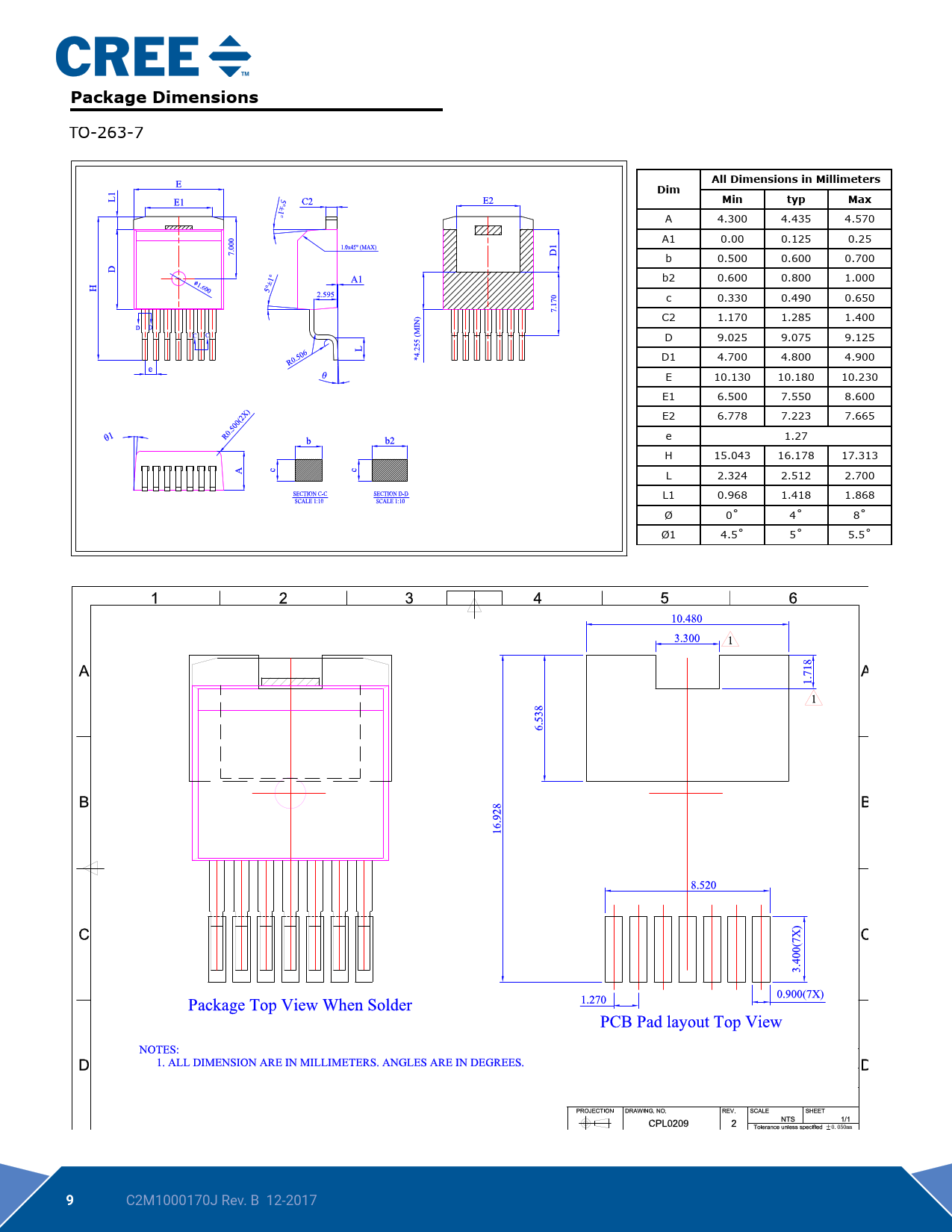

Package Dimensions
Package 7L D2P TO-263-7 AK
All Dimensions in Millimeters Dim Min typ Max
A 4.300 4.435 4.570 A1 0.00 0.125 0.25 b 0.500 0.600 0.700 b2 0.600 0.800 1.000 c 0.330 0.490 0.650 C2 1.170 1.285 1.400 D 9.025 9.075 9.125 D1 4.700 4.800 4.900 E 10.130 10.180 10.230 E1 6.500 7.550 8.600 E2 6.778 7.223 7.665 e 1.27 H 15.043 16.178 17.313 L 2.324 2.512 2.700 L1 0.968 1.418 1.868 Ø 0˚ 4˚ 8˚ Ø1 4.5˚ 5˚ 5.5˚
9
C2M1000170J Rev. B 12-2017
Package 7L D2P TO-263-7 AK
All Dimensions in Millimeters Dim Min typ Max
A 4.300 4.435 4.570 A1 0.00 0.125 0.25 b 0.500 0.600 0.700 b2 0.600 0.800 1.000 c 0.330 0.490 0.650 C2 1.170 1.285 1.400 D 9.025 9.075 9.125 D1 4.700 4.800 4.900 E 10.130 10.180 10.230 E1 6.500 7.550 8.600 E2 6.778 7.223 7.665 e 1.27 H 15.043 16.178 17.313 L 2.324 2.512 2.700 L1 0.968 1.418 1.868 Ø 0˚ 4˚ 8˚ Ø1 4.5˚ 5˚ 5.5˚
9
C2M1000170J Rev. B 12-2017
