Datasheet C2M1000170J (Wolfspeed) - 8
| Hersteller | Wolfspeed |
| Beschreibung | Silicon Carbide Power MOSFET 1700 V 5.3 A 1.0 Ω |
| Seiten / Seite | 10 / 8 — Test Circuit Schematic. ESD Ratings. ESD Test. Total Devices Sampled. … |
| Dateiformat / Größe | PDF / 1.1 Mb |
| Dokumentensprache | Englisch |
Test Circuit Schematic. ESD Ratings. ESD Test. Total Devices Sampled. Resulting Classification
Modelllinie für dieses Datenblatt
Textversion des Dokuments

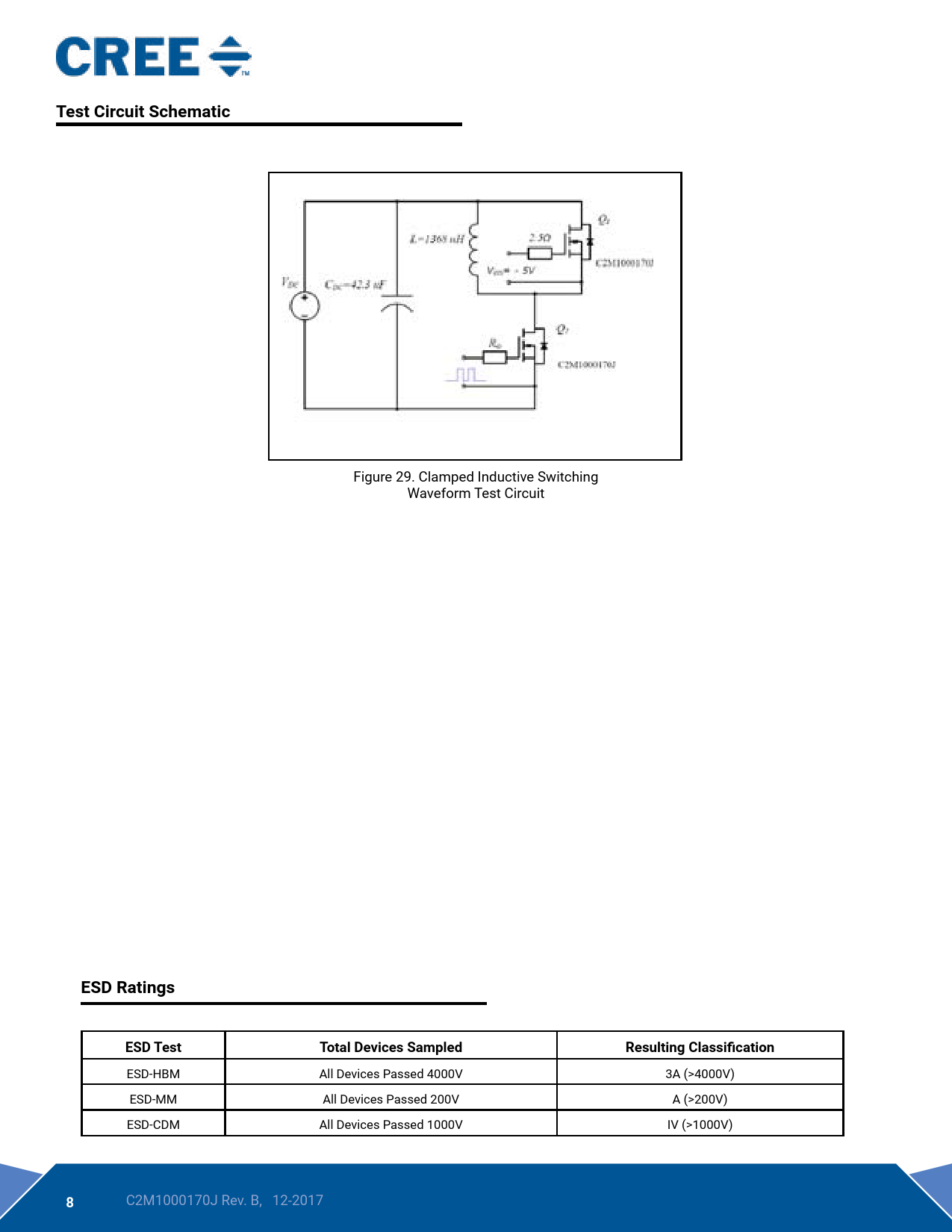

Test Circuit Schematic
Figure 29. Clamped Inductive Switching Waveform Test Circuit
ESD Ratings ESD Test Total Devices Sampled Resulting Classification
ESD-HBM All Devices Passed 4000V 3A (>4000V) ESD-MM All Devices Passed 200V A (>200V) ESD-CDM All Devices Passed 1000V IV (>1000V)
8
C2M1000170J Rev. B, 12-2017
Figure 29. Clamped Inductive Switching Waveform Test Circuit
ESD Ratings ESD Test Total Devices Sampled Resulting Classification
ESD-HBM All Devices Passed 4000V 3A (>4000V) ESD-MM All Devices Passed 200V A (>200V) ESD-CDM All Devices Passed 1000V IV (>1000V)
8
C2M1000170J Rev. B, 12-2017
