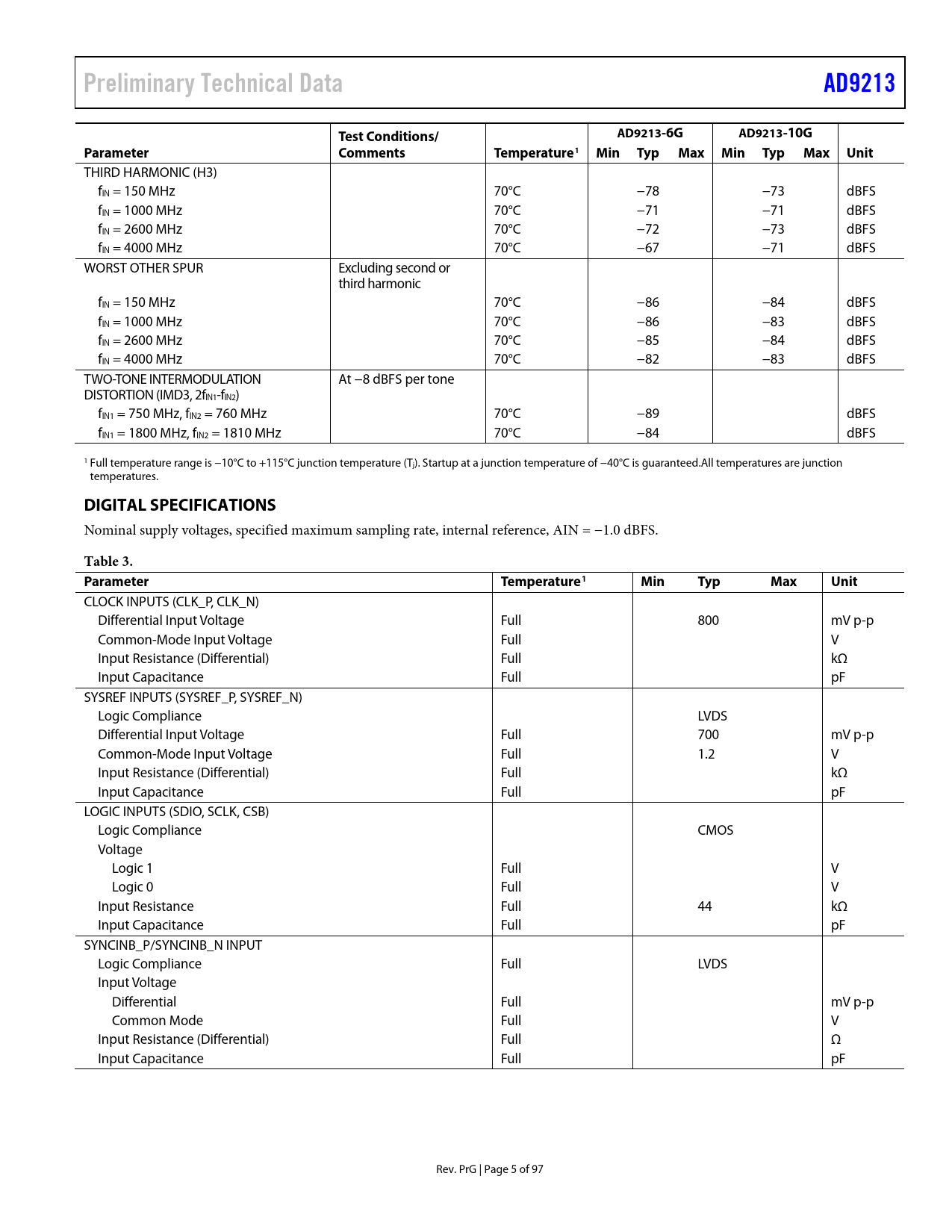

Preliminary Technical Data AD9213 Test Conditions/ AD9213-6G AD9213-10G Parameter Comments Temperature1 Min Typ Max Min Typ Max Unit
THIRD HARMONIC (H3) fIN = 150 MHz 70°C −78 −73 dBFS fIN = 1000 MHz 70°C −71 −71 dBFS fIN = 2600 MHz 70°C −72 −73 dBFS fIN = 4000 MHz 70°C −67 −71 dBFS WORST OTHER SPUR Excluding second or third harmonic fIN = 150 MHz 70°C −86 −84 dBFS fIN = 1000 MHz 70°C −86 −83 dBFS fIN = 2600 MHz 70°C −85 −84 dBFS fIN = 4000 MHz 70°C −82 −83 dBFS TWO-TONE INTERMODULATION At −8 dBFS per tone DISTORTION (IMD3, 2fIN1-fIN2) fIN1 = 750 MHz, fIN2 = 760 MHz 70°C −89 dBFS fIN1 = 1800 MHz, fIN2 = 1810 MHz 70°C −84 dBFS 1 Full temperature range is −10°C to +115°C junction temperature (Tj). Startup at a junction temperature of −40°C is guaranteed.All temperatures are junction temperatures.
DIGITAL SPECIFICATIONS
Nominal supply voltages, specified maximum sampling rate, internal reference, AIN = −1.0 dBFS.
Table 3. Parameter Temperature1 Min Typ Max Unit
CLOCK INPUTS (CLK_P, CLK_N) Differential Input Voltage Full 800 mV p-p Common-Mode Input Voltage Full V Input Resistance (Differential) Full kΩ Input Capacitance Full pF SYSREF INPUTS (SYSREF_P, SYSREF_N) Logic Compliance LVDS Differential Input Voltage Full 700 mV p-p Common-Mode Input Voltage Full 1.2 V Input Resistance (Differential) Full kΩ Input Capacitance Full pF LOGIC INPUTS (SDIO, SCLK, CSB) Logic Compliance CMOS Voltage Logic 1 Full V Logic 0 Full V Input Resistance Full 44 kΩ Input Capacitance Full pF SYNCINB_P/SYNCINB_N INPUT Logic Compliance Full LVDS Input Voltage Differential Full mV p-p Common Mode Full V Input Resistance (Differential) Full Ω Input Capacitance Full pF Rev. PrG | Page 5 of 97 Document Outline FEATURES GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS SPECIFICATIONS DC SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS AD9213-6G AD9213-10G EQUIVALENT CIRCUITS THEORY OF OPERATION ADC ARCHITECTURE ANALOG INPUT CONSIDERATIONS Differential Input Configurations Input Common Mode Input Overvoltage Clamp VOLTAGE REFERENCE CLOCK INPUT CONSIDERATIONS Clock Synthesis Clock Jitter Considerations Power-Down/Standby Mode Temperature Diode and Sensor TMU ADC FAST DETECT FAST THRESHOLD DETECTION (FD) DIGITAL DOWNCONVERTER DDC GENERAL DESCRIPTION Frequency Translation Stage (Optional) Filtering Stage Gain Stage (Optional) Complex to Real Conversion Stage (Optional) DDC FREQUENCY TRANSLATION Variable IF Mode ZIF Mode fS/4 Hz IF Mode Test Mode DDC NCO Description DDC NCO Programmable Modulus Mode DDC NCO Coherent Mode NCO FTW/POW/MAW/MAB Description NCO FTW/POW/MAW/MAB Programmable Modulus Mode Example Calculation NCO FTW/POW/MAW/MAB Coherent Mode Example Calculation NCO Channel Selection GPIO Level Control Mode GPIO Edge Control Mode Profile Select Timer Mode Register Map Mode Setting Up the Multichannel NCO Feature NCO Synchronization NCO Multichip Synchronization NCO Multichip Synchronization at Startup NCO Multichip Synchronization during Normal Operation DDC Mixer Description DDC NCO + Mixer Loss and SFDR DDC DECIMATION FILTERS M2_HB7 Filter Description M2_HB6 Filter Description M2_HB5 Filter Description M2_HB4 Filter Description M2_HB3 Filter Description M2_HB2 Filter Description M2_HB1 Filter Description M1_TB2 Filter Description DDC GAIN STAGE DDC COMPLEX TO REAL CONVERSION DDC EXAMPLE CONFIGURATIONS DIGITAL OUTPUTS INTRODUCTION TO THE JESD204B INTERFACE JESD204B OVERVIEW FUNCTIONAL OVERVIEW Transport Layer Data Link Layer Physical Layer JESD204B LINK ESTABLISHMENT Code Group Synchronization (CGS) and SYNCINB± Initial Lane Alignment Sequence (ILAS) User Data and Error Detection 8-Bit/10-Bit Encoder PHYSICAL LAYER (DRIVER) OUTPUTS Digital Outputs, Timing, and Controls De-Emphasis Phase-Locked Loop SETTING UP THE AD9213 DIGITAL INTERFACE JESD204B Transport Layer Settings Serial Line Rates K Settings DETERMINISTIC LATENCY SUBCLASS 0 OPERATION SUBCLASS 1 OPERATION Deterministic Latency Requirements Setting Deterministic Latency Registers MULTICHIP SYNCHRONIZATION SAMPLED SYSREF MODE AVERAGED SYSREF MODE TEST MODES JESD204B TEST MODES SERIAL PORT INTERFACE MEMORY MAP READING THE MEMORY MAP REGISTER TABLES Open and Reserved Locations Default Values Logic Levels SPI Soft Reset REGISTER DETAILS: SYSTEM CONTROL SIGNALS (SPI_ONLY_REGMAP) REGISTER DETAILS: (USER_CTRL) REGISTER DETAILS: (AD9213_CUST_SPI_REGMAP) REGISTER DETAILS: (MAIN_REGMAP) REGISTER DETAILS: JTX_QBF REGISTER REGISTER DETAILS: DIG_DP_REGMAP REGISTER DETAILS: (AD9213_CUST_REG) REGISTER DETAILS: LCPLL_28NM REGISTER REGISTER DETAILS: JESD204B REGISTER MAP FOR FOUR CHANNELS (JTX_28NM_16CH) APPLICATIONS INFORMATION POWER SUPPLY RECOMMENDATIONS OUTLINE DIMENSIONS
