DGTD65T40S2PT. Package Outline Dimensions. TO247 (Type MC). Dim. Min. Max. Typ. All Dimensions in mm. www.diodes.com
Modelllinie für dieses Datenblatt
Textversion des Dokuments

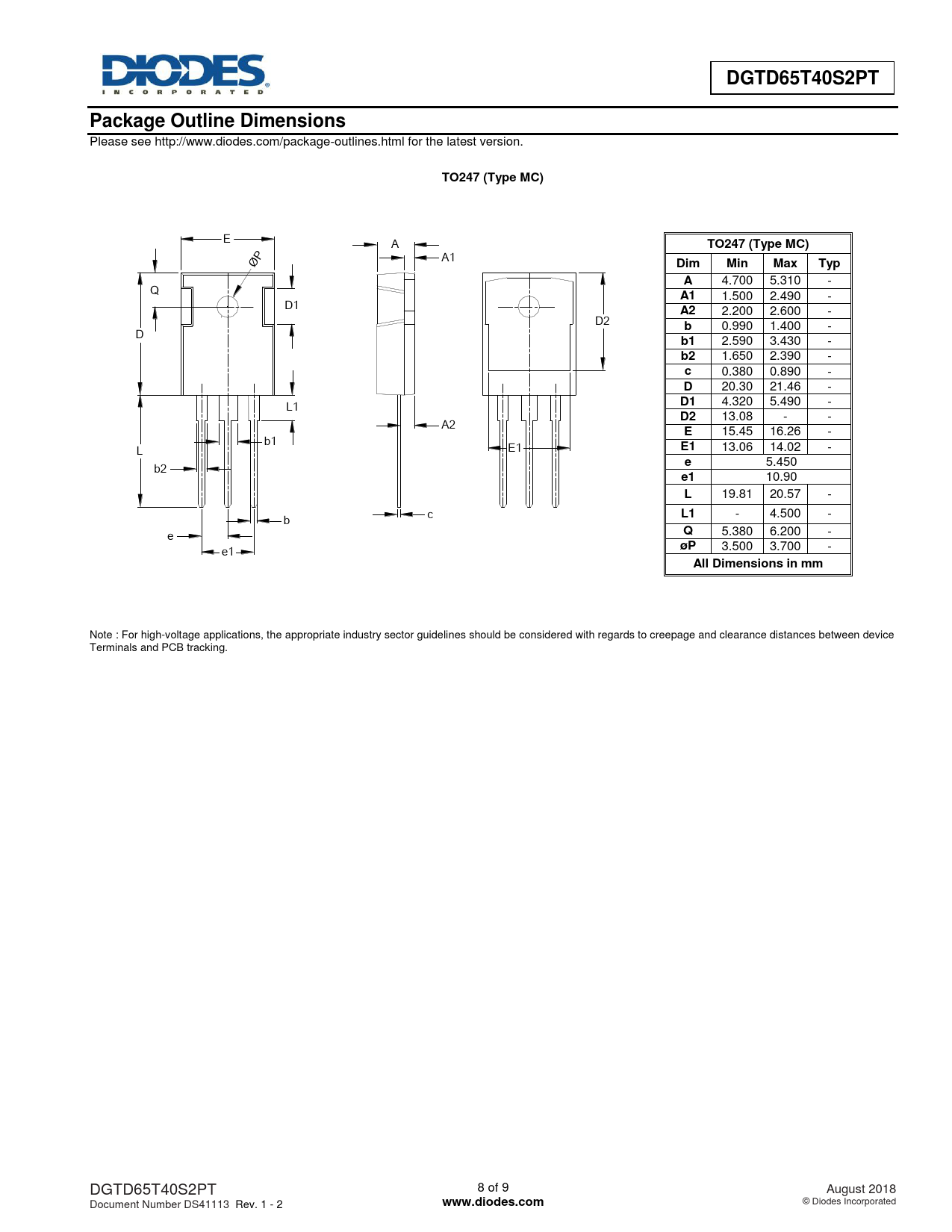

DGTD65T40S2PT Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
TO247 (Type MC)
E A
TO247 (Type MC)
P A1 Ø
Dim Min Max Typ A
4.700 5.310 - Q
A1
1.500 2.490 - D1
A2
2.200 2.600 - D2
b
0.990 1.400 - D
b1
2.590 3.430 -
b2
1.650 2.390 -
c
0.380 0.890 -
D
20.30 21.46 -
D1
4.320 5.490 - L1
D2
13.08 - - A2
E
15.45 16.26 - b1 E1
E1
13.06 14.02 - L
e
5.450 b2
e1
10.90
L
19.81 20.57 - c
L1
- 4.500 - b
Q
5.380 6.200 - e
øP
3.500 3.700 - e1
All Dimensions in mm
Note : For high-voltage applications, the appropriate industry sector guidelines should be considered with regards to creepage and clearance distances between device Terminals and PCB tracking. DGTD65T40S2PT 8 of 9 August 2018 Document Number DS41113 Rev. 1 - 2
