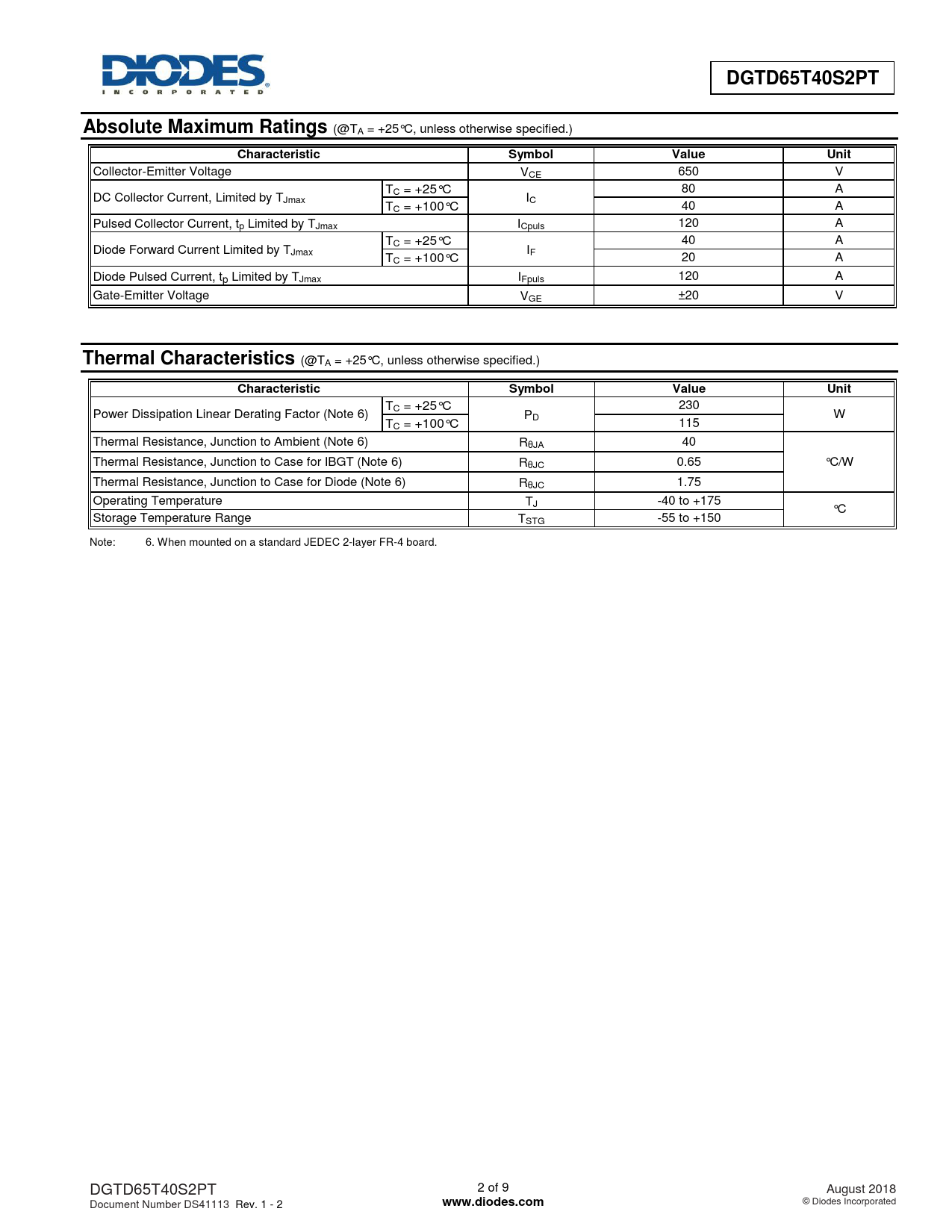

DGTD65T40S2PT. Absolute Maximum Ratings. Characteristic. Symbol. Value. Unit. Thermal Characteristics. www.diodes.com

DGTD65T40S2PT Absolute Maximum Ratings Characteristic Symbol Value Unit Thermal Characteristics www.diodes.com

Modelllinie für dieses Datenblatt

Textversion des Dokuments

DGTD65T40S2PT Absolute Maximum Ratings
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Collector-Emitter Voltage VCE 650 V TC = +25°C 80 A DC Collector Current, Limited by TJmax IC TC = +100°C 40 A Pulsed Collector Current, tp Limited by TJmax ICpuls 120 A TC = +25°C 40 A Diode Forward Current Limited by TJmax IF TC = +100°C 20 A Diode Pulsed Current, tp Limited by TJmax IFpuls 120 A Gate-Emitter Voltage VGE ±20 V
Thermal Characteristics
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
230 Power Dissipation Linear Derating Factor (Note 6) TC = +25°C PD W TC = +100°C 115 Thermal Resistance, Junction to Ambient (Note 6) RθJA 40 Thermal Resistance, Junction to Case for IBGT (Note 6) Rθ °C/W JC 0.65 Thermal Resistance, Junction to Case for Diode (Note 6) RθJC 1.75 Operating Temperature TJ -40 to +175 °C Storage Temperature Range TSTG -55 to +150 Note: 6. When mounted on a standard JEDEC 2-layer FR-4 board. DGTD65T40S2PT 2 of 9 August 2018 Document Number DS41113 Rev. 1 - 2
