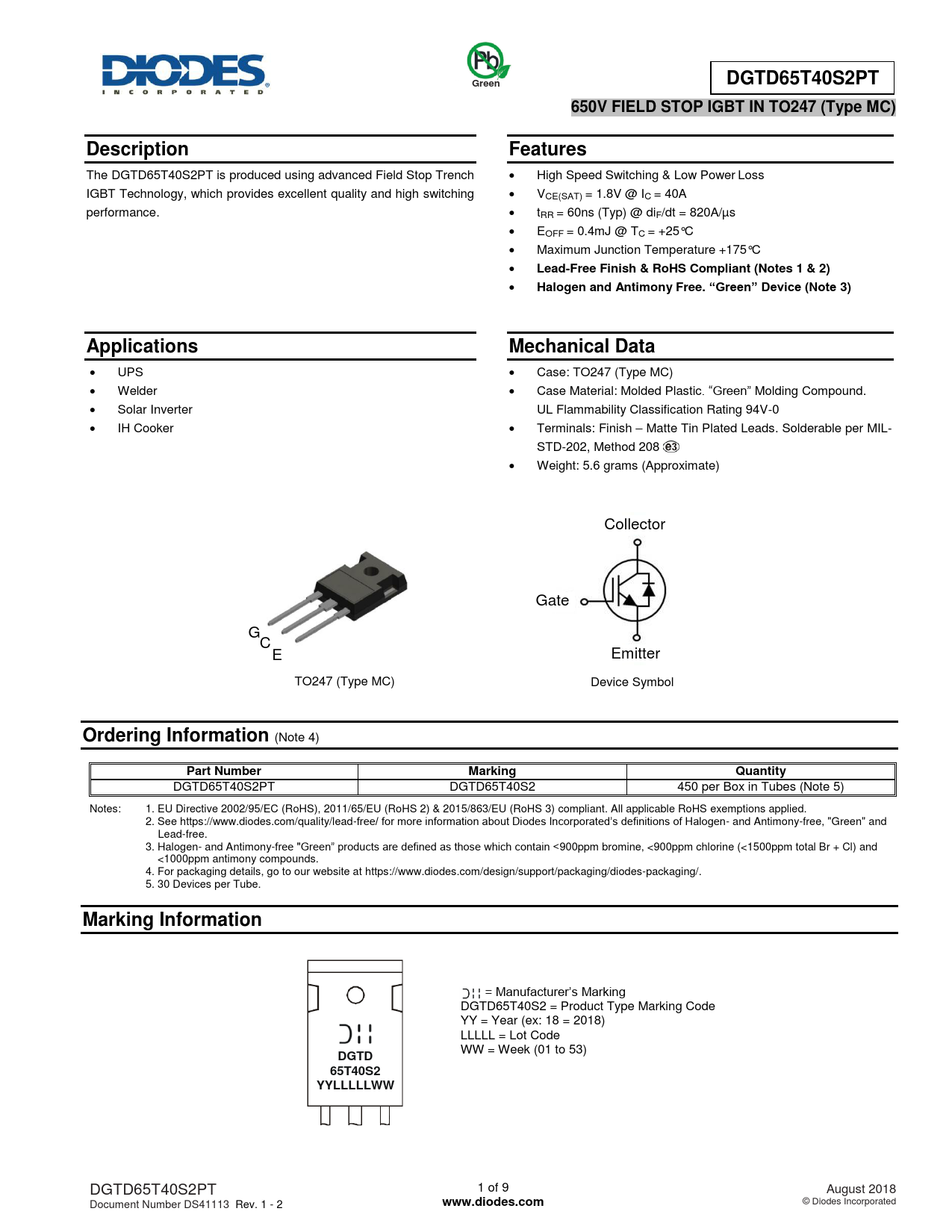

Green DGTD65T40S2PT 650V FIELD STOP IGBT IN TO247 (Type MC) Description Features
The DGTD65T40S2PT is produced using advanced Field Stop Trench High Speed Switching & Low Power Loss IGBT Technology, which provides excellent quality and high switching VCE(SAT) = 1.8V @ IC = 40A performance. tRR = 60ns (Typ) @ diF/dt = 820A/µs EOFF = 0.4mJ @ TC = +25°C Maximum Junction Temperature +175°C
Lead-Free Finish & RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Applications Mechanical Data
UPS Case: TO247 (Type MC) Welder Case Material: Molded Plastic. “Green” Molding Compound. Solar Inverter UL Flammability Classification Rating 94V-0 IH Cooker Terminals: Finish – Matte Tin Plated Leads. Solderable per MIL- STD-202, Method 208 Weight: 5.6 grams (Approximate) Collector Gate G C E Emitter TO247 (Type MC) Device Symbol
Ordering Information
(Note 4)
Part Number Marking Quantity
DGTD65T40S2PT DGTD65T40S2 450 per Box in Tubes (Note 5) Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.dio des.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/. 5. 30 Devices per Tube .
Marking Information
Typical Configuration = Manufacturer’s Marking DGTD65T40S2 = Product Type Marking Code YY = Year (ex: 18 = 2018) LLLLL = Lot Code WW = Week (01 to 53)
DGTD 65T40S2 YYLLLLLWW
DGTD65T40S2PT 1 of 9 August 2018 Document Number DS41113 Rev. 1 - 2
