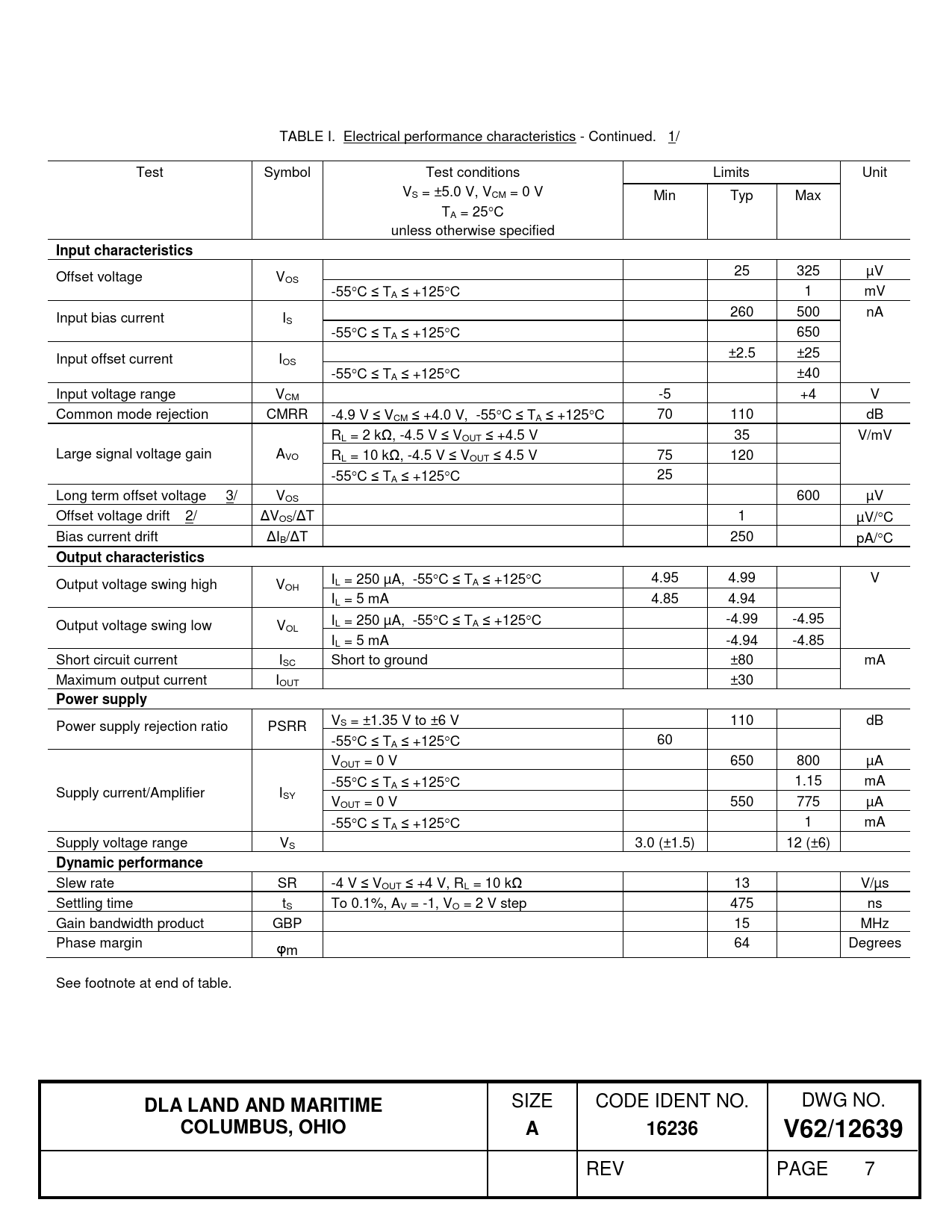

TABLE I. Electrical performance characteristics - Continued. 1/ Test Symbol Test conditions Limits Unit VS = ±5.0 V, VCM = 0 V Min Typ Max TA = 25°C unless otherwise specified Input characteristics Offset voltage VOS 25 325 µV -55°C ≤ TA ≤ +125°C 1 mV Input bias current IS 260 500 nA -55°C ≤ TA ≤ +125°C 650 Input offset current IOS ±2.5 ±25 -55°C ≤ TA ≤ +125°C ±40 Input voltage range VCM -5 +4 V Common mode rejection CMRR -4.9 V ≤ VCM ≤ +4.0 V, -55°C ≤ TA ≤ +125°C 70 110 dB RL = 2 kΩ, -4.5 V ≤ VOUT ≤ +4.5 V 35 V/mV Large signal voltage gain AVO RL = 10 kΩ, -4.5 V ≤ VOUT ≤ 4.5 V 75 120 -55°C ≤ TA ≤ +125°C 25 Long term offset voltage 3/ VOS 600 µV Offset voltage drift 2/ ΔVOS/ΔT 1 µV/°C Bias current drift ΔIB/ΔT 250 pA/°C Output characteristics Output voltage swing high VOH IL = 250 µA, -55°C ≤ TA ≤ +125°C 4.95 4.99 V IL = 5 mA 4.85 4.94 Output voltage swing low VOL IL = 250 µA, -55°C ≤ TA ≤ +125°C -4.99 -4.95 IL = 5 mA -4.94 -4.85 Short circuit current ISC Short to ground ±80 mA Maximum output current IOUT ±30 Power supply Power supply rejection ratio PSRR VS = ±1.35 V to ±6 V 110 dB -55°C ≤ TA ≤ +125°C 60 VOUT = 0 V 650 800 µA -55°C ≤ TA ≤ +125°C 1.15 mA Supply current/Amplifier ISY VOUT = 0 V 550 775 µA -55°C ≤ TA ≤ +125°C 1 mA Supply voltage range VS 3.0 (±1.5) 12 (±6) Dynamic performance Slew rate SR -4 V ≤ VOUT ≤ +4 V, RL = 10 kΩ 13 V/µs Settling time tS To 0.1%, AV = -1, VO = 2 V step 475 ns Gain bandwidth product GBP 15 MHz Phase margin ᵩm 64 Degrees See footnote at end of table. DLA LAND AND MARITIME SIZE CODE IDENT NO. DWG NO. COLUMBUS, OHIOA16236V62/12639 REV PAGE 7 Document Outline DESCRIPTION REV REV PMIC N/A TITLE SIZE A V62/12639 REV
