Datasheet OP262 (Analog Devices) - 8

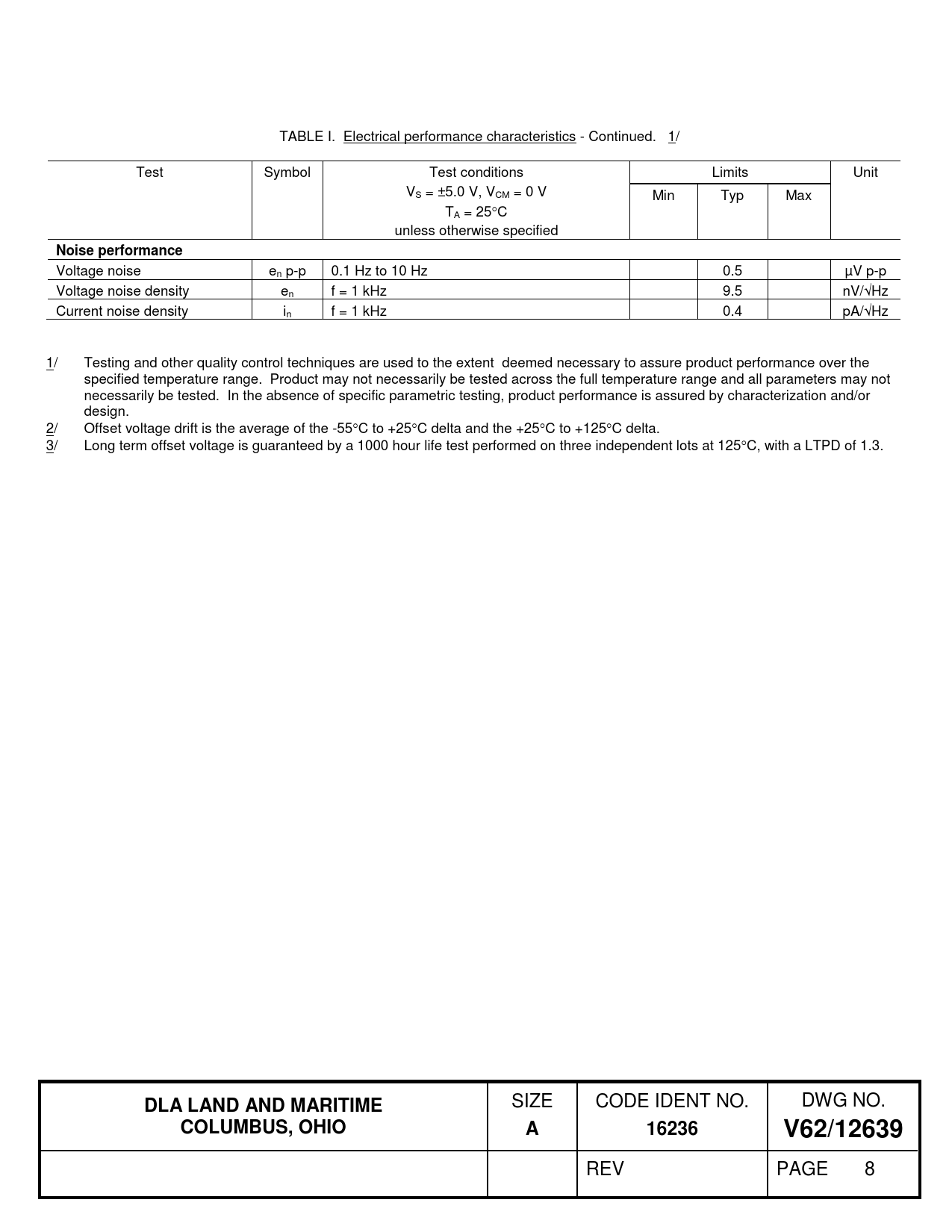

TABLE I. Electrical performance characteristics - Continued. 1/ Test Symbol Test conditions Limits Unit VS = ±5.0 V, VCM = 0 V Min Typ Max TA = 25°C unless otherwise specified
Noise performance
Voltage noise en p-p 0.1 Hz to 10 Hz 0.5 µV p-p Voltage noise density en f = 1 kHz 9.5 nV/√Hz Current noise density in f = 1 kHz 0.4 pA/√Hz 1/ Testing and other quality control techniques are used to the extent deemed necessary to assure product performance over the specified temperature range. Product may not necessarily be tested across the full temperature range and all parameters may not necessarily be tested. In the absence of specific parametric testing, product performance is assured by characterization and/or design. 2/ Offset voltage drift is the average of the -55°C to +25°C delta and the +25°C to +125°C delta. 3/ Long term offset voltage is guaranteed by a 1000 hour life test performed on three independent lots at 125°C, with a LTPD of 1.3.
