| Beschreibung | 15 MHz Rail-to-Rail Operational Dual Op Amp |
| Seiten / Seite | 11 / 6 — Input characteristics. Output characteristics. Power supply. Dynamic … |
| Dateiformat / Größe | PDF / 213 Kb |
| Dokumentensprache | Englisch |
Input characteristics. Output characteristics. Power supply. Dynamic performance. Noise performance. DLA LAND AND MARITIME
Modelllinie für dieses Datenblatt
Textversion des Dokuments

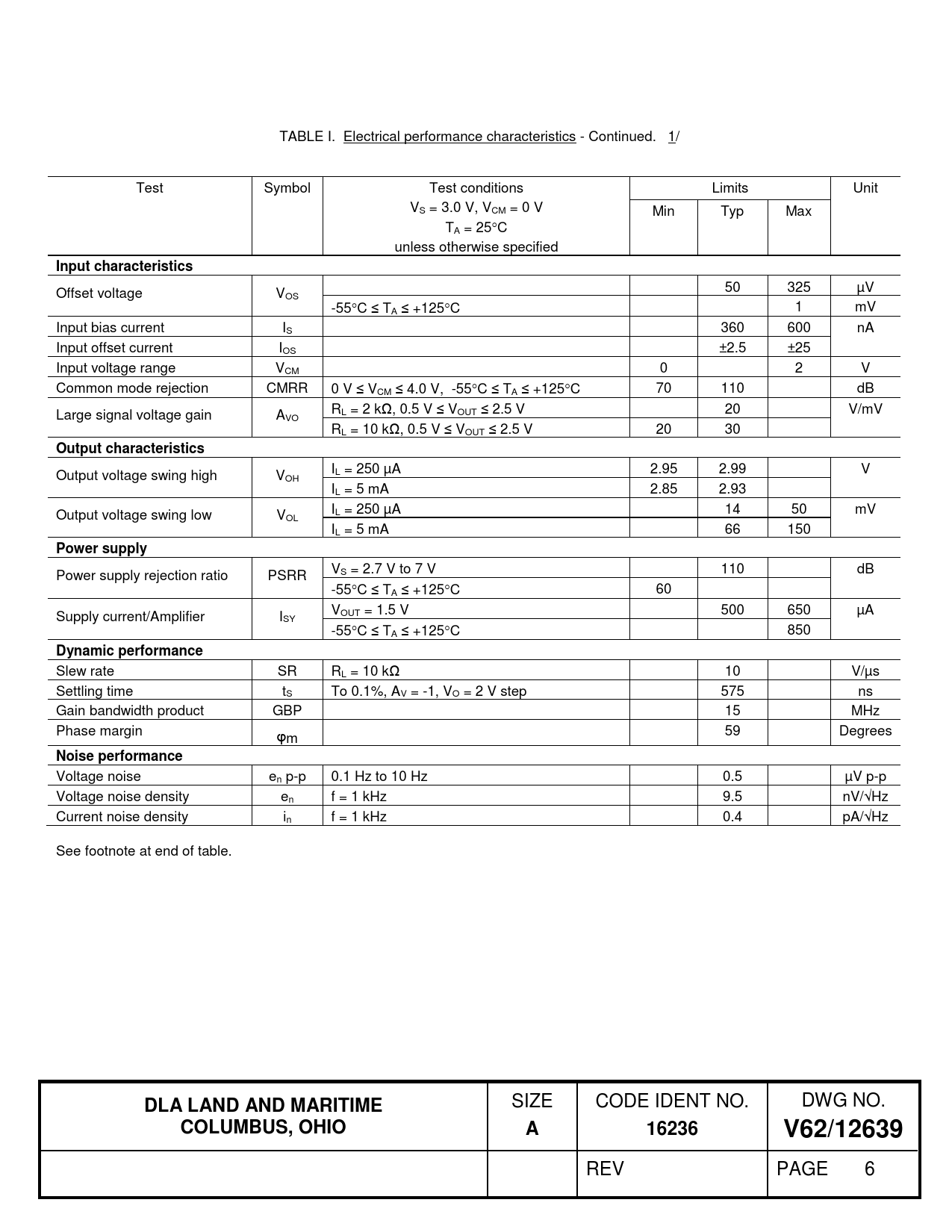

TABLE I. Electrical performance characteristics - Continued. 1/ Test Symbol Test conditions Limits Unit VS = 3.0 V, VCM = 0 V Min Typ Max TA = 25°C unless otherwise specified
Input characteristics
Offset voltage VOS 50 325 µV -55°C ≤ TA ≤ +125°C 1 mV Input bias current IS 360 600 nA Input offset current IOS ±2.5 ±25 Input voltage range VCM 0 2 V Common mode rejection CMRR 0 V ≤ VCM ≤ 4.0 V, -55°C ≤ TA ≤ +125°C 70 110 dB Large signal voltage gain AVO RL = 2 kΩ, 0.5 V ≤ VOUT ≤ 2.5 V 20 V/mV RL = 10 kΩ, 0.5 V ≤ VOUT ≤ 2.5 V 20 30
Output characteristics
Output voltage swing high VOH IL = 250 µA 2.95 2.99 V IL = 5 mA 2.85 2.93 Output voltage swing low VOL IL = 250 µA 14 50 mV IL = 5 mA 66 150
Power supply
Power supply rejection ratio PSRR VS = 2.7 V to 7 V 110 dB -55°C ≤ TA ≤ +125°C 60 Supply current/Amplifier ISY VOUT = 1.5 V 500 650 µA -55°C ≤ TA ≤ +125°C 850
Dynamic performance
Slew rate SR RL = 10 kΩ 10 V/µs Settling time tS To 0.1%, AV = -1, VO = 2 V step 575 ns Gain bandwidth product GBP 15 MHz Phase margin ᵩm 59 Degrees
Noise performance
Voltage noise en p-p 0.1 Hz to 10 Hz 0.5 µV p-p Voltage noise density en f = 1 kHz 9.5 nV/√Hz Current noise density in f = 1 kHz 0.4 pA/√Hz See footnote at end of table.
