Input characteristics. Output characteristics. Power supply. Dynamic performance. Noise performance. DLA LAND AND MARITIME
Modelllinie für dieses Datenblatt
Textversion des Dokuments

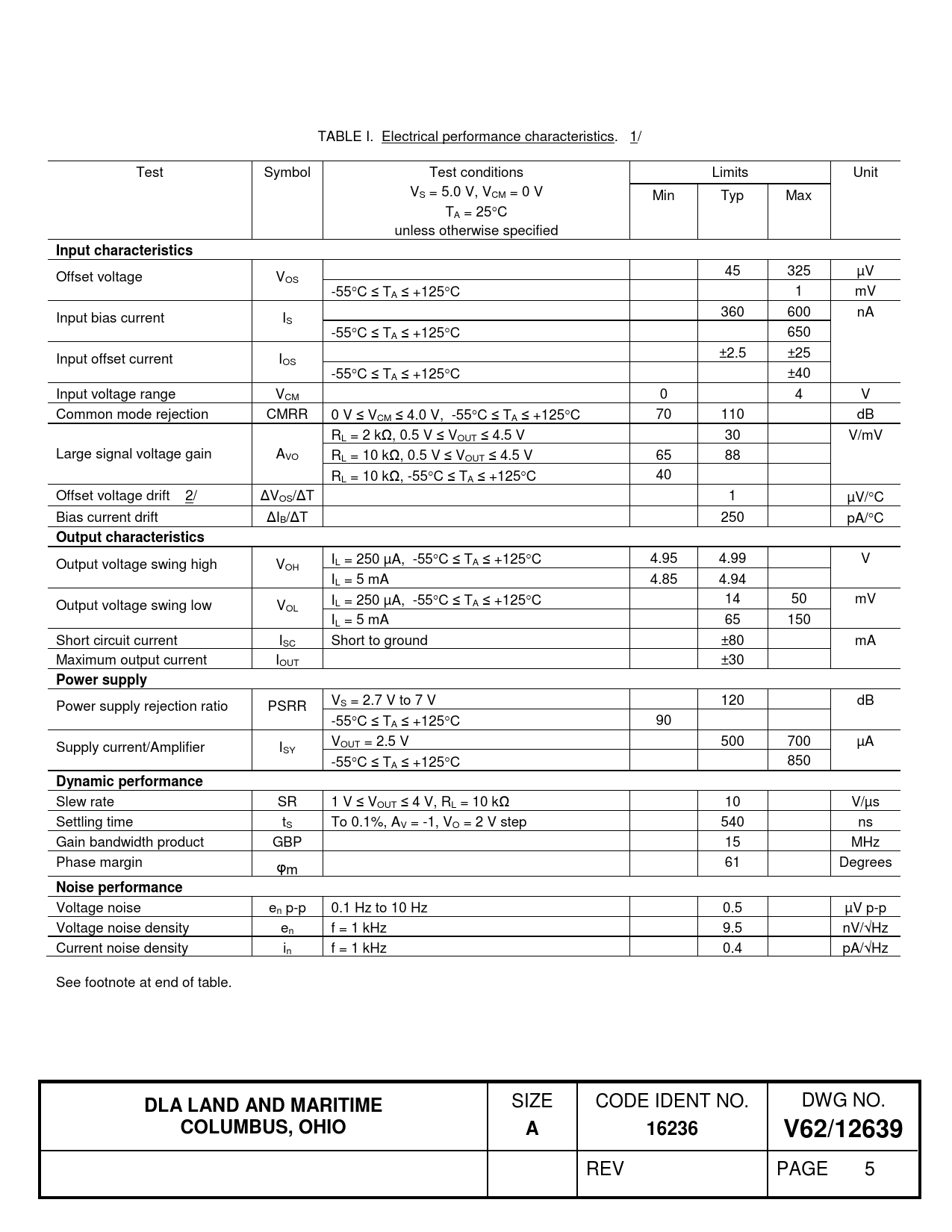

TABLE I. Electrical performance characteristics. 1/ Test Symbol Test conditions Limits Unit VS = 5.0 V, VCM = 0 V Min Typ Max TA = 25°C unless otherwise specified
Input characteristics
Offset voltage VOS 45 325 µV -55°C ≤ TA ≤ +125°C 1 mV Input bias current IS 360 600 nA -55°C ≤ TA ≤ +125°C 650 Input offset current IOS ±2.5 ±25 -55°C ≤ TA ≤ +125°C ±40 Input voltage range VCM 0 4 V Common mode rejection CMRR 0 V ≤ VCM ≤ 4.0 V, -55°C ≤ TA ≤ +125°C 70 110 dB RL = 2 kΩ, 0.5 V ≤ VOUT ≤ 4.5 V 30 V/mV Large signal voltage gain AVO RL = 10 kΩ, 0.5 V ≤ VOUT ≤ 4.5 V 65 88 RL = 10 kΩ, -55°C ≤ TA ≤ +125°C 40 Offset voltage drift 2/ ΔVOS/ΔT 1 µV/°C Bias current drift ΔIB/ΔT 250 pA/°C
Output characteristics
Output voltage swing high VOH IL = 250 µA, -55°C ≤ TA ≤ +125°C 4.95 4.99 V IL = 5 mA 4.85 4.94 Output voltage swing low VOL IL = 250 µA, -55°C ≤ TA ≤ +125°C 14 50 mV IL = 5 mA 65 150 Short circuit current ISC Short to ground ±80 mA Maximum output current IOUT ±30
Power supply
Power supply rejection ratio PSRR VS = 2.7 V to 7 V 120 dB -55°C ≤ TA ≤ +125°C 90 Supply current/Amplifier ISY VOUT = 2.5 V 500 700 µA -55°C ≤ TA ≤ +125°C 850
Dynamic performance
Slew rate SR 1 V ≤ VOUT ≤ 4 V, RL = 10 kΩ 10 V/µs Settling time tS To 0.1%, AV = -1, VO = 2 V step 540 ns Gain bandwidth product GBP 15 MHz Phase margin ᵩm 61 Degrees
Noise performance
Voltage noise en p-p 0.1 Hz to 10 Hz 0.5 µV p-p Voltage noise density en f = 1 kHz 9.5 nV/√Hz Current noise density in f = 1 kHz 0.4 pA/√Hz See footnote at end of table.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/12639
REV PAGE 5 Document Outline DESCRIPTION REV REV PMIC N/A TITLE SIZE A V62/12639 REV
Input characteristics
Offset voltage VOS 45 325 µV -55°C ≤ TA ≤ +125°C 1 mV Input bias current IS 360 600 nA -55°C ≤ TA ≤ +125°C 650 Input offset current IOS ±2.5 ±25 -55°C ≤ TA ≤ +125°C ±40 Input voltage range VCM 0 4 V Common mode rejection CMRR 0 V ≤ VCM ≤ 4.0 V, -55°C ≤ TA ≤ +125°C 70 110 dB RL = 2 kΩ, 0.5 V ≤ VOUT ≤ 4.5 V 30 V/mV Large signal voltage gain AVO RL = 10 kΩ, 0.5 V ≤ VOUT ≤ 4.5 V 65 88 RL = 10 kΩ, -55°C ≤ TA ≤ +125°C 40 Offset voltage drift 2/ ΔVOS/ΔT 1 µV/°C Bias current drift ΔIB/ΔT 250 pA/°C
Output characteristics
Output voltage swing high VOH IL = 250 µA, -55°C ≤ TA ≤ +125°C 4.95 4.99 V IL = 5 mA 4.85 4.94 Output voltage swing low VOL IL = 250 µA, -55°C ≤ TA ≤ +125°C 14 50 mV IL = 5 mA 65 150 Short circuit current ISC Short to ground ±80 mA Maximum output current IOUT ±30
Power supply
Power supply rejection ratio PSRR VS = 2.7 V to 7 V 120 dB -55°C ≤ TA ≤ +125°C 90 Supply current/Amplifier ISY VOUT = 2.5 V 500 700 µA -55°C ≤ TA ≤ +125°C 850
Dynamic performance
Slew rate SR 1 V ≤ VOUT ≤ 4 V, RL = 10 kΩ 10 V/µs Settling time tS To 0.1%, AV = -1, VO = 2 V step 540 ns Gain bandwidth product GBP 15 MHz Phase margin ᵩm 61 Degrees
Noise performance
Voltage noise en p-p 0.1 Hz to 10 Hz 0.5 µV p-p Voltage noise density en f = 1 kHz 9.5 nV/√Hz Current noise density in f = 1 kHz 0.4 pA/√Hz See footnote at end of table.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/12639
REV PAGE 5 Document Outline DESCRIPTION REV REV PMIC N/A TITLE SIZE A V62/12639 REV
