Datasheet ADXRS646 (Analog Devices) - 7
| Hersteller | Analog Devices |
| Beschreibung | High Stability, Low Noise Vibration Rejecting Yaw Rate Gyroscope |
| Seiten / Seite | 9 / 7 — Pin No. Mnemonic. Description. DLA LAND AND MARITIME. COLUMBUS, OHIO. … |
| Dateiformat / Größe | PDF / 218 Kb |
| Dokumentensprache | Englisch |
Pin No. Mnemonic. Description. DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/14618
Modelllinie für dieses Datenblatt
Textversion des Dokuments

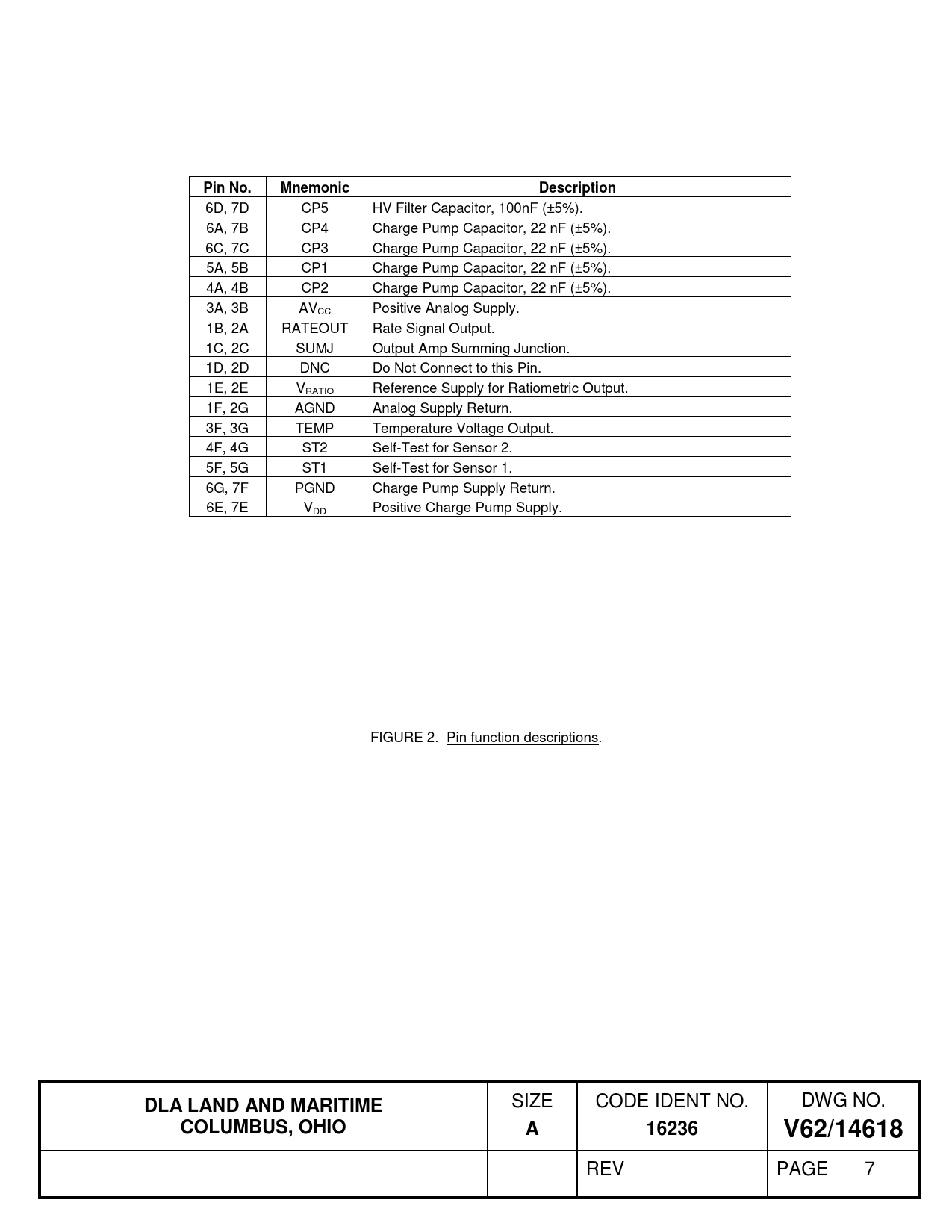

Pin No. Mnemonic Description
6D, 7D CP5 HV Filter Capacitor, 100nF (±5%). 6A, 7B CP4 Charge Pump Capacitor, 22 nF (±5%). 6C, 7C CP3 Charge Pump Capacitor, 22 nF (±5%). 5A, 5B CP1 Charge Pump Capacitor, 22 nF (±5%). 4A, 4B CP2 Charge Pump Capacitor, 22 nF (±5%). 3A, 3B AVCC Positive Analog Supply. 1B, 2A RATEOUT Rate Signal Output. 1C, 2C SUMJ Output Amp Summing Junction. 1D, 2D DNC Do Not Connect to this Pin. 1E, 2E VRATIO Reference Supply for Ratiometric Output. 1F, 2G AGND Analog Supply Return. 3F, 3G TEMP Temperature Voltage Output. 4F, 4G ST2 Self-Test for Sensor 2. 5F, 5G ST1 Self-Test for Sensor 1. 6G, 7F PGND Charge Pump Supply Return. 6E, 7E VDD Positive Charge Pump Supply. FIGURE 2. Pin function descriptions.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/14618
REV PAGE 7 Document Outline DESCRIPTION REV REV PMIC N/A TITLE SIZE A V62/14618 REV
