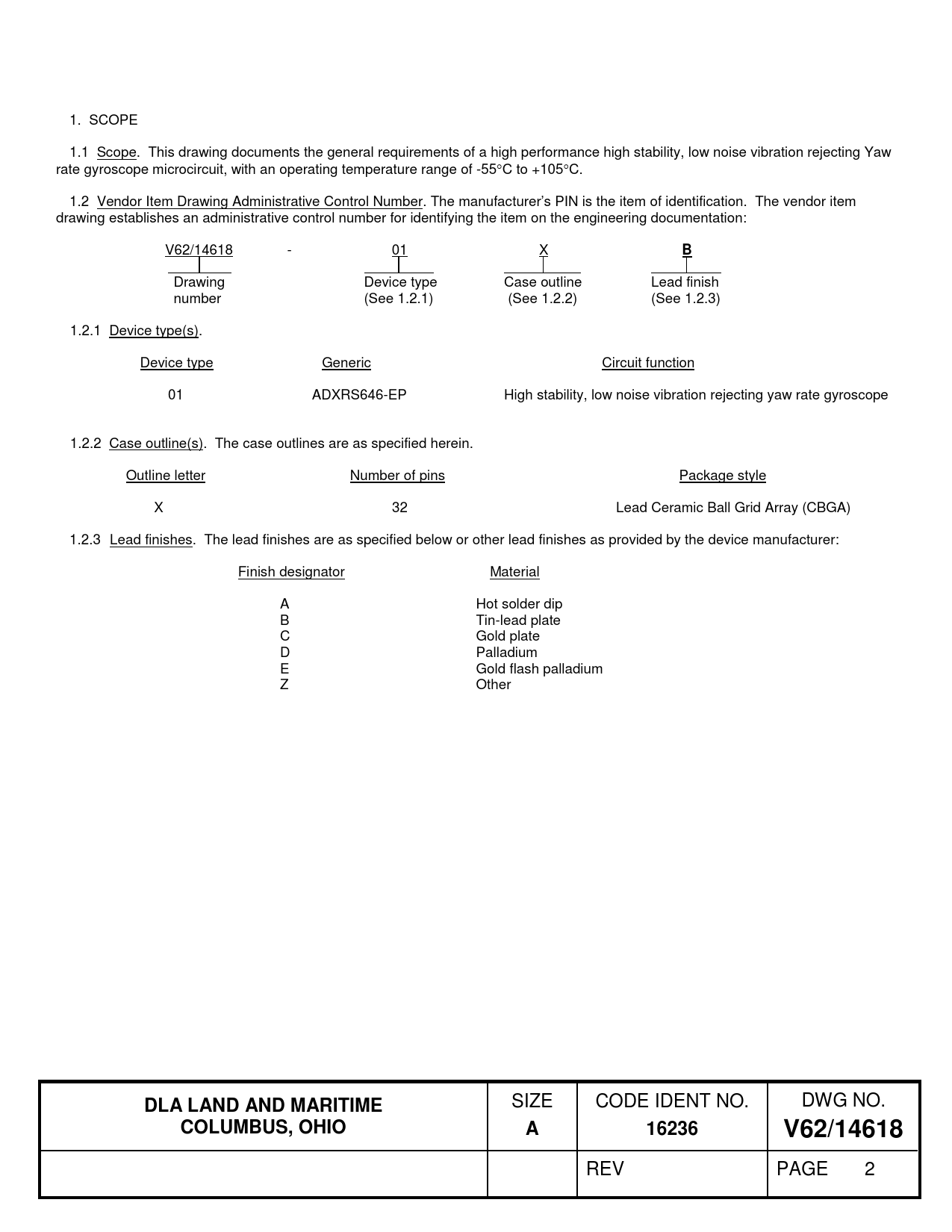

1. SCOPE 1.1 Scope. This drawing documents the general requirements of a high performance high stability, low noise vibration rejecting Yaw rate gyroscope microcircuit, with an operating temperature range of -55°C to +105°C. 1.2 Vendor Item Drawing Administrative Control Number. The manufacturer’s PIN is the item of identification. The vendor item drawing establishes an administrative control number for identifying the item on the engineering documentation: V62/14618 - 01 X
B
Drawing Device type Case outline Lead finish number (See 1.2.1) (See 1.2.2) (See 1.2.3) 1.2.1 Device type(s). Device type Generic Circuit function 01 ADXRS646-EP High stability, low noise vibration rejecting yaw rate gyroscope 1.2.2 Case outline(s). The case outlines are as specified herein. Outline letter Number of pins Package style X 32 Lead Ceramic Ball Grid Array (CBGA) 1.2.3 Lead finishes. The lead finishes are as specified below or other lead finishes as provided by the device manufacturer: Finish designator Material A Hot solder dip B Tin-lead plate C Gold plate D Palladium E Gold flash palladium Z Other
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/14618
REV PAGE 2 Document Outline DESCRIPTION REV REV PMIC N/A TITLE SIZE A V62/14618 REV
