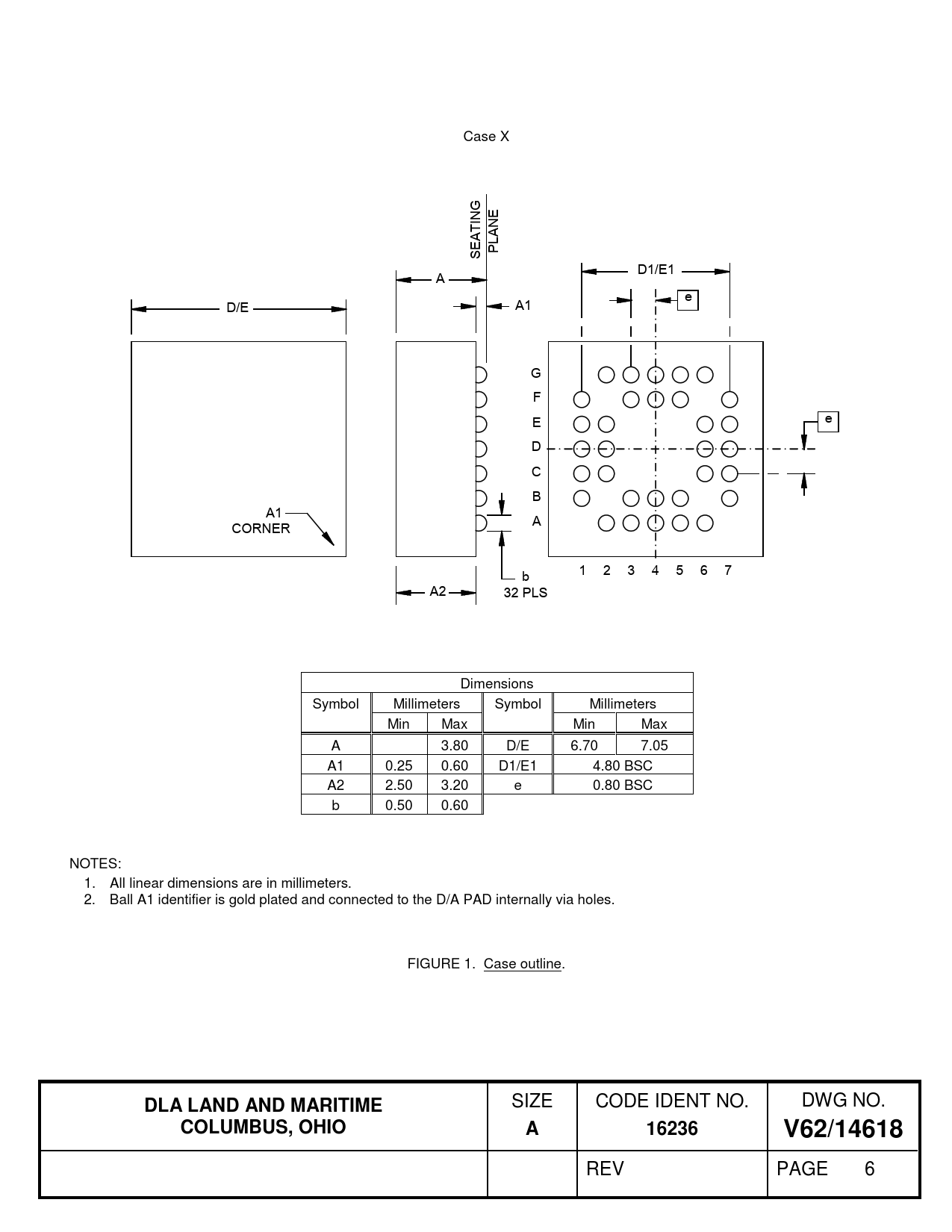

Case X G E SEATIN PLAN D1/E1 A e D/E A1 G F e E D C B A1 A CORNER 1 2 3 4 5 6 7 b A2 32 PLS Dimensions Symbol Millimeters Symbol Millimeters Min Max Min Max A 3.80 D/E 6.70 7.05 A1 0.25 0.60 D1/E1 4.80 BSC A2 2.50 3.20 e 0.80 BSC b 0.50 0.60 NOTES: 1. All linear dimensions are in millimeters. 2. Ball A1 identifier is gold plated and connected to the D/A PAD internally via holes. FIGURE 1. Case outline.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/14618
REV PAGE 6 Document Outline DESCRIPTION REV REV PMIC N/A TITLE SIZE A V62/14618 REV
