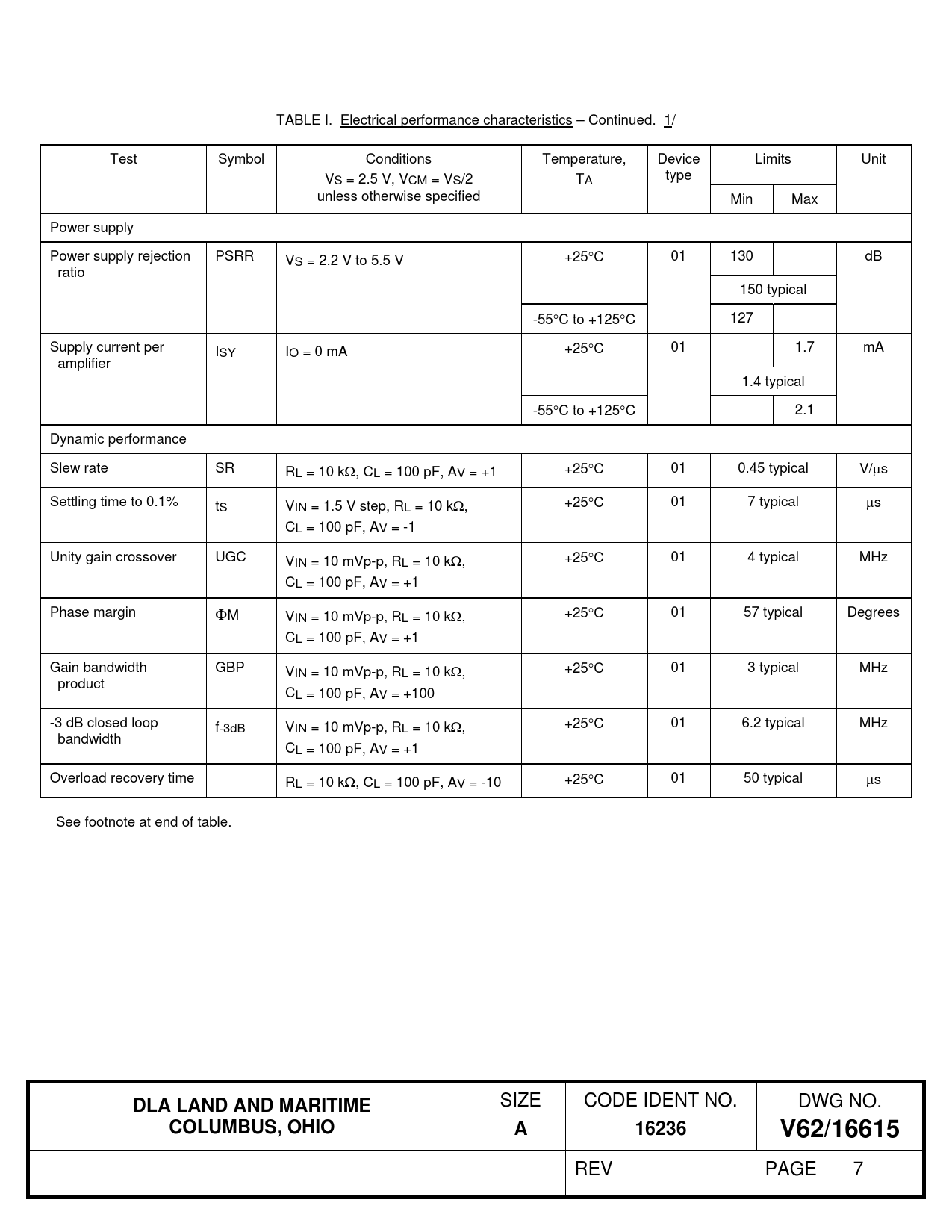

TABLE I. Electrical performance characteristics – Continued. 1/ Test Symbol Conditions Temperature, Device Limits Unit VS = 2.5 V, VCM = VS/2 TA type unless otherwise specified Min Max Power supply Power supply rejection PSRR VS = 2.2 V to 5.5 V +25C 01 130 dB ratio 150 typical -55C to +125C 127 Supply current per ISY IO = 0 mA +25C 01 1.7 mA amplifier 1.4 typical -55C to +125C 2.1 Dynamic performance Slew rate SR RL = 10 k, CL = 100 pF, AV = +1 +25C 01 0.45 typical V/s Settling time to 0.1% tS VIN = 1.5 V step, RL = 10 k, +25C 01 7 typical s CL = 100 pF, AV = -1 Unity gain crossover UGC VIN = 10 mVp-p, RL = 10 k, +25C 01 4 typical MHz CL = 100 pF, AV = +1 Phase margin M VIN = 10 mVp-p, RL = 10 k, +25C 01 57 typical Degrees CL = 100 pF, AV = +1 Gain bandwidth GBP VIN = 10 mVp-p, RL = 10 k, +25C 01 3 typical MHz product CL = 100 pF, AV = +100 -3 dB closed loop f-3dB VIN = 10 mVp-p, RL = 10 k, +25C 01 6.2 typical MHz bandwidth CL = 100 pF, AV = +1 Overload recovery time RL = 10 k, CL = 100 pF, AV = -10 +25C 01 50 typical s See footnote at end of table.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/16615
REV PAGE 7
