Datasheet ADA4528-2 (Analog Devices) - 10

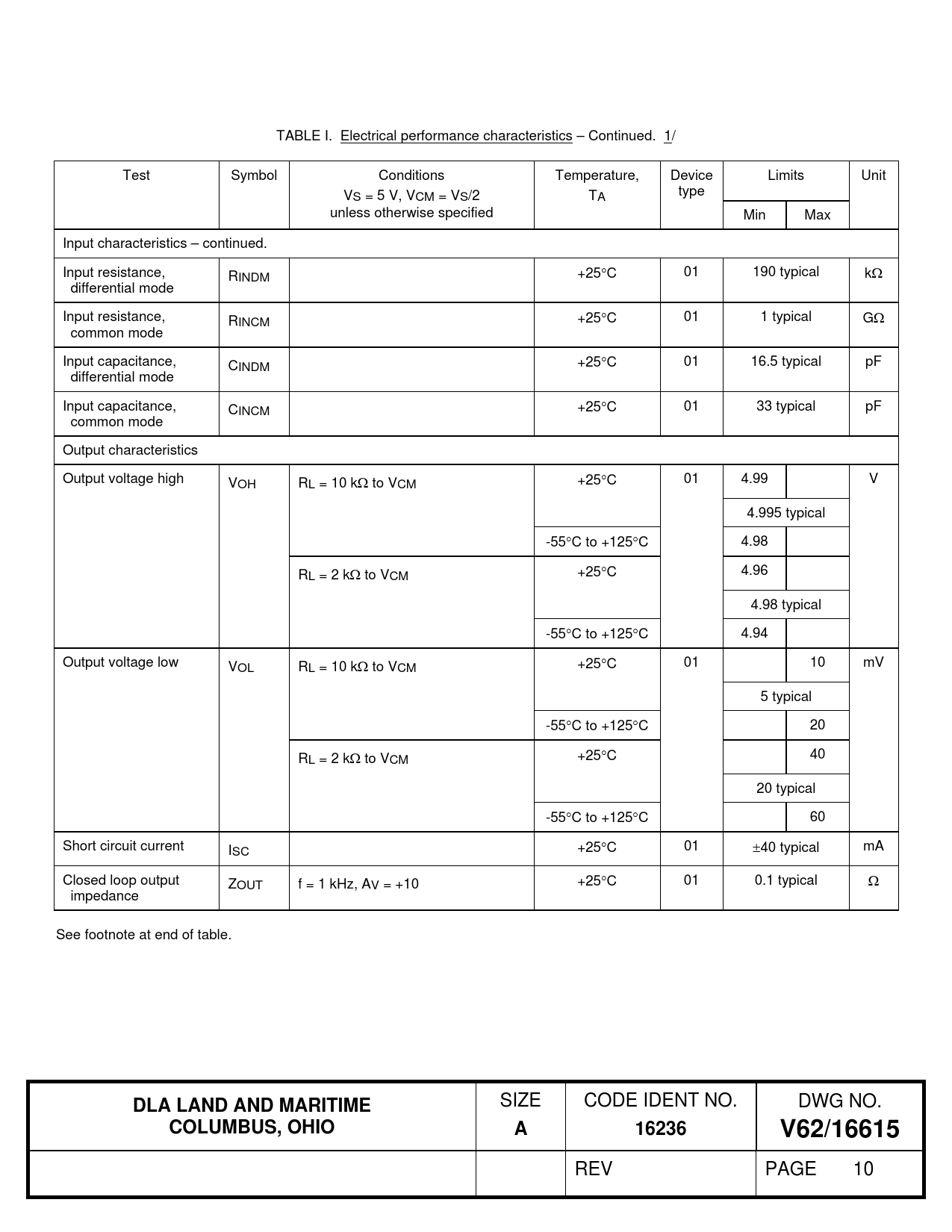

TABLE I. Electrical performance characteristics – Continued. 1/ Test Symbol Conditions Temperature, Device Limits Unit VS = 5 V, VCM = VS/2 TA type unless otherwise specified Min Max Input characteristics – continued. Input resistance, RINDM +25C 01 190 typical k differential mode Input resistance, RINCM +25C 01 1 typical G common mode Input capacitance, CINDM +25C 01 16.5 typical pF differential mode Input capacitance, CINCM +25C 01 33 typical pF common mode Output characteristics Output voltage high VOH RL = 10 k to VCM +25C 01 4.99 V 4.995 typical -55C to +125C 4.98 RL = 2 k to VCM +25C 4.96 4.98 typical -55C to +125C 4.94 Output voltage low VOL RL = 10 k to VCM +25C 01 10 mV 5 typical -55C to +125C 20 RL = 2 k to VCM +25C 40 20 typical -55C to +125C 60 Short circuit current ISC +25C 01 40 typical mA Closed loop output ZOUT f = 1 kHz, AV = +10 +25C 01 0.1 typical impedance See footnote at end of table.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/16615
REV PAGE 10
