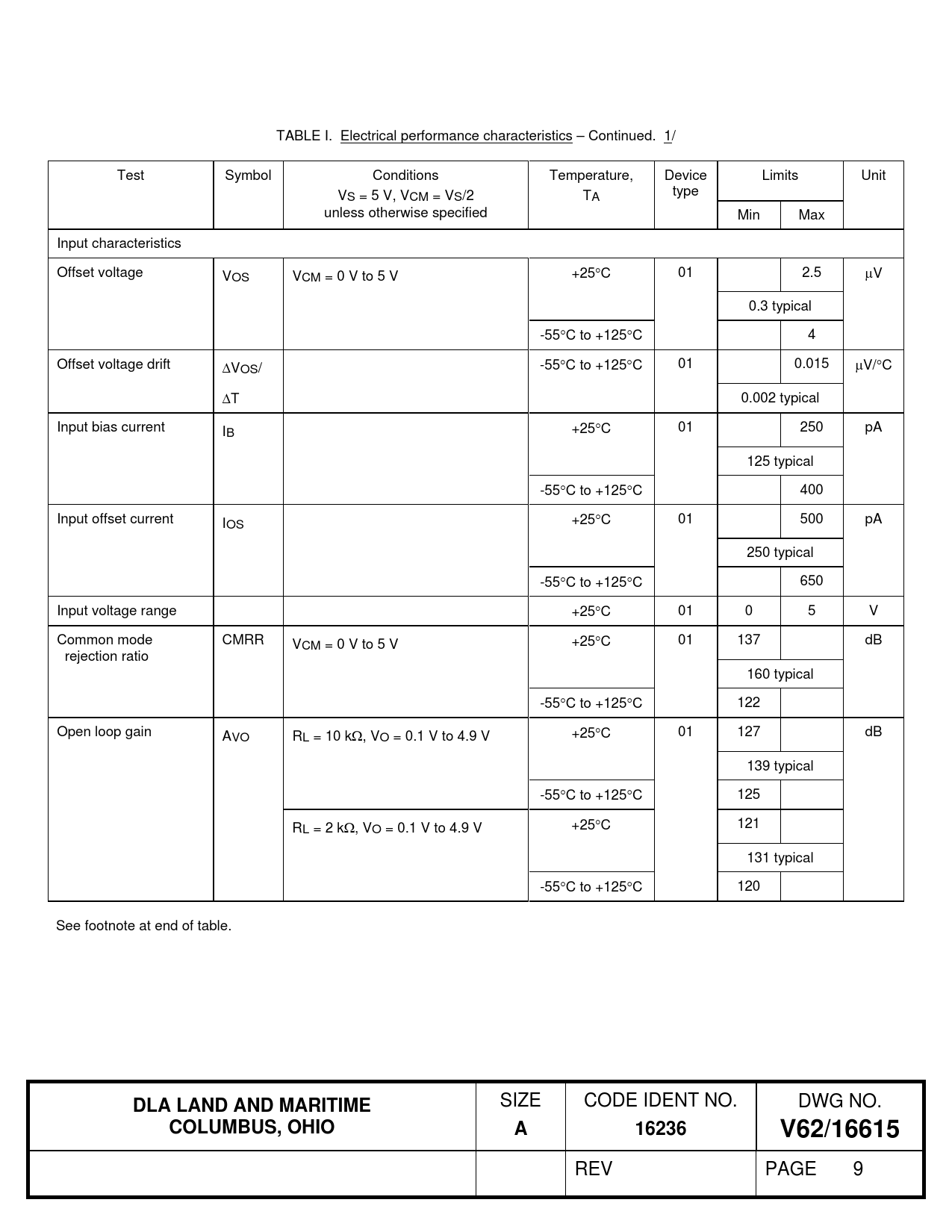

TABLE I. Electrical performance characteristics – Continued. 1/ Test Symbol Conditions Temperature, Device Limits Unit VS = 5 V, VCM = VS/2 TA type unless otherwise specified Min Max Input characteristics Offset voltage VOS VCM = 0 V to 5 V +25C 01 2.5 V 0.3 typical -55C to +125C 4 Offset voltage drift VOS/ -55C to +125C 01 0.015 V/C T 0.002 typical Input bias current IB +25C 01 250 pA 125 typical -55C to +125C 400 Input offset current IOS +25C 01 500 pA 250 typical -55C to +125C 650 Input voltage range +25C 01 0 5 V Common mode CMRR VCM = 0 V to 5 V +25C 01 137 dB rejection ratio 160 typical -55C to +125C 122 Open loop gain AVO RL = 10 k, VO = 0.1 V to 4.9 V +25C 01 127 dB 139 typical -55C to +125C 125 RL = 2 k, VO = 0.1 V to 4.9 V +25C 121 131 typical -55C to +125C 120 See footnote at end of table.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/16615
REV PAGE 9
