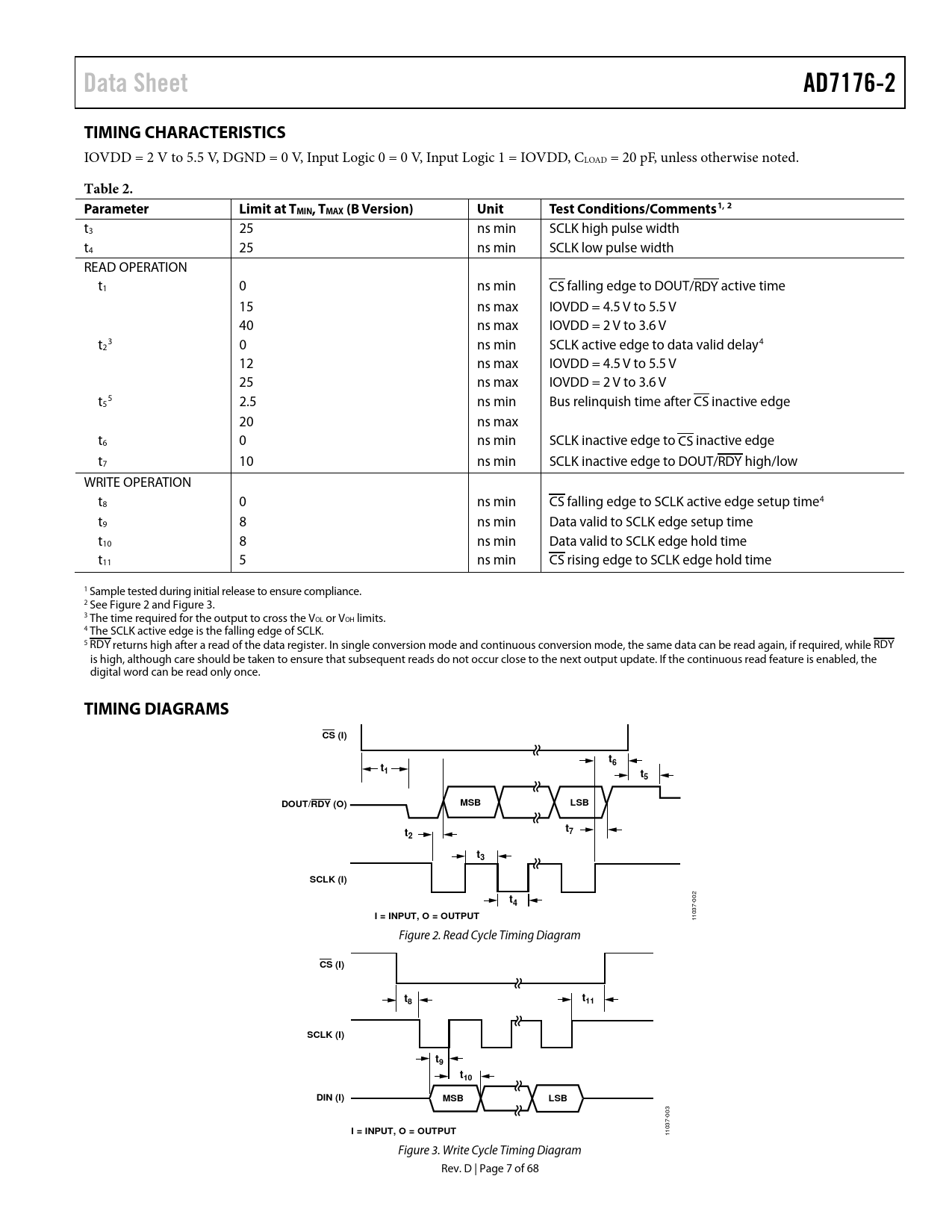

Data Sheet AD7176-2 TIMING CHARACTERISTICS
IOVDD = 2 V to 5.5 V, DGND = 0 V, Input Logic 0 = 0 V, Input Logic 1 = IOVDD, CLOAD = 20 pF, unless otherwise noted.
Table 2. Parameter Limit at TMIN, TMAX (B Version) Unit Test Conditions/Comments1, 2
t3 25 ns min SCLK high pulse width t4 25 ns min SCLK low pulse width READ OPERATION t1 0 ns min CS falling edge to DOUT/RDY active time 15 ns max IOVDD = 4.5 V to 5.5 V 40 ns max IOVDD = 2 V to 3.6 V t 3 2 0 ns min SCLK active edge to data valid delay4 12 ns max IOVDD = 4.5 V to 5.5 V 25 ns max IOVDD = 2 V to 3.6 V t 5 5 2.5 ns min Bus relinquish time after CS inactive edge 20 ns max t6 0 ns min SCLK inactive edge to CS inactive edge t7 10 ns min SCLK inactive edge to DOUT/RDY high/low WRITE OPERATION t8 0 ns min CS falling edge to SCLK active edge setup time4 t9 8 ns min Data valid to SCLK edge setup time t10 8 ns min Data valid to SCLK edge hold time t11 5 ns min CS rising edge to SCLK edge hold time 1 Sample tested during initial release to ensure compliance. 2 See Figure 2 and Figure 3. 3 The time required for the output to cross the VOL or VOH limits. 4 The SCLK active edge is the falling edge of SCLK. 5 RDY returns high after a read of the data register. In single conversion mode and continuous conversion mode, the same data can be read again, if required, while RDY is high, although care should be taken to ensure that subsequent reads do not occur close to the next output update. If the continuous read feature is enabled, the digital word can be read only once.
TIMING DIAGRAMS CS (I) t6 t1 t5 DOUT/RDY (O) MSB LSB t t7 2 t3 SCLK (I) t4
002
I = INPUT, O = OUTPUT
1037- 1 Figure 2. Read Cycle Timing Diagram
CS (I) t t 8 11 SCLK (I) t9 t10 DIN (I) MSB LSB
003
I = INPUT, O = OUTPUT
1037- 1 Figure 3. Write Cycle Timing Diagram Rev. D | Page 7 of 68 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING CHARACTERISTICS TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS NOISE PERFORMANCE AND RESOLUTION GETTING STARTED POWER SUPPLIES DIGITAL COMMUNICATION Accessing the ADC Register Map AD7176-2 RESET CONFIGURATION OVERVIEW Channel Configuration Channel Registers ADC Setups Setup Configuration Registers Filter Configuration Registers Offset Registers Gain Registers ADC Mode and Interface Mode Configuration ADC Mode Register Interface Mode Register Understanding Configuration Flexibility CIRCUIT DESCRIPTION ANALOG INPUT Fully Differential Inputs Pseudo Differential Inputs DRIVER AMPLIFIERS AD8475 AD8656 ADA4940-1/ADA4940-2 AD7176-2 REFERENCE External Reference Internal Reference AD7176-2 CLOCK SOURCE Internal Oscillator External Crystal External Clock DIGITAL FILTERS SINC5 + SINC1 FILTER SINC3 FILTER SINGLE CYCLE SETTLING ENHANCED 50 HZ AND 60 HZ REJECTION FILTERS OPERATING MODES CONTINUOUS CONVERSION MODE CONTINUOUS READ MODE SINGLE CONVERSION MODE STANDBY AND POWER-DOWN MODES CALIBRATION MODES DIGITAL INTERFACE CHECKSUM PROTECTION CRC CALCULATION Polynomial Example of a Polynomial CRC Calculation—24-Bit Word: 0x654321 (Eight Command Bits and 16-Bit Data) XOR Calculation Example of an XOR Calculation—24-Bit Word: 0x654321 (Eight Command Bits and 16-Bit Data) INTEGRATED FUNCTIONS GENERAL-PURPOSE I/O EXTERNAL MULTIPLEXER CONTROL DELAY 16-BIT/24-BIT CONVERSIONS SERIAL INTERFACE RESET (DOUT_RESET) SYNCHRONIZATION (SYNC\/ERROR\) ERROR FLAGS ADC_ERROR CRC_ERROR REG_ERROR Pin DATA_STAT IOSTRENTGH GROUNDING AND LAYOUT REGISTER SUMMARY REGISTER DETAILS COMMUNICATIONS REGISTER STATUS REGISTER ADC MODE REGISTER INTERFACE MODE REGISTER REGISTER CHECK DATA REGISTER GPIO CONFIGURATION REGISTER ID REGISTER CHANNEL MAP REGISTER 0 CHANNEL MAP REGISTER 1 CHANNEL MAP REGISTER 2 CHANNEL MAP REGISTER 3 SETUP CONFIGURATION REGISTER 0 SETUP CONFIGURATION REGISTER 1 SETUP CONFIGURATION REGISTER 2 SETUP CONFIGURATION REGISTER 3 FILTER CONFIGURATION REGISTER 0 FILTER CONFIGURATION REGISTER 1 FILTER CONFIGURATION REGISTER 2 FILTER CONFIGURATION REGISTER 3 OFFSET REGISTER 0 OFFSET REGISTER 1 OFFSET REGISTER 2 OFFSET REGISTER 3 GAIN REGISTER 0 GAIN REGISTER 1 GAIN REGISTER 2 GAIN REGISTER 3 OUTLINE DIMENSIONS ORDERING GUIDE
