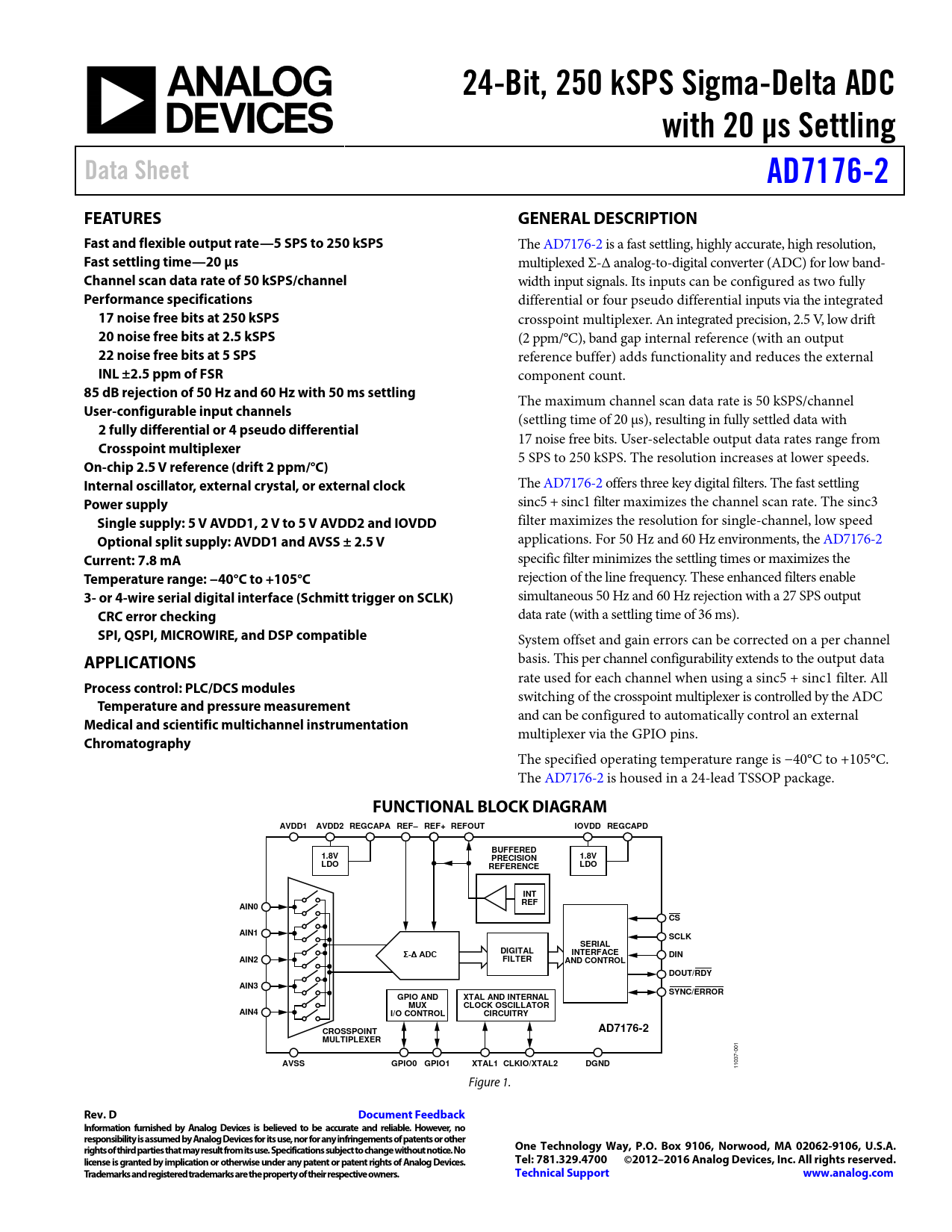

24-Bit, 250 kSPS Sigma-Delta ADC with 20 µs Settling Data Sheet AD7176-2 FEATURES GENERAL DESCRIPTION Fast and flexible output rate—5 SPS to 250 kSPS
The AD7176-2 is a fast settling, highly accurate, high resolution,
Fast settling time—20 µs
multiplexed Σ-Δ analog-to-digital converter (ADC) for low band-
Channel scan data rate of 50 kSPS/channel
width input signals. Its inputs can be configured as two fully
Performance specifications
differential or four pseudo differential inputs via the integrated
17 noise free bits at 250 kSPS
crosspoint multiplexer. An integrated precision, 2.5 V, low drift
20 noise free bits at 2.5 kSPS
(2 ppm/°C), band gap internal reference (with an output
22 noise free bits at 5 SPS
reference buffer) adds functionality and reduces the external
INL ±2.5 ppm of FSR
component count.
85 dB rejection of 50 Hz and 60 Hz with 50 ms settling
The maximum channel scan data rate is 50 kSPS/channel
User-configurable input channels
(settling time of 20 µs), resulting in ful y settled data with
2 fully differential or 4 pseudo differential
17 noise free bits. User-selectable output data rates range from
Crosspoint multiplexer
5 SPS to 250 kSPS. The resolution increases at lower speeds.
On-chip 2.5 V reference (drift 2 ppm/°C) Internal oscillator, external crystal, or external clock
The AD7176-2 offers three key digital filters. The fast settling
Power supply
sinc5 + sinc1 filter maximizes the channel scan rate. The sinc3
Single supply: 5 V AVDD1, 2 V to 5 V AVDD2 and IOVDD
filter maximizes the resolution for single-channel, low speed
Optional split supply: AVDD1 and AVSS ± 2.5 V
applications. For 50 Hz and 60 Hz environments, the AD7176-2
Current: 7.8 mA
specific filter minimizes the settling times or maximizes the
Temperature range: −40°C to +105°C
rejection of the line frequency. These enhanced filters enable
3- or 4-wire serial digital interface (Schmitt trigger on SCLK)
simultaneous 50 Hz and 60 Hz rejection with a 27 SPS output
CRC error checking
data rate (with a settling time of 36 ms).
SPI, QSPI, MICROWIRE, and DSP compatible
System offset and gain errors can be corrected on a per channel
APPLICATIONS
basis. This per channel configurability extends to the output data rate used for each channel when using a sinc5 + sinc1 filter. All
Process control: PLC/DCS modules
switching of the crosspoint multiplexer is controlled by the ADC
Temperature and pressure measurement
and can be configured to automatical y control an external
Medical and scientific multichannel instrumentation
multiplexer via the GPIO pins.
Chromatography
The specified operating temperature range is −40°C to +105°C. The AD7176-2 is housed in a 24-lead TSSOP package.
FUNCTIONAL BLOCK DIAGRAM AVDD1 AVDD2 REGCAPA REF– REF+ REFOUT IOVDD REGCAPD BUFFERED 1.8V 1.8V PRECISION LDO LDO REFERENCE INT REF AIN0 CS AIN1 SCLK SERIAL Σ-Δ ADC DIGITAL INTERFACE DIN AIN2 FILTER AND CONTROL DOUT/RDY AIN3 SYNC/ERROR GPIO AND XTAL AND INTERNAL MUX CLOCK OSCILLATOR AIN4 I/O CONTROL CIRCUITRY CROSSPOINT AD7176-2 MULTIPLEXER
001
AVSS GPIO0 GPIO1 XTAL1 CLKIO/XTAL2 DGND
1037- 1 Figure 1.
