Datasheet LT5400 (Analog Devices) - 2
| Hersteller | Analog Devices |
| Beschreibung | Quad Matched Resistor Network |
| Seiten / Seite | 12 / 2 — absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). available opTions … |
| Dateiformat / Größe | PDF / 260 Kb |
| Dokumentensprache | Englisch |
absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). available opTions PART NUMBER. R2 = R3 (Ω). R1 = R4 (Ω). RESISTOR RATIO
Modelllinie für dieses Datenblatt
- LT5400ACMS8E-1#PBF LT5400ACMS8E-1#TRPBF LT5400ACMS8E-2#PBF LT5400ACMS8E-2#TRPBF LT5400ACMS8E-3#PBF LT5400ACMS8E-3#TRPBF LT5400ACMS8E-4#PBF LT5400ACMS8E-4#TRPBF LT5400ACMS8E-5#PBF LT5400ACMS8E-5#TRPBF LT5400AHMS8E-1#PBF LT5400AHMS8E-1#TRPBF LT5400AHMS8E-2#PBF LT5400AHMS8E-2#TRPBF LT5400AHMS8E-3#PBF LT5400AHMS8E-3#TRPBF LT5400AHMS8E-4#PBF LT5400AHMS8E-4#TRPBF LT5400AIMS8E-1#PBF LT5400AIMS8E-1#TRPBF LT5400AIMS8E-2#PBF LT5400AIMS8E-2#TRPBF LT5400AIMS8E-3#PBF LT5400AIMS8E-3#TRPBF LT5400AIMS8E-4#PBF LT5400AIMS8E-4#TRPBF LT5400AIMS8E-5#PBF LT5400AIMS8E-5#TRPBF LT5400BCMS8E-1#PBF LT5400BCMS8E-1#TRPBF LT5400BCMS8E-2#PBF LT5400BCMS8E-2#TRPBF LT5400BCMS8E-3#PBF LT5400BCMS8E-3#TRPBF LT5400BCMS8E-4#PBF LT5400BCMS8E-4#TRPBF LT5400BCMS8E-5#PBF LT5400BCMS8E-5#TRPBF LT5400BCMS8E-6#PBF LT5400BCMS8E-6#TRPBF LT5400BCMS8E-7#PBF LT5400BCMS8E-7#TRPBF LT5400BCMS8E-8#PBF LT5400BCMS8E-8#TRPBF LT5400BHMS8E-1#PBF LT5400BHMS8E-1#TRPBF LT5400BHMS8E-2#PBF LT5400BHMS8E-2#TRPBF LT5400BHMS8E-3#PBF LT5400BHMS8E-3#TRPBF LT5400BHMS8E-4#PBF LT5400BHMS8E-4#TRPBF LT5400BHMS8E-6#PBF LT5400BHMS8E-6#TRPBF LT5400BHMS8E-7#PBF LT5400BHMS8E-7#TRPBF LT5400BHMS8E-8#PBF LT5400BHMS8E-8#TRPBF LT5400BIMS8E-1#PBF LT5400BIMS8E-1#TRPBF LT5400BIMS8E-2#PBF LT5400BIMS8E-2#TRPBF LT5400BIMS8E-3#PBF LT5400BIMS8E-3#TRPBF LT5400BIMS8E-4#PBF LT5400BIMS8E-4#TRPBF LT5400BIMS8E-5#PBF LT5400BIMS8E-5#TRPBF LT5400BIMS8E-6#PBF LT5400BIMS8E-6#TRPBF LT5400BIMS8E-7#PBF LT5400BIMS8E-7#TRPBF LT5400BIMS8E-8#PBF LT5400BIMS8E-8#TRPBF LT5400BMPMS8E-1#PBF LT5400BMPMS8E-1#TRPBF LT5400BMPMS8E-2#PBF LT5400BMPMS8E-2#TRPBF LT5400BMPMS8E-3#PBF LT5400BMPMS8E-3#TRPBF LT5400BMPMS8E-4#PBF LT5400BMPMS8E-4#TRPBF LT5400BMPMS8E-6#PBF LT5400BMPMS8E-6#TRPBF LT5400BMPMS8E-7#PBF LT5400BMPMS8E-7#TRPBF LT5400BMPMS8E-8#PBF LT5400BMPMS8E-8#TRPBF
- LT5400ACMS8E-1#PBF LT5400ACMS8E-1#TRPBF LT5400AHMS8E-1#PBF LT5400AHMS8E-1#TRPBF LT5400AIMS8E-1#PBF LT5400AIMS8E-1#TRPBF
- LT5400ACMS8E-2#PBF LT5400ACMS8E-2#TRPBF LT5400AHMS8E-2#PBF LT5400AHMS8E-2#TRPBF LT5400AIMS8E-2#PBF LT5400AIMS8E-2#TRPBF
- LT5400ACMS8E-3#PBF LT5400ACMS8E-3#TRPBF LT5400AHMS8E-3#PBF LT5400AHMS8E-3#TRPBF LT5400AIMS8E-3#PBF LT5400AIMS8E-3#TRPBF
- LT5400ACMS8E-4#PBF LT5400ACMS8E-4#TRPBF LT5400AHMS8E-4#PBF LT5400AHMS8E-4#TRPBF LT5400AIMS8E-4#PBF LT5400AIMS8E-4#TRPBF
- LT5400BCMS8E-1#PBF LT5400BCMS8E-1#TRPBF LT5400BHMS8E-1#PBF LT5400BHMS8E-1#TRPBF LT5400BIMS8E-1#PBF LT5400BIMS8E-1#TRPBF LT5400BMPMS8E-1#PBF LT5400BMPMS8E-1#TRPBF
- LT5400BCMS8E-2#PBF LT5400BCMS8E-2#TRPBF LT5400BHMS8E-2#PBF LT5400BHMS8E-2#TRPBF LT5400BIMS8E-2#PBF LT5400BIMS8E-2#TRPBF LT5400BMPMS8E-2#PBF LT5400BMPMS8E-2#TRPBF
- LT5400BCMS8E-3#PBF LT5400BCMS8E-3#TRPBF LT5400BHMS8E-3#PBF LT5400BHMS8E-3#TRPBF LT5400BIMS8E-3#PBF LT5400BIMS8E-3#TRPBF LT5400BMPMS8E-3#PBF LT5400BMPMS8E-3#TRPBF
- LT5400BCMS8E-4#PBF LT5400BCMS8E-4#TRPBF LT5400BHMS8E-4#PBF LT5400BHMS8E-4#TRPBF LT5400BIMS8E-4#PBF LT5400BIMS8E-4#TRPBF LT5400BMPMS8E-4#PBF LT5400BMPMS8E-4#TRPBF
- LT5400BCMS8E-6#PBF LT5400BCMS8E-6#TRPBF LT5400BHMS8E-6#PBF LT5400BHMS8E-6#TRPBF LT5400BIMS8E-6#PBF LT5400BIMS8E-6#TRPBF LT5400BMPMS8E-6#PBF LT5400BMPMS8E-6#TRPBF
Textversion des Dokuments

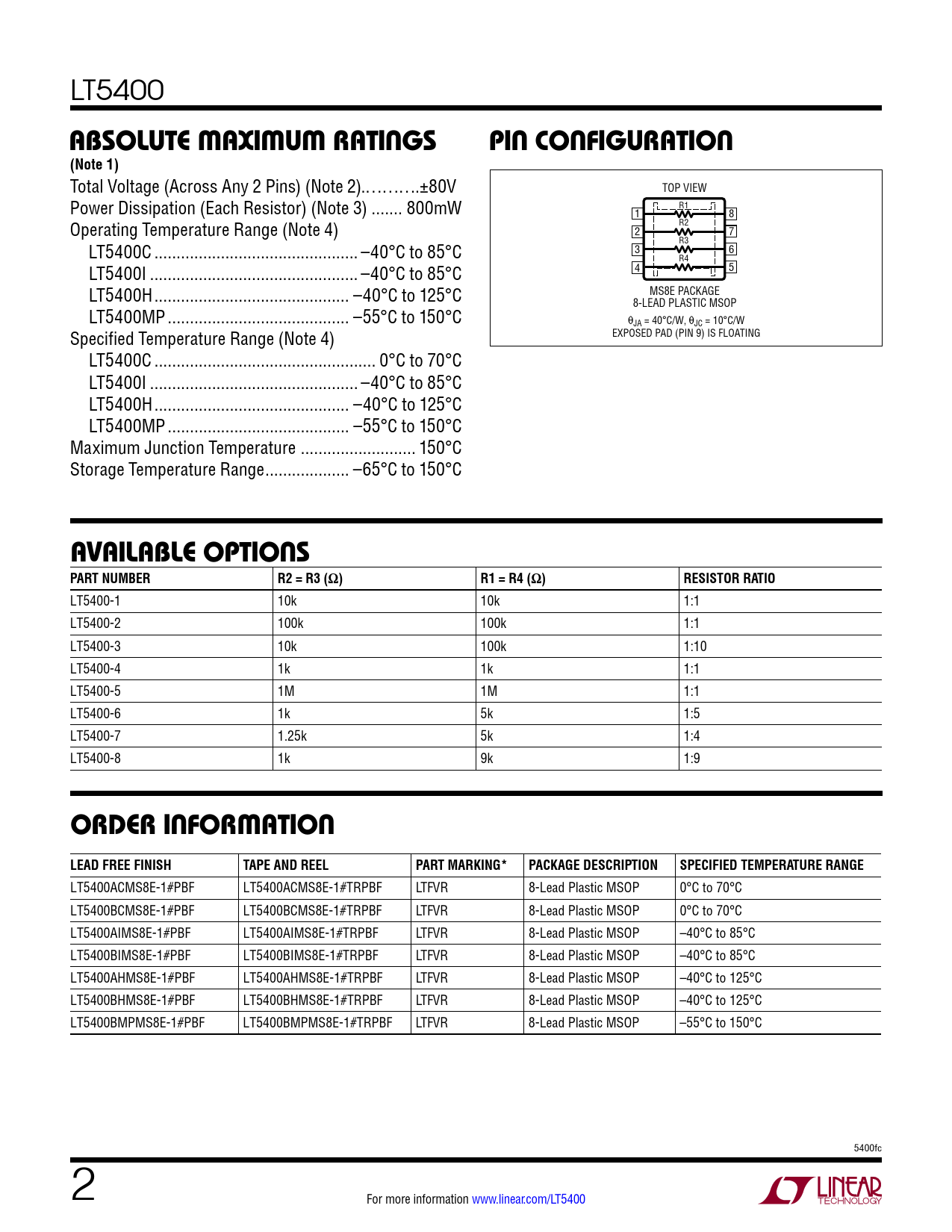

LT5400
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
Total Voltage (Across Any 2 Pins) (Note 2).……….±80V TOP VIEW Power Dissipation (Each Resistor) (Note 3) ... 800mW R1 1 8 Operating Temperature Range (Note 4) R2 2 7 LT5400C .. –40°C to 85°C R3 3 6 R4 LT5400I ... –40°C to 85°C 4 5 LT5400H .. –40°C to 125°C MS8E PACKAGE 8-LEAD PLASTIC MSOP LT5400MP ... –55°C to 150°C θJA = 40°C/W, θJC = 10°C/W Specified Temperature Range (Note 4) EXPOSED PAD (PIN 9) IS FLOATING LT5400C .. 0°C to 70°C LT5400I ... –40°C to 85°C LT5400H .. –40°C to 125°C LT5400MP ... –55°C to 150°C Maximum Junction Temperature .. 150°C Storage Temperature Range ... –65°C to 150°C
available opTions PART NUMBER R2 = R3 (Ω) R1 = R4 (Ω) RESISTOR RATIO
LT5400-1 10k 10k 1:1 LT5400-2 100k 100k 1:1 LT5400-3 10k 100k 1:10 LT5400-4 1k 1k 1:1 LT5400-5 1M 1M 1:1 LT5400-6 1k 5k 1:5 LT5400-7 1.25k 5k 1:4 LT5400-8 1k 9k 1:9
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT5400ACMS8E-1#PBF LT5400ACMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP 0°C to 70°C LT5400BCMS8E-1#PBF LT5400BCMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP 0°C to 70°C LT5400AIMS8E-1#PBF LT5400AIMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –40°C to 85°C LT5400BIMS8E-1#PBF LT5400BIMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –40°C to 85°C LT5400AHMS8E-1#PBF LT5400AHMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –40°C to 125°C LT5400BHMS8E-1#PBF LT5400BHMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –40°C to 125°C LT5400BMPMS8E-1#PBF LT5400BMPMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –55°C to 150°C 5400fc 2 For more information www.linear.com/LT5400 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Available Options Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
Total Voltage (Across Any 2 Pins) (Note 2).……….±80V TOP VIEW Power Dissipation (Each Resistor) (Note 3) ... 800mW R1 1 8 Operating Temperature Range (Note 4) R2 2 7 LT5400C .. –40°C to 85°C R3 3 6 R4 LT5400I ... –40°C to 85°C 4 5 LT5400H .. –40°C to 125°C MS8E PACKAGE 8-LEAD PLASTIC MSOP LT5400MP ... –55°C to 150°C θJA = 40°C/W, θJC = 10°C/W Specified Temperature Range (Note 4) EXPOSED PAD (PIN 9) IS FLOATING LT5400C .. 0°C to 70°C LT5400I ... –40°C to 85°C LT5400H .. –40°C to 125°C LT5400MP ... –55°C to 150°C Maximum Junction Temperature .. 150°C Storage Temperature Range ... –65°C to 150°C
available opTions PART NUMBER R2 = R3 (Ω) R1 = R4 (Ω) RESISTOR RATIO
LT5400-1 10k 10k 1:1 LT5400-2 100k 100k 1:1 LT5400-3 10k 100k 1:10 LT5400-4 1k 1k 1:1 LT5400-5 1M 1M 1:1 LT5400-6 1k 5k 1:5 LT5400-7 1.25k 5k 1:4 LT5400-8 1k 9k 1:9
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT5400ACMS8E-1#PBF LT5400ACMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP 0°C to 70°C LT5400BCMS8E-1#PBF LT5400BCMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP 0°C to 70°C LT5400AIMS8E-1#PBF LT5400AIMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –40°C to 85°C LT5400BIMS8E-1#PBF LT5400BIMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –40°C to 85°C LT5400AHMS8E-1#PBF LT5400AHMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –40°C to 125°C LT5400BHMS8E-1#PBF LT5400BHMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –40°C to 125°C LT5400BMPMS8E-1#PBF LT5400BMPMS8E-1#TRPBF LTFVR 8-Lead Plastic MSOP –55°C to 150°C 5400fc 2 For more information www.linear.com/LT5400 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Available Options Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
