link to page 2 link to page 2 The systems are available for 386/486/Pentium™ PC and for Mentor Graphics®, Cadence™, OrCAD™, and Synopsys HP™ and Sun™ workstations and for running Viewlogic®, design environments.

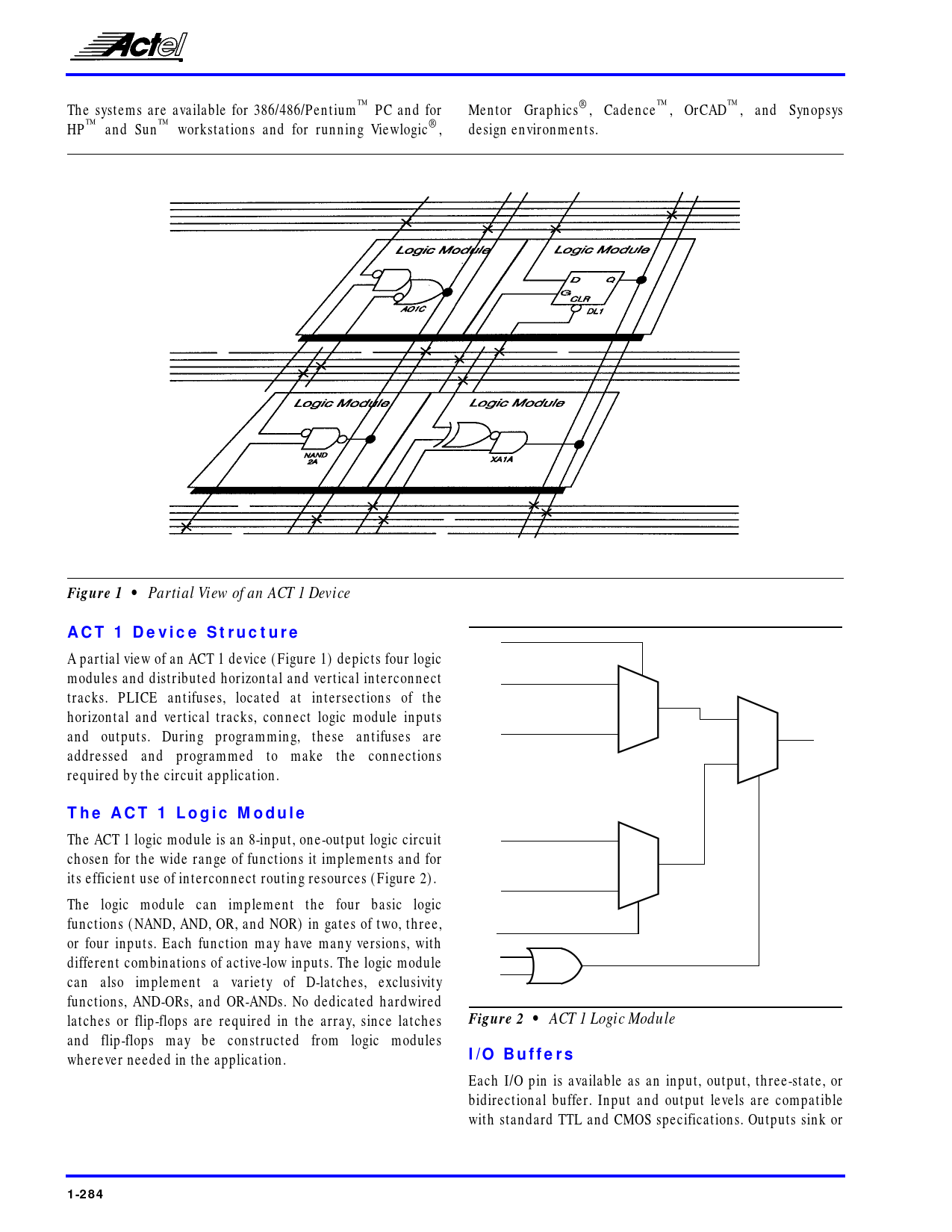

Figure 1 •
Partial View of an ACT 1 Device
A C T 1 D e v i c e S t r u c t u r e
A partial view of an ACT 1 device (Figure 1) depicts four logic modules and distributed horizontal and vertical interconnect tracks. PLICE antifuses, located at intersections of the horizontal and vertical tracks, connect logic module inputs and outputs. During programming, these antifuses are addressed and programmed to make the connections required by the circuit application.
T h e A C T 1 L o g i c M o d u l e
The ACT 1 logic module is an 8-input, one-output logic circuit chosen for the wide range of functions it implements and for its efficient use of interconnect routing resources (Figure 2). The logic module can implement the four basic logic functions (NAND, AND, OR, and NOR) in gates of two, three, or four inputs. Each function may have many versions, with different combinations of active-low inputs. The logic module can also implement a variety of D-latches, exclusivity functions, AND-ORs, and OR-ANDs. No dedicated hardwired latches or flip-flops are required in the array, since latches
Figure 2 •
ACT 1 Logic Module and flip-flops may be constructed from logic modules wherever needed in the application.
I / O B u f f e r s
Each I/O pin is available as an input, output, three-state, or bidirectional buffer. Input and output levels are compatible with standard TTL and CMOS specifications. Outputs sink or
1-284
