Datasheet IGB110S101 (Infineon)
| Hersteller | Infineon |
| Beschreibung | The IGB110S101 is a 100 V normally-off e-mode power transistor housed in a small PQFN 3x3 package, enabling high power density designs |
| Seiten / Seite | 18 / 1 — Public. IGB110S101. Final datasheet. Features. Potential applications. … |
| Revision | 01_00 |
| Dateiformat / Größe | PDF / 1.2 Mb |
| Dokumentensprache | Englisch |
Public. IGB110S101. Final datasheet. Features. Potential applications. Product validation
Modelllinie für dieses Datenblatt
Textversion des Dokuments

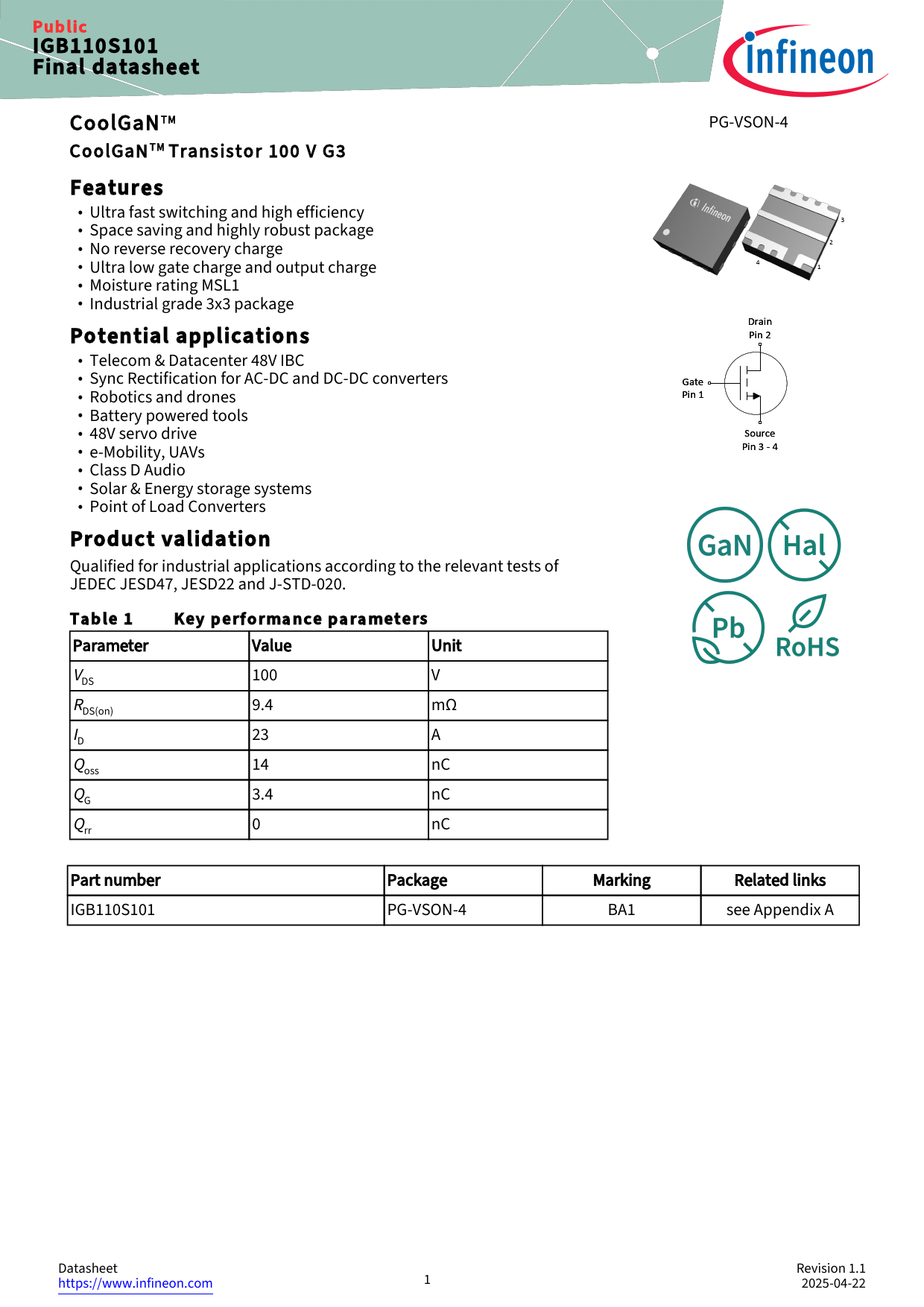

Public IGB110S101 Final datasheet
CoolGaNTM PG‑VSON‑4 CoolGaNT MTransistor 100 V G3
Features
• Ultra fast switching and high efficiency 3 • Space saving and highly robust package 2 • No reverse recovery charge 4 1 • Ultra low gate charge and output charge • Moisture rating MSL1 • Industrial grade 3x3 package
Potential applications
Dr D ai a n Pi P n 2 • Telecom & Datacenter 48V IBC • Sync Rectification for AC‑DC and DC‑DC converters Gat a e t • Robotics and drones Pi P n 1 • Battery powered tools • 48V servo drive Sour u ce • e‑Mobility, UAVs Pi P n 3 3 - 4 • Class D Audio • Solar & Energy storage systems • Point of Load Converters
Product validation
Qualified for industrial applications according to the relevant tests of JEDEC JESD47, JESD22 and J‑STD‑020.
Table 1 Key performance parameters
Parameter Value Unit VDS 100 V RDS(on) 9.4 mΩ ID 23 A Qoss 14 nC QG 3.4 nC Qrr 0 nC Part number Package Marking Related links IGB110S101 PG‑VSON‑4 BA1 see Appendix A Datasheet Revision 1.1 https://www.infineon.com 1 2025‑04‑22 Document Outline Description Maximum ratings Recommended operating conditions Thermal characteristics Electrical Characteristics Electrical characteristics diagrams Package outlines Appendix A Revision history Trademarks Disclaimer
CoolGaNTM PG‑VSON‑4 CoolGaNT MTransistor 100 V G3
Features
• Ultra fast switching and high efficiency 3 • Space saving and highly robust package 2 • No reverse recovery charge 4 1 • Ultra low gate charge and output charge • Moisture rating MSL1 • Industrial grade 3x3 package
Potential applications
Dr D ai a n Pi P n 2 • Telecom & Datacenter 48V IBC • Sync Rectification for AC‑DC and DC‑DC converters Gat a e t • Robotics and drones Pi P n 1 • Battery powered tools • 48V servo drive Sour u ce • e‑Mobility, UAVs Pi P n 3 3 - 4 • Class D Audio • Solar & Energy storage systems • Point of Load Converters
Product validation
Qualified for industrial applications according to the relevant tests of JEDEC JESD47, JESD22 and J‑STD‑020.
Table 1 Key performance parameters
Parameter Value Unit VDS 100 V RDS(on) 9.4 mΩ ID 23 A Qoss 14 nC QG 3.4 nC Qrr 0 nC Part number Package Marking Related links IGB110S101 PG‑VSON‑4 BA1 see Appendix A Datasheet Revision 1.1 https://www.infineon.com 1 2025‑04‑22 Document Outline Description Maximum ratings Recommended operating conditions Thermal characteristics Electrical Characteristics Electrical characteristics diagrams Package outlines Appendix A Revision history Trademarks Disclaimer
