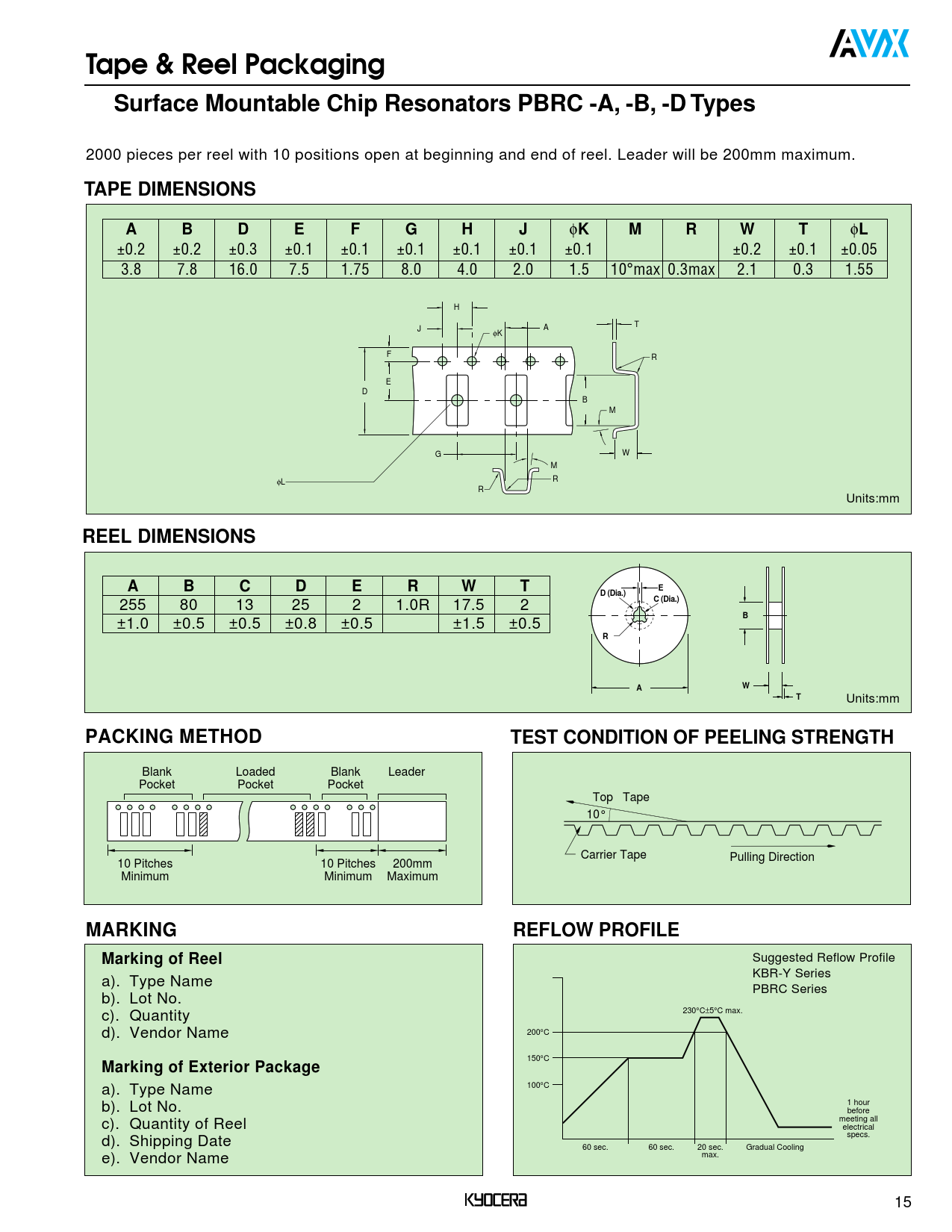

Tape & Reel Packaging Surface Mountable Chip Resonators PBRC -A, -B, -D Types
2000 pieces per reel with 10 positions open at beginning and end of reel. Leader will be 200mm maximum.
TAPE DIMENSIONS A B D E F G H J
φ
K M R W T
φ
L
±0.2 ±0.2 ±0.3 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.2 ±0.1 ±0.05 3.8 7.8 16.0 7.5 1.75 8.0 4.0 2.0 1.5 10°max 0.3max 2.1 0.3 1.55 H T J φ A K F R E D B M G W M R φL R Units:mm
REEL DIMENSIONS A B C D E R W T E D (Dia.) C (Dia.)
255 80 13 25 2 1.0R 17.5 2
B
±1.0 ±0.5 ±0.5 ±0.8 ±0.5 ±1.5 ±0.5
R A W T
Units:mm
PACKING METHOD TEST CONDITION OF PEELING STRENGTH
Blank Loaded Blank Leader Pocket Pocket Pocket Top Tape 10° Carrier Tape Pulling Direction 10 Pitches 10 Pitches 200mm Minimum Minimum Maximum
MARKING REFLOW PROFILE Marking of Reel
Suggested Reflow Profile KBR-Y Series a). Type Name PBRC Series b). Lot No. c). Quantity 230°C±5°C max. d). Vendor Name 200°C 150°C
Marking of Exterior Package
a). Type Name 100°C b). Lot No. 1 hour before c). Quantity of Reel meeting all electrical d). Shipping Date specs. 60 sec. 60 sec. 20 sec. Gradual Cooling e). Vendor Name max. 15
