Datasheet PBRC-A (Kyocera AVX)
| Hersteller | Kyocera AVX |
| Beschreibung | MHz Band SMT Resonators |
| Seiten / Seite | 2 / 1 — PBRC -A Series Chip Resonators. MHz Band SMT Resonators ƒ : 2.00 to 8.00 … |
| Dateiformat / Größe | PDF / 132 Kb |
| Dokumentensprache | Englisch |
PBRC -A Series Chip Resonators. MHz Band SMT Resonators ƒ : 2.00 to 8.00 MHz. FEATURES. HOW TO ORDER. PBRC - 4.00 A R. STRUCTURE
Modelllinie für dieses Datenblatt
Textversion des Dokuments

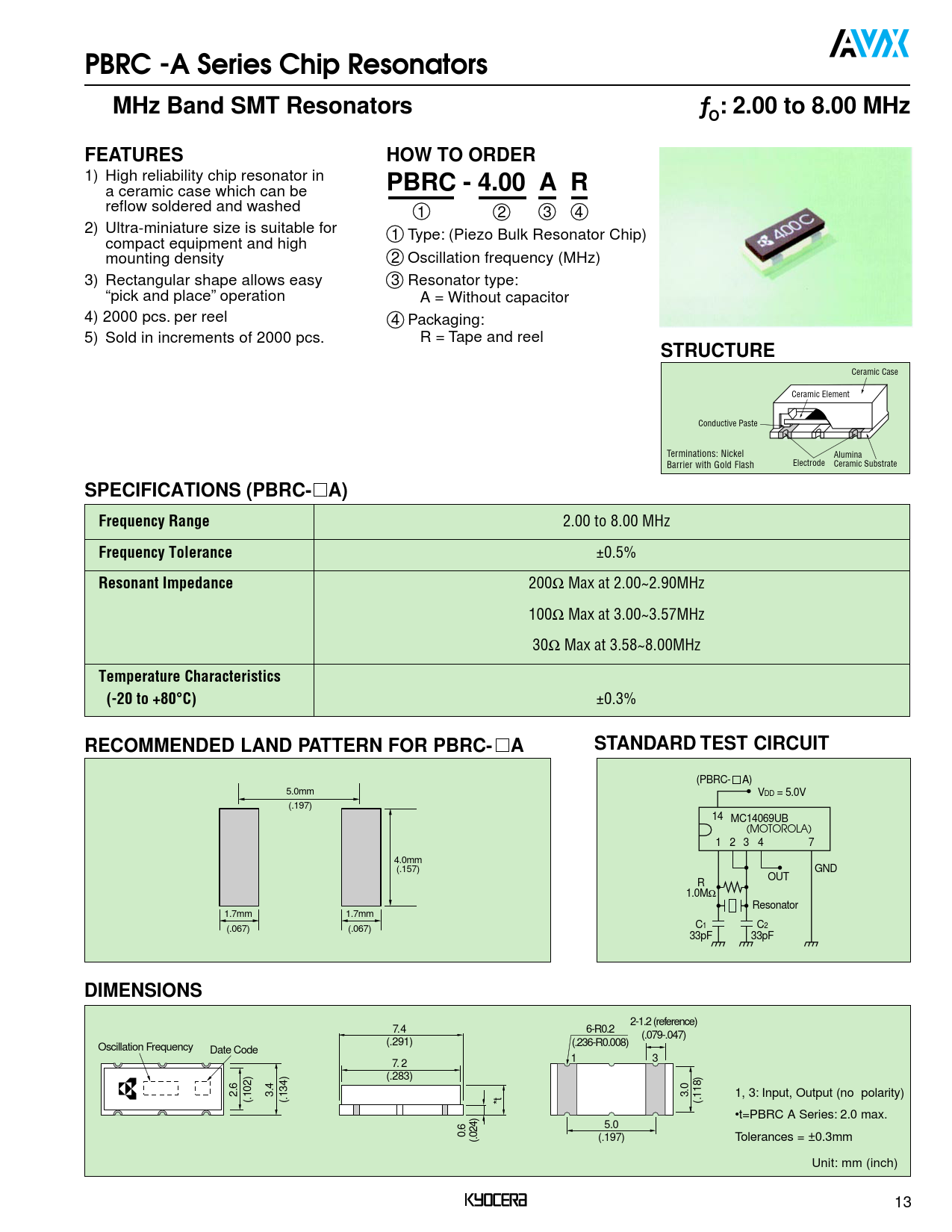

PBRC -A Series Chip Resonators MHz Band SMT Resonators ƒ : 2.00 to 8.00 MHz O FEATURES HOW TO ORDER
1) High reliability chip resonator in
PBRC - 4.00 A R
a ceramic case which can be reflow soldered and washed 1 2 3 4 2) Ultra-miniature size is suitable for 1 Type: (Piezo Bulk Resonator Chip) compact equipment and high mounting density 2 Oscillation frequency (MHz) 3) Rectangular shape allows easy 3 Resonator type: “pick and place” operation A = Without capacitor 4) 2000 pcs. per reel 4 Packaging: 5) Sold in increments of 2000 pcs. R = Tape and reel
STRUCTURE
Ceramic Case Ceramic Element Conductive Paste Terminations: Nickel Alumina Electrode Barrier with Gold Flash Ceramic Substrate
SPECIFICATIONS (PBRC- A) Frequency Range
2.00 to 8.00 MHz
Frequency Tolerance
±0.5%
Resonant Impedance
200Ω Max at 2.00~2.90MHz 100Ω Max at 3.00~3.57MHz 30Ω Max at 3.58~8.00MHz
Temperature Characteristics (-20 to +80°C)
±0.3%
RECOMMENDED LAND PATTERN FOR PBRC- A STANDARD TEST CIRCUIT
(PBRC- A) 5.0mm VDD = 5.0V (.197) 14 MC14069UB (MOTOROLA) 1 2 3 4 7 4.0mm (.157) GND OUT R 1.0MΩ Resonator 1.7mm 1.7mm C1 C2 (.067) (.067) 33pF 33pF
DIMENSIONS
2-1.2 (reference) 7.4 6-R0.2 (.079-.047) (.291) (.236-R0.008) Oscillation Frequency Date Code 1 3 7. 2 (.283) 2.6 3.4 3.0 1, 3: Input, Output (no polarity) (.102) (.134) *t (.118) •t=PBRC A Series: 2.0 max. 5.0 0.6 (.024) (.197) Tolerances = ±0.3mm Unit: mm (inch) 13
1) High reliability chip resonator in
PBRC - 4.00 A R
a ceramic case which can be reflow soldered and washed 1 2 3 4 2) Ultra-miniature size is suitable for 1 Type: (Piezo Bulk Resonator Chip) compact equipment and high mounting density 2 Oscillation frequency (MHz) 3) Rectangular shape allows easy 3 Resonator type: “pick and place” operation A = Without capacitor 4) 2000 pcs. per reel 4 Packaging: 5) Sold in increments of 2000 pcs. R = Tape and reel
STRUCTURE
Ceramic Case Ceramic Element Conductive Paste Terminations: Nickel Alumina Electrode Barrier with Gold Flash Ceramic Substrate
SPECIFICATIONS (PBRC- A) Frequency Range
2.00 to 8.00 MHz
Frequency Tolerance
±0.5%
Resonant Impedance
200Ω Max at 2.00~2.90MHz 100Ω Max at 3.00~3.57MHz 30Ω Max at 3.58~8.00MHz
Temperature Characteristics (-20 to +80°C)
±0.3%
RECOMMENDED LAND PATTERN FOR PBRC- A STANDARD TEST CIRCUIT
(PBRC- A) 5.0mm VDD = 5.0V (.197) 14 MC14069UB (MOTOROLA) 1 2 3 4 7 4.0mm (.157) GND OUT R 1.0MΩ Resonator 1.7mm 1.7mm C1 C2 (.067) (.067) 33pF 33pF
DIMENSIONS
2-1.2 (reference) 7.4 6-R0.2 (.079-.047) (.291) (.236-R0.008) Oscillation Frequency Date Code 1 3 7. 2 (.283) 2.6 3.4 3.0 1, 3: Input, Output (no polarity) (.102) (.134) *t (.118) •t=PBRC A Series: 2.0 max. 5.0 0.6 (.024) (.197) Tolerances = ±0.3mm Unit: mm (inch) 13
