| Hersteller | Abracon |
| Beschreibung | Ceramic resonator 8 MHz 1 pF SMD |
| Seiten / Seite | 6 / 2 — Miniature Ceramic Resonator. 3.2 x 1.3 x 1.0 mm. RoHS/RoHS II Compliant. … |
| Dateiformat / Größe | PDF / 756 Kb |
| Dokumentensprache | Englisch |
Miniature Ceramic Resonator. 3.2 x 1.3 x 1.0 mm. RoHS/RoHS II Compliant. Pb in ceramic, exemption (7c-I)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Miniature Ceramic Resonator 3.2 x 1.3 x 1.0 mm
AWSCR-CELB

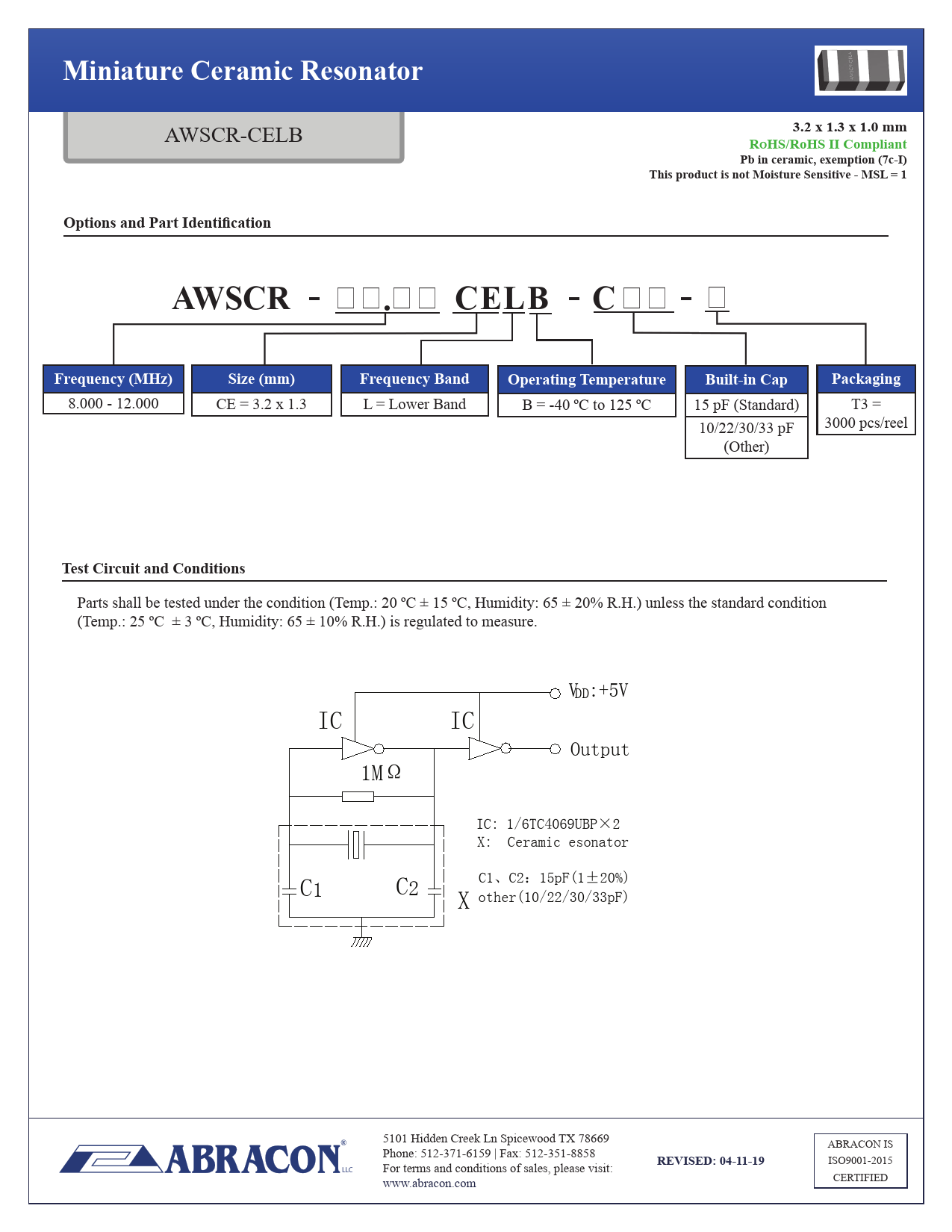

RoHS/RoHS II Compliant Pb in ceramic, exemption (7c-I) This product is not Moisture Sensitive - MSL = 1 Options and Part Identification AWSCR . CELB C Frequency (MHz) Size (mm) Frequency Band Operating Temperature Built-in Cap Packaging
8.000 - 12.000 CE = 3.2 x 1.3 L = Lower Band B = -40 ºC to 125 ºC 15 pF (Standard) T3 = 10/22/30/33 pF 3000 pcs/reel (Other)
Test Circuit and Conditions
Parts shall be tested under the condition (Temp.: 20 ºC ± 15 ºC, Humidity: 65 ± 20% R.H.) unless the standard condition (Temp.: 25 ºC ± 3 ºC, Humidity: 65 ± 10% R.H.) is regulated to measure. V : DD +5V IC IC Output 1MΩ IC: 1/6TC4069UBP×2 X: Ceramic esonator C C1、C2：15pF(1±20%) 1 C2 X other(10/22/30/33pF) 5101 Hidden Creek Ln Spicewood TX 78669 ABRACON IS Phone: 512-371-6159 | Fax: 512-351-8858
