Datasheet AWSCR-CELB (Abracon)
| Hersteller | Abracon |
| Beschreibung | Ceramic resonator 8 MHz 1 pF SMD |
| Seiten / Seite | 6 / 1 — Miniature Ceramic Resonator. 3.2 x 1.3 x 1.0 mm. RoHS/RoHS II Compliant. … |
| Dateiformat / Größe | PDF / 756 Kb |
| Dokumentensprache | Englisch |
Miniature Ceramic Resonator. 3.2 x 1.3 x 1.0 mm. RoHS/RoHS II Compliant. Pb in ceramic, exemption (7c-I)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

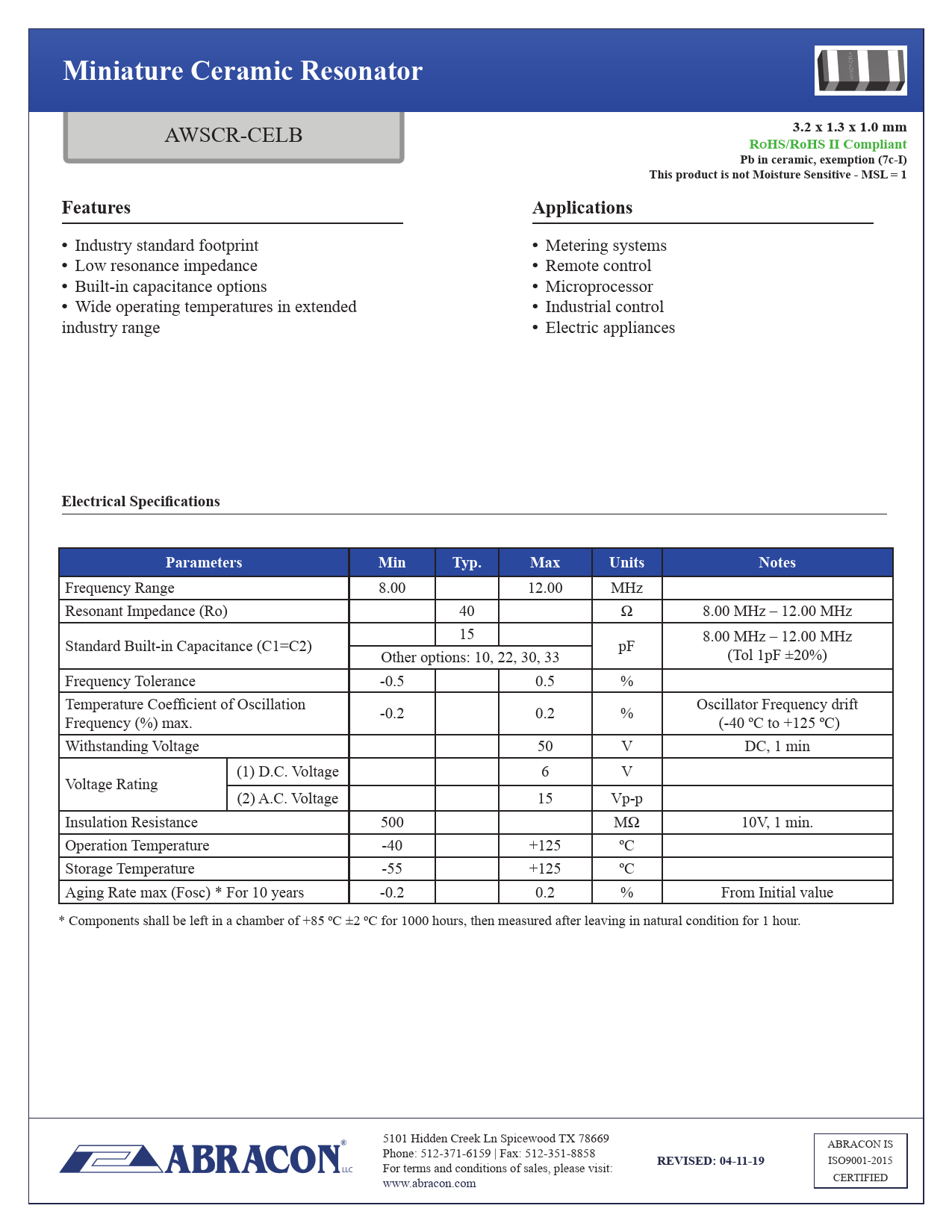

Miniature Ceramic Resonator 3.2 x 1.3 x 1.0 mm
AWSCR-CELB
RoHS/RoHS II Compliant Pb in ceramic, exemption (7c-I) This product is not Moisture Sensitive - MSL = 1 Features Applications •
Industry standard footprint
•
Metering systems
•
Low resonance impedance
•
Remote control
•
Built-in capacitance options
•
Microprocessor
•
Wide operating temperatures in extended
•
Industrial control industry range
•
Electric appliances
Electrical Specifications Parameters Min Typ. Max Units Notes
Frequency Range 8.00 12.00 MHz Resonant Impedance (Ro) 40 Ω 8.00 MHz – 12.00 MHz 15 Standard Built-in Capacitance (C1=C2) pF 8.00 MHz – 12.00 MHz Other options: 10, 22, 30, 33 (Tol 1pF ±20%) Frequency Tolerance -0.5 0.5 % Temperature Coefficient of Oscillation Frequency (%) max. -0.2 0.2 % Oscillator Frequency drift (-40 ºC to +125 ºC) Withstanding Voltage 50 V DC, 1 min (1) D.C. Voltage 6 V Voltage Rating (2) A.C. Voltage 15 Vp-p Insulation Resistance 500 MΩ 10V, 1 min. Operation Temperature -40 +125 ºC Storage Temperature -55 +125 ºC Aging Rate max (Fosc) * For 10 years -0.2 0.2 % From Initial value * Components shall be left in a chamber of +85 ºC ±2 ºC for 1000 hours, then measured after leaving in natural condition for 1 hour. 5101 Hidden Creek Ln Spicewood TX 78669 ABRACON IS Phone: 512-371-6159 | Fax: 512-351-8858
REVISED: 04-11-19
ISO9001-2015
LLC
For terms and conditions of sales, please visit: CERTIFIED www.abracon.com
