Precision, Micropower, Low-Dropout, SC70 Series Voltage Reference. ELECTRICAL CHARACTERISTICS–MAX6034_41 (VOUT = 4.096V)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

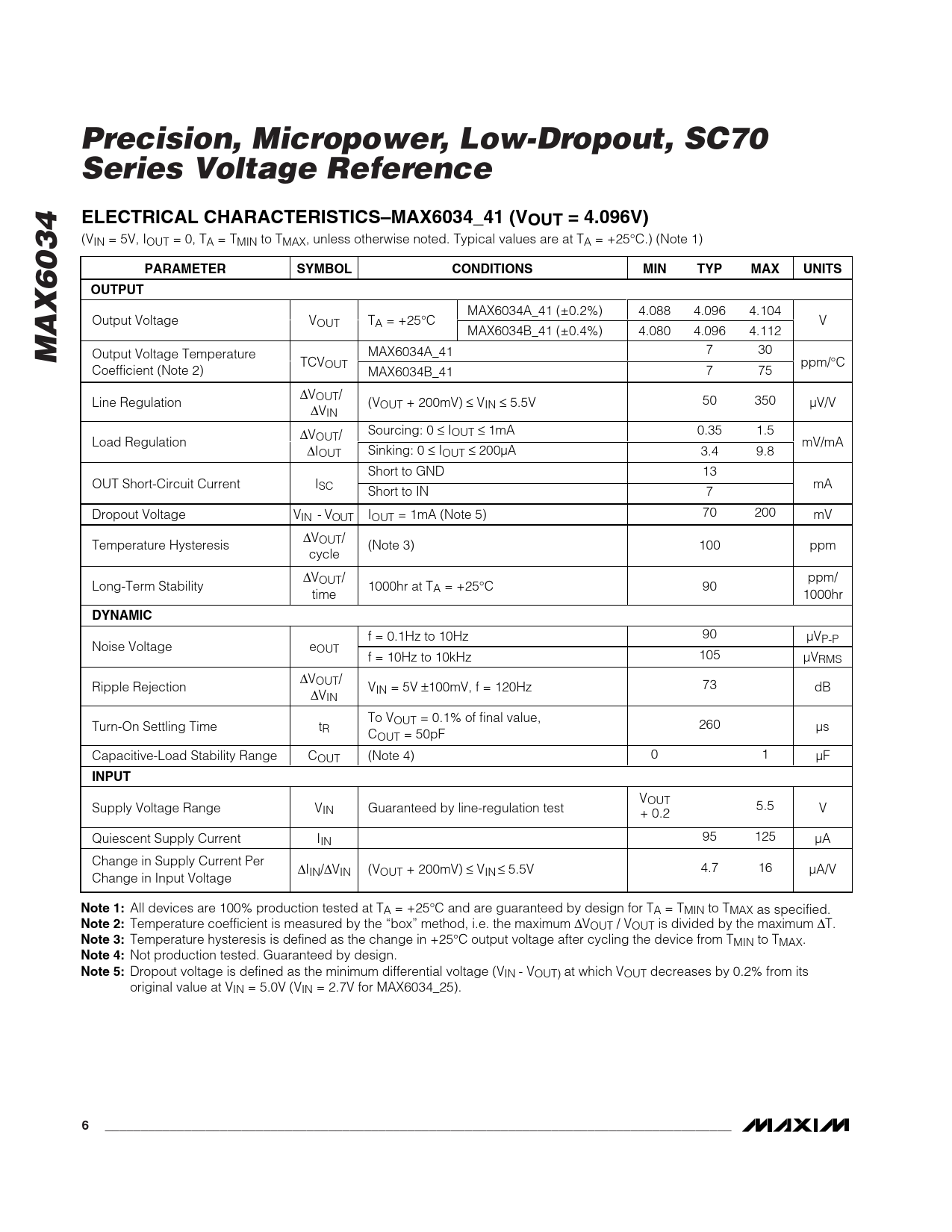

Precision, Micropower, Low-Dropout, SC70 Series Voltage Reference ELECTRICAL CHARACTERISTICS–MAX6034_41 (VOUT = 4.096V)
(VIN = 5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
MAX6034A_41 (±0.2%) 4.088 4.096 4.104 Output Voltage VOUT TA = +25°C V MAX6034B_41 (±0.4%) 4.080 4.096 4.112
MAX6034
MAX6034A_41 7 30 Output Voltage Temperature TCVOUT ppm/°C Coefficient (Note 2) MAX6034B_41 7 75 ∆VOUT/ Line Regulation ∆ (V V OUT + 200mV) ≤ VIN ≤ 5.5V 50 350 µV/V IN Sourcing: 0 ≤ IOUT ≤ 1mA 0.35 1.5 ∆V Load Regulation OUT/ ∆ mV/mA IOUT Sinking: 0 ≤ IOUT ≤ 200µA 3.4 9.8 Short to GND 13 OUT Short-Circuit Current ISC mA Short to IN 7 Dropout Voltage V IN - V OU T IOUT = 1mA (Note 5) 70 200 mV ∆V Temperature Hysteresis OUT/ (Note 3) 100 ppm cycle ∆VOUT/ ppm/ Long-Term Stability 1000hr at TA = +25°C 90 time 1000hr
DYNAMIC
f = 0.1Hz to 10Hz 90 µVP-P Noise Voltage eOUT f = 10Hz to 10kHz 105 µVRMS ∆VOUT/ Ripple Rejection ∆ V V IN = 5V ±100mV, f = 120Hz 73 dB IN To VOUT = 0.1% of final value, Turn-On Settling Time tR 260 µs COUT = 50pF Capacitive-Load Stability Range COUT (Note 4) 0 1 µF
INPUT
VOUT Supply Voltage Range VIN Guaranteed by line-regulation test 5.5 + 0.2 V Quiescent Supply Current IIN 95 125 µA Change in Supply Current Per ∆IIN/∆VIN (VOUT + 200mV) ≤ VIN ≤ 5.5V 4.7 16 µA/V Change in Input Voltage
Note 1:
All devices are 100% production tested at TA = +25°C and are guaranteed by design for TA = TMIN to TMAX as specified.
Note 2:
Temperature coefficient is measured by the “box” method, i.e. the maximum ∆VOUT / VOUT is divided by the maximum ∆T.
Note 3:
Temperature hysteresis is defined as the change in +25°C output voltage after cycling the device from TMIN to TMAX.
Note 4:
Not production tested. Guaranteed by design.
Note 5:
Dropout voltage is defined as the minimum differential voltage (VIN - VOUT) at which VOUT decreases by 0.2% from its original value at VIN = 5.0V (VIN = 2.7V for MAX6034_25).
6 _______________________________________________________________________________________
