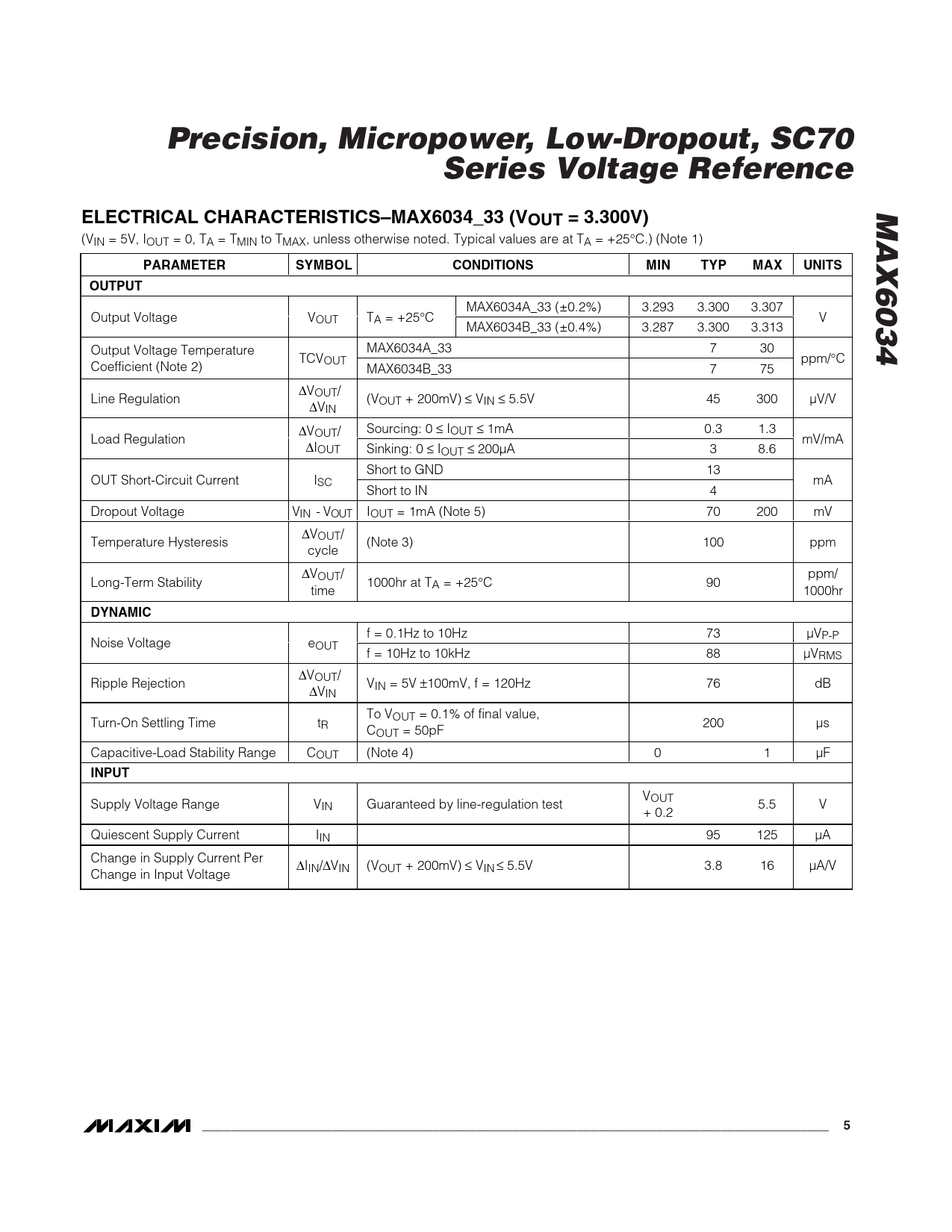

Precision, Micropower, Low-Dropout, SC70 Series Voltage Reference MAX6034 ELECTRICAL CHARACTERISTICS–MAX6034_33 (VOUT = 3.300V)
(VIN = 5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
MAX6034A_33 (±0.2%) 3.293 3.300 3.307 Output Voltage VOUT TA = +25°C V MAX6034B_33 (±0.4%) 3.287 3.300 3.313 Output Voltage Temperature MAX6034A_33 7 30 TCVOUT ppm/°C Coefficient (Note 2) MAX6034B_33 7 75 ∆VOUT/ Line Regulation ∆ (V V OUT + 200mV) ≤ VIN ≤ 5.5V 45 300 µV/V IN Sourcing: 0 ∆VOUT/ ≤ IOUT ≤ 1mA 0.3 1.3 Load Regulation ∆ mV/mA IOUT Sinking: 0 ≤ IOUT ≤ 200µA 3 8.6 Short to GND 13 OUT Short-Circuit Current ISC mA Short to IN 4 Dropout Voltage V IN - V OU T IOUT = 1mA (Note 5) 70 200 mV ∆V Temperature Hysteresis OUT/ (Note 3) 100 ppm cycle ∆VOUT/ ppm/ Long-Term Stability 1000hr at TA = +25°C 90 time 1000hr
DYNAMIC
f = 0.1Hz to 10Hz 73 µVP-P Noise Voltage eOUT f = 10Hz to 10kHz 88 µVRMS ∆VOUT/ Ripple Rejection ∆ V V IN = 5V ±100mV, f = 120Hz 76 dB IN To VOUT = 0.1% of final value, Turn-On Settling Time tR 200 µs COUT = 50pF Capacitive-Load Stability Range COUT (Note 4) 0 1 µF
INPUT
V Supply Voltage Range V OUT IN Guaranteed by line-regulation test 5.5 V + 0.2 Quiescent Supply Current IIN 95 125 µA Change in Supply Current Per ∆IIN/∆VIN (VOUT + 200mV) ≤ VIN ≤ 5.5V 3.8 16 µA/V Change in Input Voltage
_______________________________________________________________________________________ 5
