Datasheet ISL21010CFH315 (Renesas) - 5

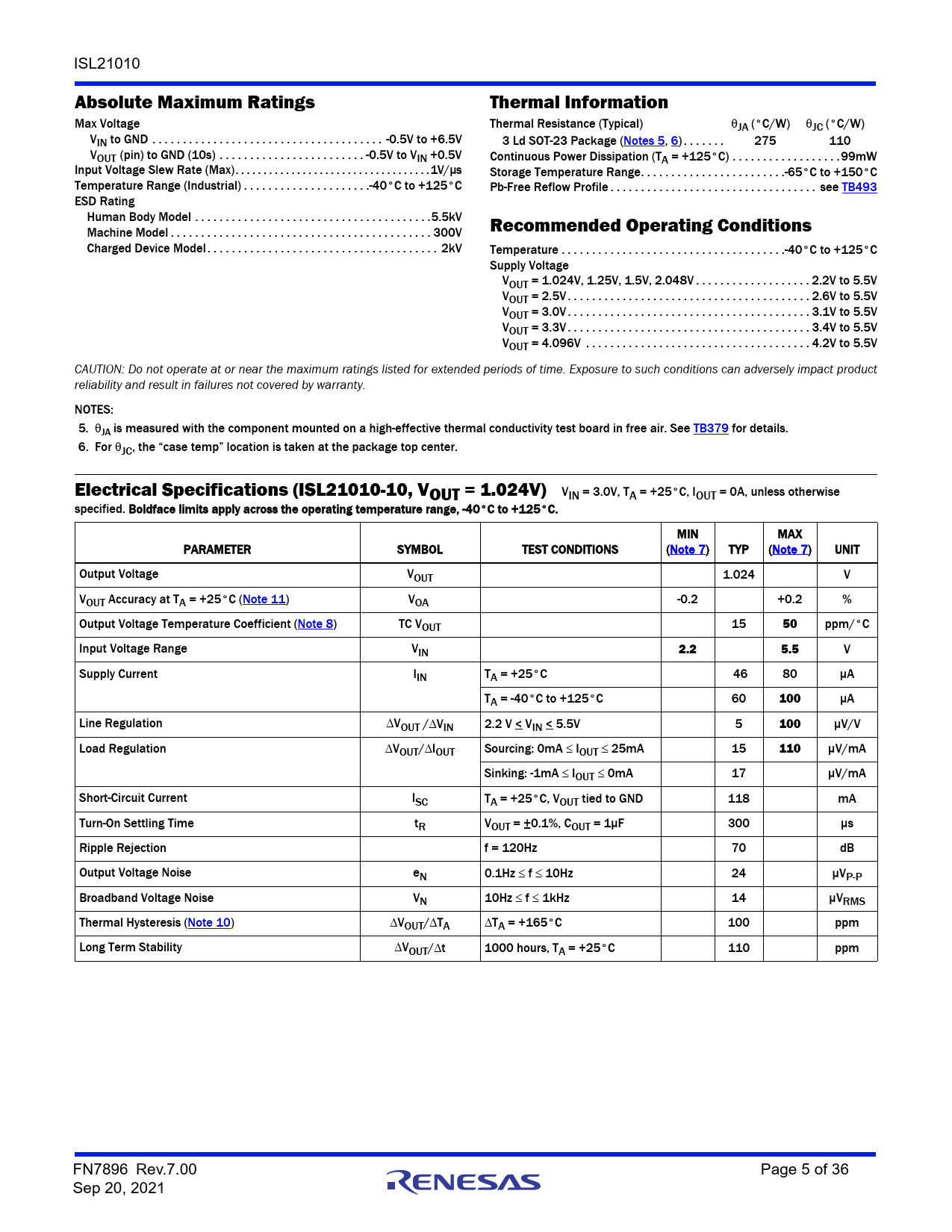

link to page 9 link to page 9 link to page 9 link to page 9 link to page 5 link to page 5 link to page 9 ISL21010 Absolute Maximum Ratings Thermal Information Max Voltage Thermal Resistance (Typical) JA (°C/W) JC (°C/W) VIN to GND . -0.5V to +6.5V 3 Ld SOT-23 Package (Notes 5, 6) . 275 110 VOUT (pin) to GND (10s) . -0.5V to VIN +0.5V Continuous Power Dissipation (TA = +125°C) . .99mW Input Voltage Slew Rate (Max). .1V/µs Storage Temperature Range. .-65°C to +150°C Temperature Range (Industrial) . .-40°C to +125°C Pb-Free Reflow Profile . see TB493 ESD Rating Human Body Model . .5.5kV Recommended Operating Conditions Machine Model . 300V Charged Device Model . 2kV Temperature . .-40°C to +125°C Supply Voltage VOUT = 1.024V, 1.25V, 1.5V, 2.048V . 2.2V to 5.5V VOUT = 2.5V . 2.6V to 5.5V VOUT = 3.0V . 3.1V to 5.5V VOUT = 3.3V. 3.4V to 5.5V VOUT = 4.096V . 4.2V to 5.5V CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions can adversely impact product reliability and result in failures not covered by warranty. NOTES: 5. JA is measured with the component mounted on a high-effective thermal conductivity test board in free air. See TB379 for details. 6. For JC, the “case temp” location is taken at the package top center. Electrical Specifications (ISL21010-10, VOUT = 1.024V) VIN = 3.0V, TA = +25°C, IOUT = 0A, unless otherwise specified. Boldface limits apply across the operating temperature range, -40°C to +125°C. MIN MAX PARAMETER SYMBOL TEST CONDITIONS (Note 7) TYP (Note 7) UNIT Output Voltage VOUT 1.024 V VOUT Accuracy at TA = +25°C (Note 11) VOA -0.2 +0.2 % Output Voltage Temperature Coefficient (Note 8) TC VOUT 15 50 ppm/°C Input Voltage Range VIN 2.2 5.5 V Supply Current IIN TA = +25°C 46 80 µA TA = -40°C to +125°C 60 100 µA Line Regulation VOUT /VIN 2.2 V < VIN < 5.5V 5 100 µV/V Load Regulation VOUT/IOUT Sourcing: 0mA  IOUT  25mA 15 110 µV/mA Sinking: -1mA IOUT 0mA 17 µV/mA Short-Circuit Current ISC TA = +25°C, VOUT tied to GND 118 mA Turn-On Settling Time tR VOUT = ±0.1%, COUT = 1μF 300 µs Ripple Rejection f = 120Hz 70 dB Output Voltage Noise eN 0.1Hz  f 10Hz 24 µVP-P Broadband Voltage Noise VN 10Hz  f 1kHz 14 µVRMS Thermal Hysteresis (Note 10) VOUT/TA TA = +165°C 100 ppm Long Term Stability VOUT/t 1000 hours, TA = +25°C 110 ppm FN7896 Rev.7.00 Page 5 of 36 Sep 20, 2021 Document Outline Applications Features Related Literature Typical Application Circuit Pin Configuration Pin Descriptions Ordering Information Absolute Maximum Ratings Thermal Information Recommended Operating Conditions Electrical Specifications (ISL21010-10, VOUT = 1.024V) Electrical Specifications (ISL21010-12, VOUT = 1.25V) Electrical Specifications (ISL21010-15, VOUT = 1.5V) Electrical Specifications (ISL21010-20, VOUT = 2.048V) Electrical Specifications (ISL21010-25, VOUT = 2.5V) Electrical Specifications (ISL21010-30, VOUT = 3.0V) Electrical Specifications (ISL21010-33, VOUT = 3.3V) Electrical Specifications (ISL21010-41, VOUT = 4.096V) Typical Performance Characteristics Curves (VOUT = 1.024V) Typical Performance Characteristics Curves (VOUT = 1.25V) Typical Performance Characteristics Curves (VOUT = 1.5V) Typical Performance Characteristics Curves (VOUT = 2.048V) Typical Performance Characteristics Curves (VOUT = 2.5V) Typical Performance Characteristics Curves (VOUT = 3.0V) Typical Performance Characteristics Curves (VOUT = 3.3V) Typical Performance Characteristics Curves (VOUT = 4.096V) Applications Information Micropower Operation Board Mounting Considerations Board Assembly Considerations Noise Performance and Reduction Revision History Package Outline Drawing
