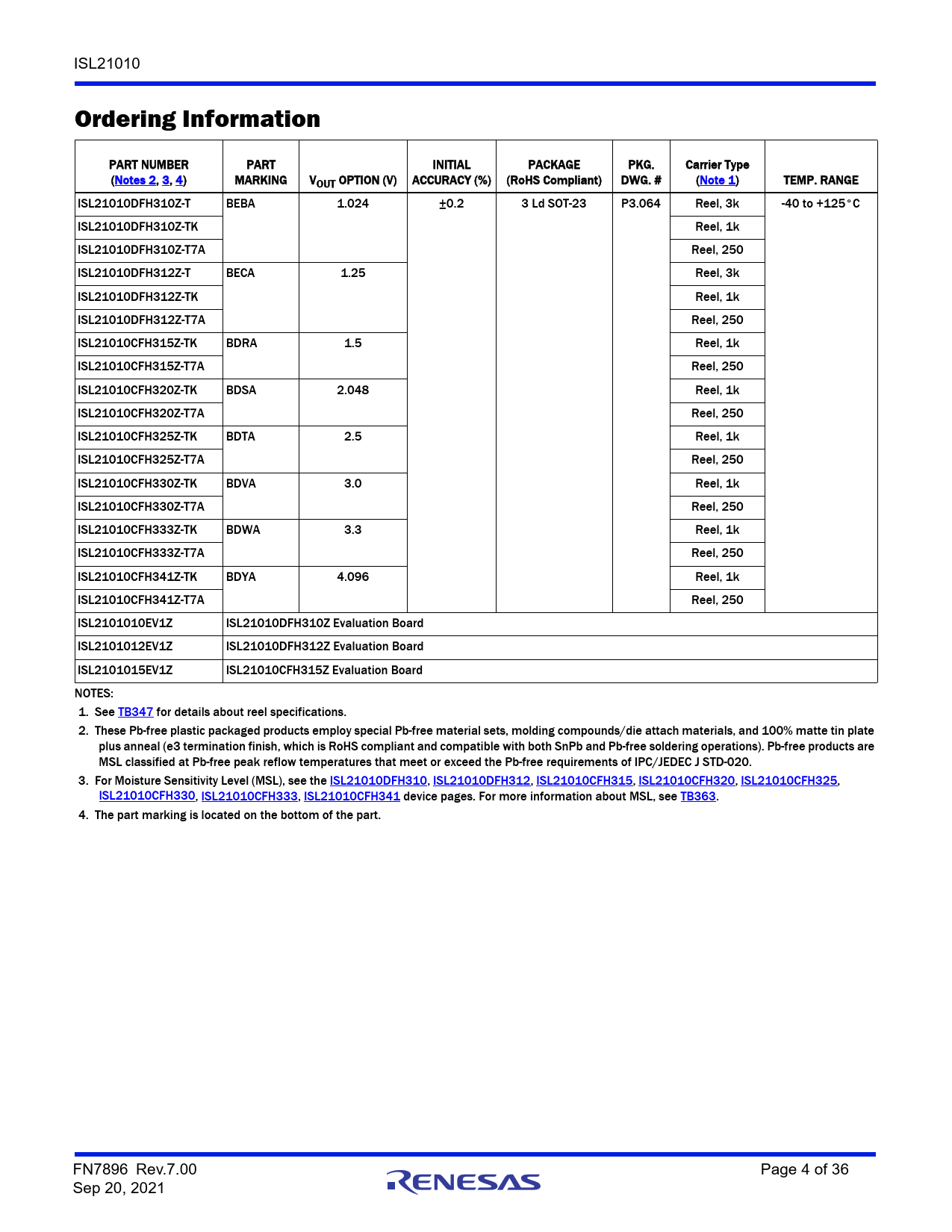

link to page 4 link to page 4 link to page 4 link to page 4 ISL21010 Ordering Information PART NUMBER PART INITIAL PACKAGE PKG. Carrier Type (Notes 2, 3, 4) MARKING VOUT OPTION (V) ACCURACY (%) (RoHS Compliant) DWG. # (Note 1) TEMP. RANGE ISL21010DFH310Z-T BEBA 1.024 ±0.2 3 Ld SOT-23 P3.064 Reel, 3k -40 to +125°C ISL21010DFH310Z-TK Reel, 1k ISL21010DFH310Z-T7A Reel, 250 ISL21010DFH312Z-T BECA 1.25 Reel, 3k ISL21010DFH312Z-TK Reel, 1k ISL21010DFH312Z-T7A Reel, 250 ISL21010CFH315Z-TK BDRA 1.5 Reel, 1k ISL21010CFH315Z-T7A Reel, 250 ISL21010CFH320Z-TK BDSA 2.048 Reel, 1k ISL21010CFH320Z-T7A Reel, 250 ISL21010CFH325Z-TK BDTA 2.5 Reel, 1k ISL21010CFH325Z-T7A Reel, 250 ISL21010CFH330Z-TK BDVA 3.0 Reel, 1k ISL21010CFH330Z-T7A Reel, 250 ISL21010CFH333Z-TK BDWA 3.3 Reel, 1k ISL21010CFH333Z-T7A Reel, 250 ISL21010CFH341Z-TK BDYA 4.096 Reel, 1k ISL21010CFH341Z-T7A Reel, 250 ISL2101010EV1Z ISL21010DFH310Z Evaluation Board ISL2101012EV1Z ISL21010DFH312Z Evaluation Board ISL2101015EV1Z ISL21010CFH315Z Evaluation Board NOTES: 1. See TB347 for details about reel specifications. 2. These Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020. 3. For Moisture Sensitivity Level (MSL), see the ISL21010DFH310, ISL21010DFH312, ISL21010CFH315, ISL21010CFH320, ISL21010CFH325, ISL21010CFH330, ISL21010CFH333, ISL21010CFH341 device pages. For more information about MSL, see TB363. 4. The part marking is located on the bottom of the part. FN7896 Rev.7.00 Page 4 of 36 Sep 20, 2021 Document Outline Applications Features Related Literature Typical Application Circuit Pin Configuration Pin Descriptions Ordering Information Absolute Maximum Ratings Thermal Information Recommended Operating Conditions Electrical Specifications (ISL21010-10, VOUT = 1.024V) Electrical Specifications (ISL21010-12, VOUT = 1.25V) Electrical Specifications (ISL21010-15, VOUT = 1.5V) Electrical Specifications (ISL21010-20, VOUT = 2.048V) Electrical Specifications (ISL21010-25, VOUT = 2.5V) Electrical Specifications (ISL21010-30, VOUT = 3.0V) Electrical Specifications (ISL21010-33, VOUT = 3.3V) Electrical Specifications (ISL21010-41, VOUT = 4.096V) Typical Performance Characteristics Curves (VOUT = 1.024V) Typical Performance Characteristics Curves (VOUT = 1.25V) Typical Performance Characteristics Curves (VOUT = 1.5V) Typical Performance Characteristics Curves (VOUT = 2.048V) Typical Performance Characteristics Curves (VOUT = 2.5V) Typical Performance Characteristics Curves (VOUT = 3.0V) Typical Performance Characteristics Curves (VOUT = 3.3V) Typical Performance Characteristics Curves (VOUT = 4.096V) Applications Information Micropower Operation Board Mounting Considerations Board Assembly Considerations Noise Performance and Reduction Revision History Package Outline Drawing
